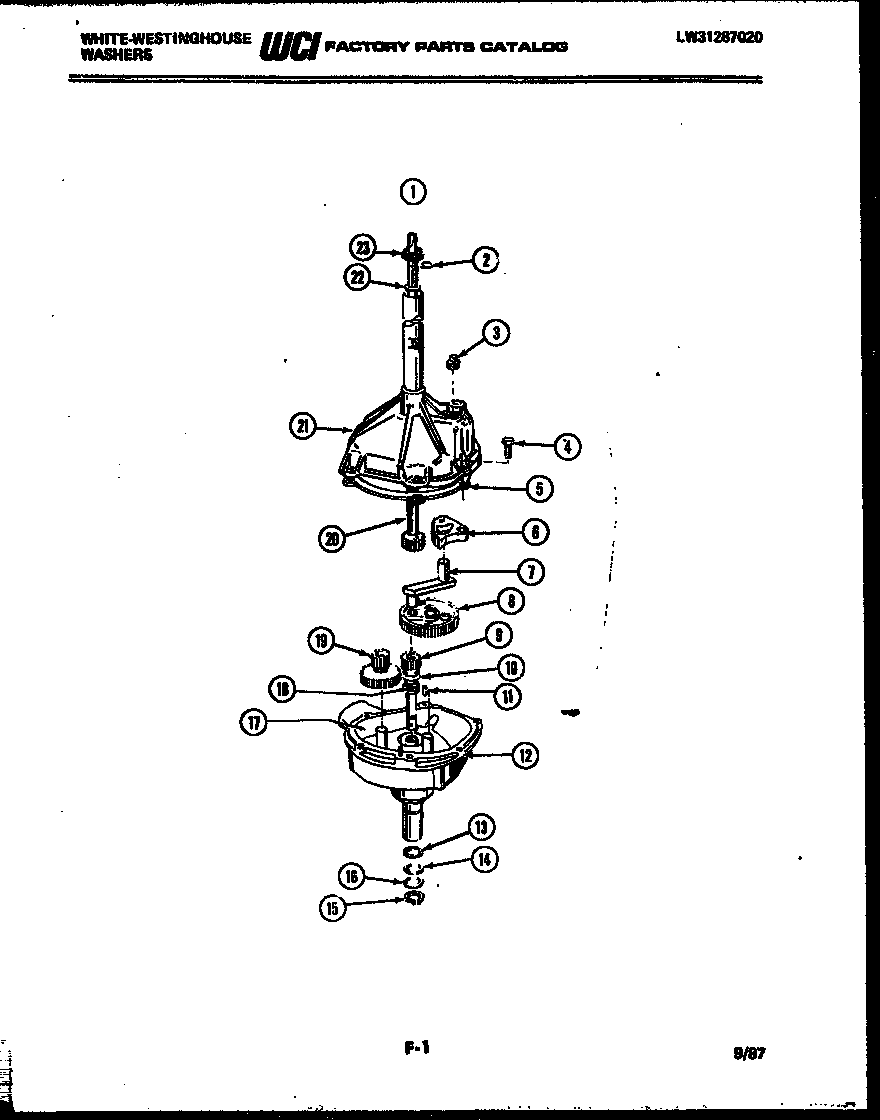

LA450JXD4 08 – TRANSMISSION PARTS

Products

Position	Product
1	134735700 Frigidaire Transmission Assembly
3	WCI F077061000
4	WCI F079688000
5	WCI F13089500
6	WCI F130405100
7	WCI F066078100
8	WCI F130404100
9	SHAFT, LOWER
11	WCI F077058000
12	HOUSING, LOWER
13	5303161173 Frigidaire Seal Assembly
14	WASHER, THRUST
15	WCI F068158000
16	WCI F077098000
17	OIL, TRANSMISSION, 1 QUART
18	WCI F077052000
19	WCI F130403100
20	WCI F140482000
21	HOUSING, UPPER
22	WCI F062568000
23	5303161307 Frigidaire Dryer Seal Assembly
