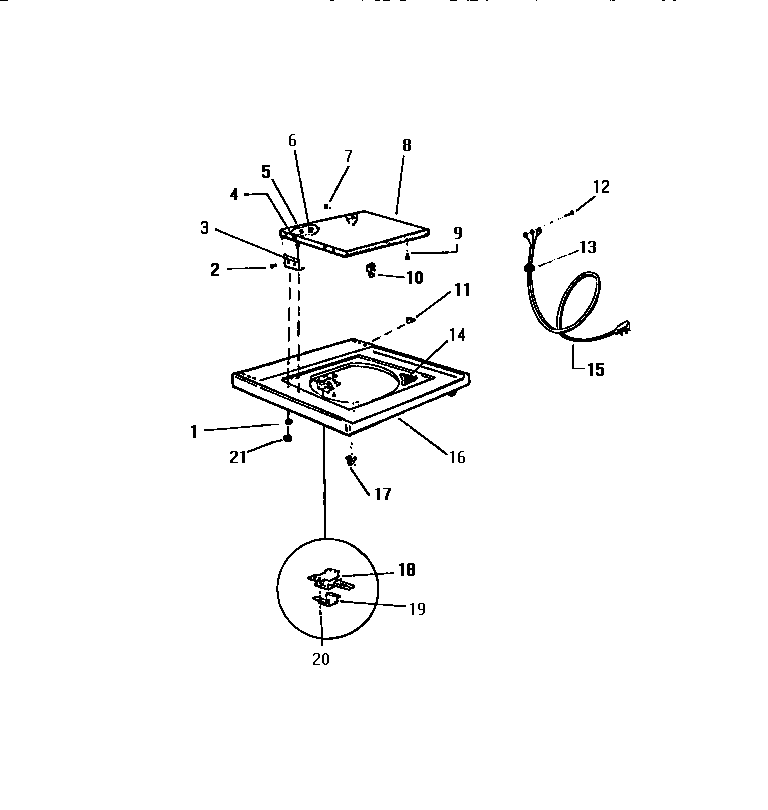

LA450JXF3 03 – TOP PANEL

Products

PositionProduct
3HINGE (2 REQ.)
4SCREW (2)
5SPACER
7WCI Q501589
8LID, COFE
9WCI Q13435
10WCI Q143172
11WCI Q503065
13WCI Q63137
14DISPENSER
15CORD, SERVICE
16WCI Q632930
17SPRING CATCH
18WCI Q165346
19SHIELD, LID LOCK
20SCREW (4)
21NUT (2)
