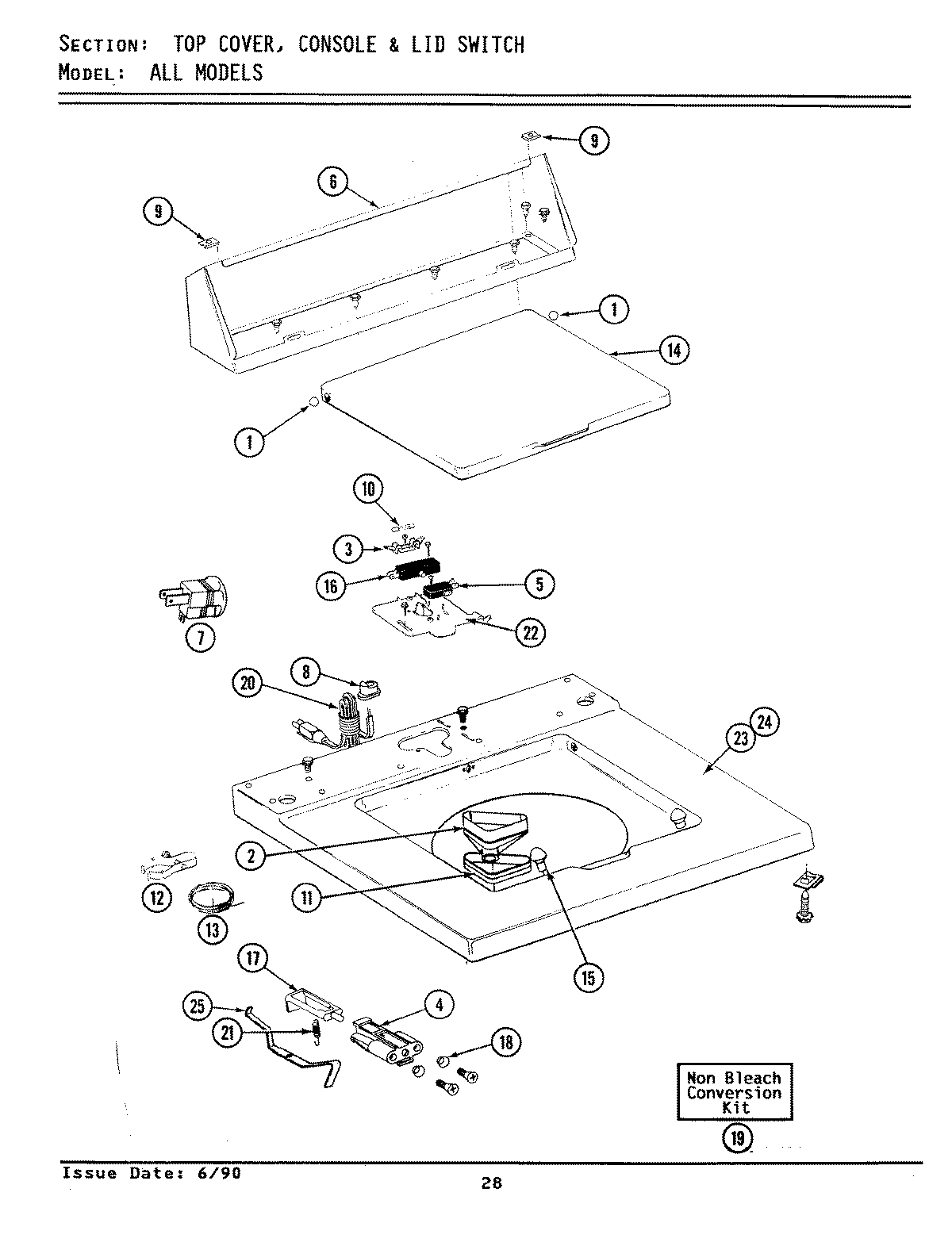

LA5000 06 – TOP COVER, CONSOLE & LID SWITCH

Products

Position	Product
1	WP211726 Whirlpool Ball Assembly
3	MAY 207167
3	MAY 215705
4	MAY 214279
4	MAY 910182
4	MAY 216256
5	MAY 912012
5	WP207166 Whirlpool CH Switch
6	MAY Y313559
6	MAY 205635L
6	WP90767 Whirlpool Screw
7	MAY Y201808
8	GROMMET
9	MAY 215075
10	MAY 207168
11	MAY 214436
12	MAY 301548
13	WP311155 Whirlpool Wire Assembly
14	MAY 212073L
15	WP212716 Whirlpool Lid Bumper
16	W10820036 Whirlpool Door Switch Kit
16	MAY 213501
17	MAY 215700
17	MAY 208591
18	MAY 211500
19	MAY 205997
20	MAY 204590
21	WP213720 Whirlpool Spring Assembly
22	SCREW
22	MAY Y215699
24	MAY 204445
24	MAY 210186
24	MAY 207172L
25	MAY 215704
