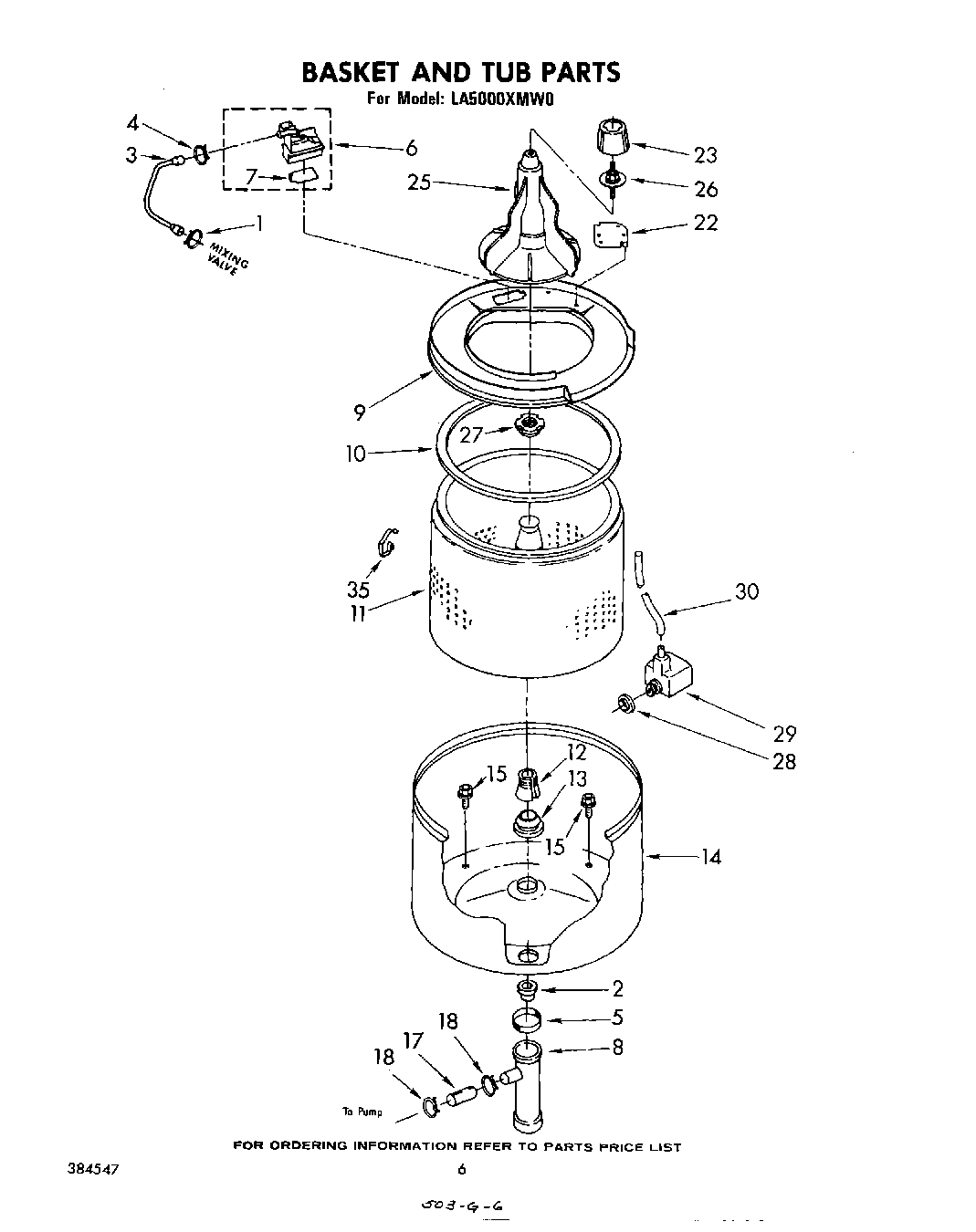

LA5000XMW0 05 – BASKET AND TUB

Products

PositionProduct
1WP596669 Whirlpool Hose Clamp
2Hose, Tub Outlet
3Hose, Water Inlet
5Clip, Hose
6Inlet, Water
7Flapper
8Manifold
9Ring & Filter, Tub (Includes Illus. 22)
10Seal, Tub Ring
11Basket
12Block, Drive
13W10814296 Whirlpool Washer Center Post Seal Gasket
14Tub
15Screw & Washer, Tub (4)
17Hose
18WP285655 Whirlpool Hose Clamp
22Plate, Snubber
23Cap, Agitator
25Agitator & Insert
26Stud, Agitator Shaft
27WP21366 Whirlpool Spanner Nut
28Seal
29Air Dome Assembly
30WP353244 Whirlpool Hose
35Clip, Tub Ring (4)
