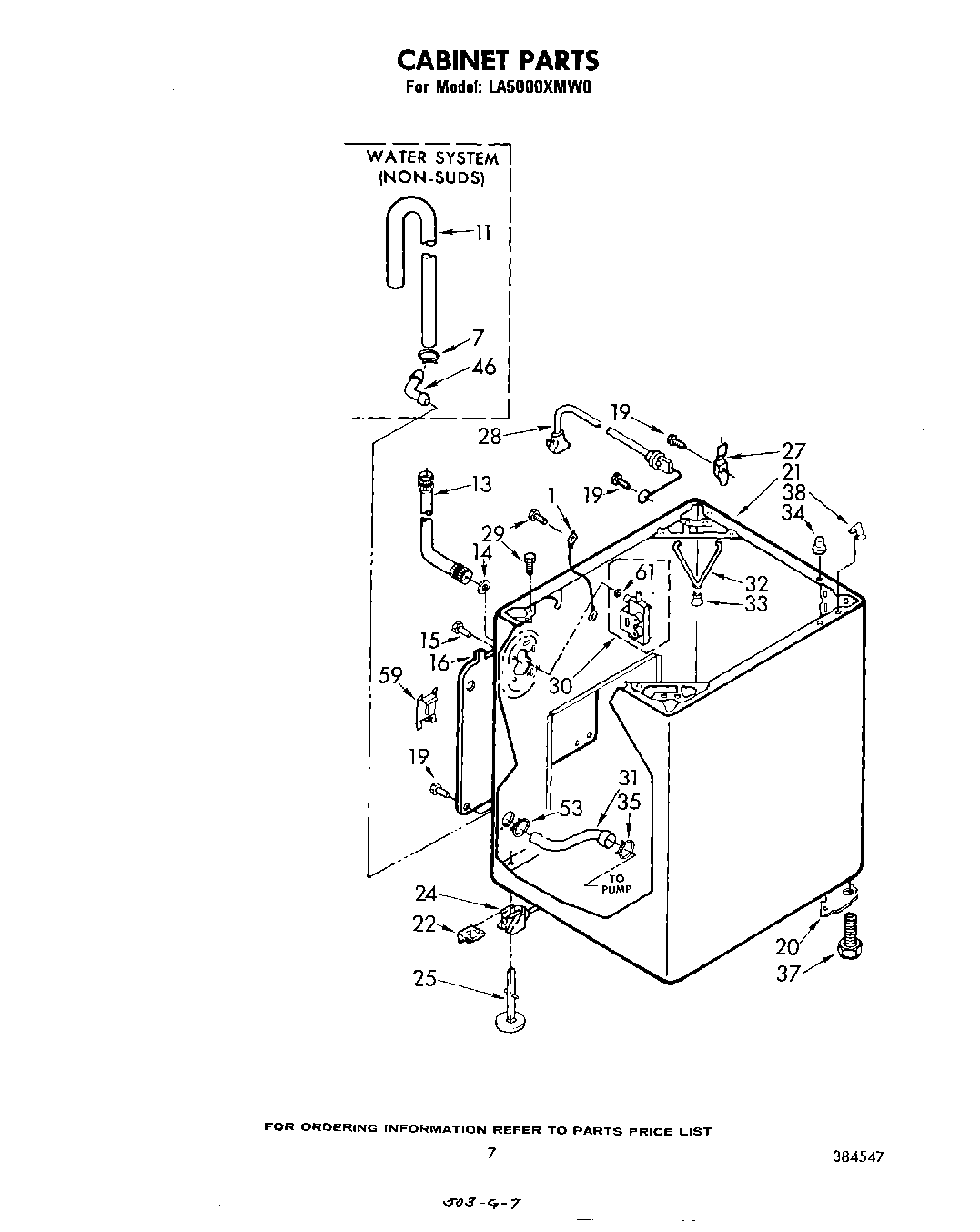

LA5000XMW0 06 – CABINET

Products

Position	Product
1	WPL 364089
7	WP356138 Whirlpool Hose Clamp
11	WP96743 Whirlpool Hose
13	WP89503 Whirlpool Washer Fill Hose
14	WP16123 Whirlpool Washer
15	WP3351614 Whirlpool Screw
16	Panel, Rear
20	Plate, Gusset
21	Cabinet
22	WP359364 Whirlpool Clip
24	Link, Leveling
25	WP358594 Whirlpool Leveling Feet
27	Hinge, R.H.
27	Hinge, L.H.
28	Cord, Power (60 Hz.)
29	SCREW
30	Valve, Mixing (358277) (Alt.) (358971) (Alt.) (Serviced Only As Complete Assemblies)
31	Hose, Pump Discharge
32	Spring, Snubber
33	Pad, Snubber
34	Locator, Top
35	WP285655 Whirlpool Hose Clamp
37	WP367594 Whirlpool Leveling Feet
38	WP18776 Whirlpool Lock
46	Connector, Hose
59	Plug, Cabinet
61	WP96160 Whirlpool Washer Inlet Valve Screen
