LA500EXD3 03 – TOP PANEL

LA500EXD3 03 – TOP PANEL

Written by

in

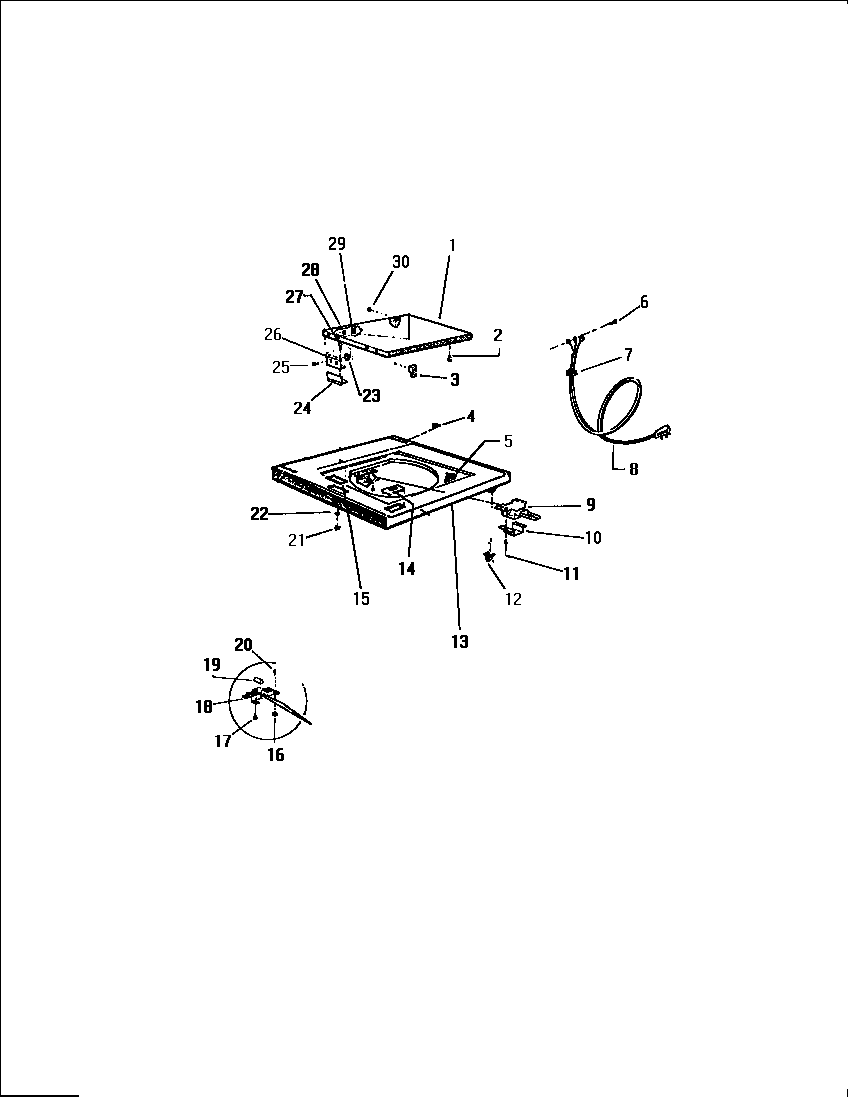

LA500EXD3 03 – TOP PANEL

Products

Position	Product
1	WCI Q127621
2	WCI Q13435
3	WCI Q143172
4	WCI Q503065
5	DISPENSER
7	WCI Q63137
8	CORD, SERVICE
9	WCI Q165346
10	SHIELD, LID LOCK
11	SCREW (4)
12	SPRING CATCH
13	PNL. TOP – ALMD
23	WCI Q409309
24	WCI Q93739
26	HINGE (2 REQ.)
27	SCREW (2)
28	SPACER
29	NUT (2)
30	WCI Q501589
