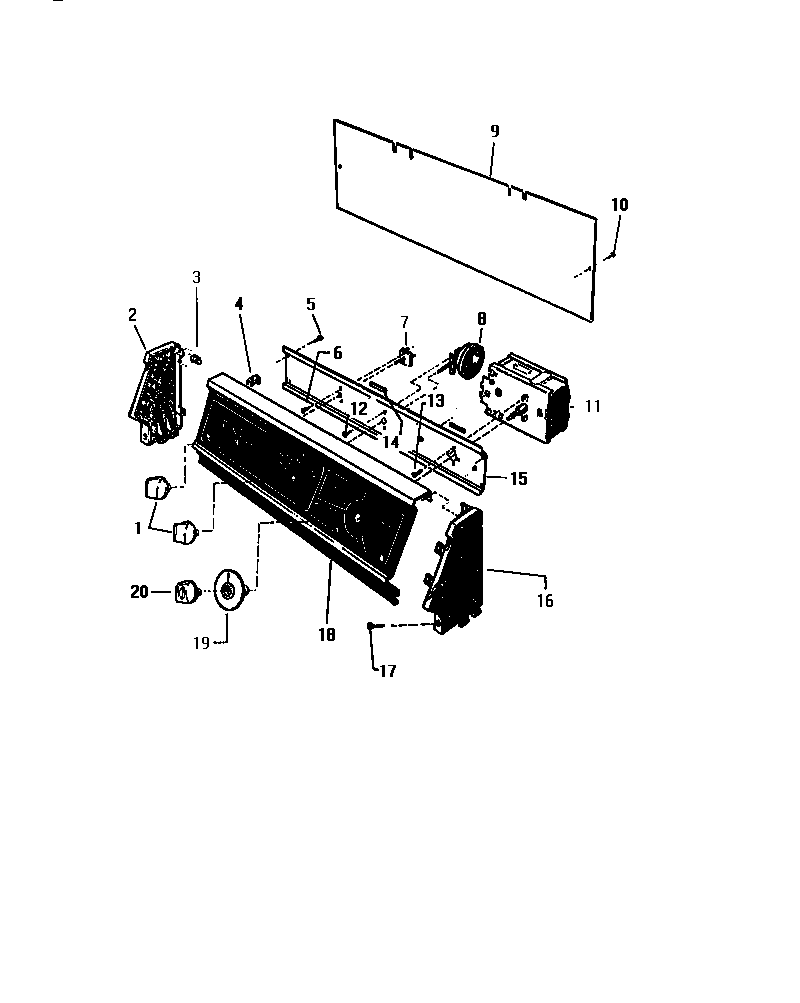

LA500JXV3 02 – CONSOLE & CONTROLS

Products

Position	Product
1	KNOB, SWITCH, SELECTOR
2	WCI Q616731
3	SPEEDNUT (8)
4	WCI Q504803
6	SCREW (2)
7	SWITCH, TEMPERATURE
8	WCI Q633732
9	WCI Q616741
10	WCI Q405802
11	WCI Q634541
12	SCREW (4)
13	WCI Q503033
14	WCI Q500925
15	WCI Q616711
16	WCI Q616732
17	WCI Q504533
18	WCI Q634151
19	WCI Q621222
20	WCI Q621212
