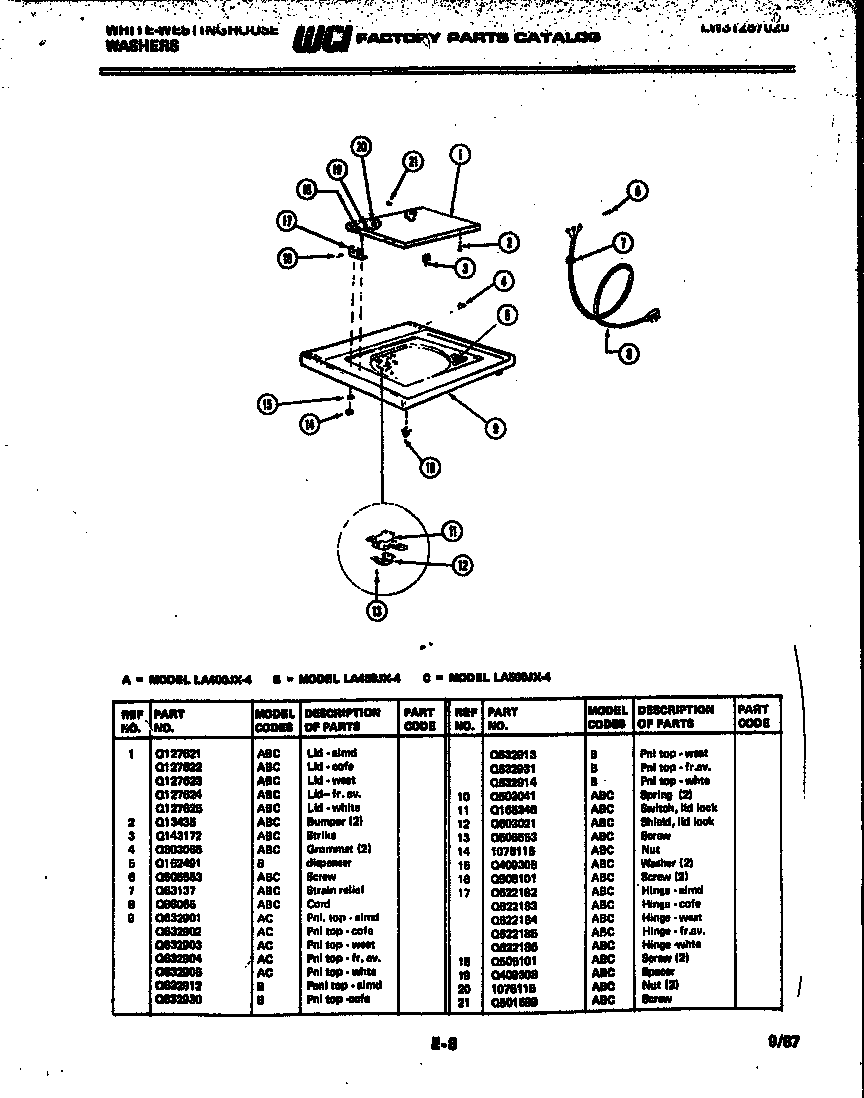

LA500JXW4 03 – TOP AND SWITCH PARTS
Written by
in
LA500JXW4 03 – TOP AND SWITCH PARTS
Products
| Position | Product |
|---|---|
| 1 | WCI Q127625 |
| 2 | WCI Q13435 |
| 3 | WCI Q143172 |
| 4 | WCI Q503065 |
| 7 | WCI Q63137 |
| 8 | CORD, SERVICE |
| 10 | SPRING CATCH |
| 11 | WCI Q165346 |
| 12 | SHIELD, LID LOCK |
| 13 | SCREW (4) |
| 17 | HINGE, WHITE |
| 18 | SCREW (2) |
| 19 | SPACER |
| 20 | NUT (2) |
| 21 | WCI Q501589 |
