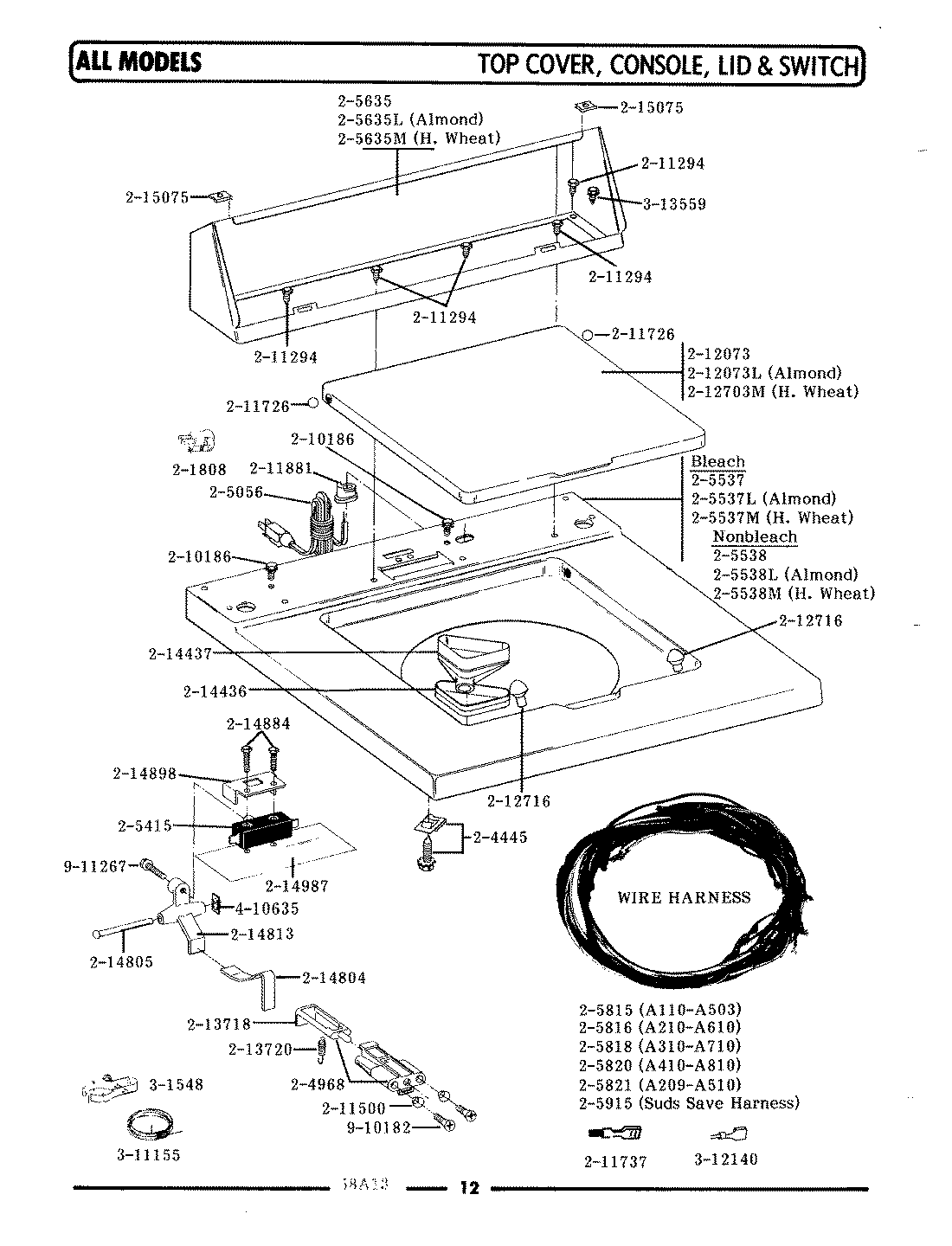

LA510 05 – TOP COVER, CONSOLE & LID SWITCH

Products

Position	Product
1	MAY 205997
2	MAY Y201808
3	MAY 204445
4	PLUNGER & BRACKET ASSEMBLY--W
5	MAY 205056
6	W10820036 Whirlpool Door Switch Kit
8	MAY 205538L
11	MAY 205635L
12	MAY 205821
17	MAY 210186
18	WP90767 Whirlpool Screw
19	MAY 211500
20	MAY 211737
21	WP211726 Whirlpool Ball Assembly
22	GROMMET
26	MAY 212073L
27	WP212716 Whirlpool Lid Bumper
28	MAY 213718
29	WP213720 Whirlpool Spring Assembly
30	MAY 214805
31	MAY 214804
32	MAY 214813
33	MAY 214884
34	MAY 214898
36	MAY 215075
37	MAY 214987
38	MAY 301548
41	MAY Y313559
46	MAY 911267
47	WP311155 Whirlpool Wire Assembly
48	MAY 410635
49	MAY Y312140
50	MAY 910182
