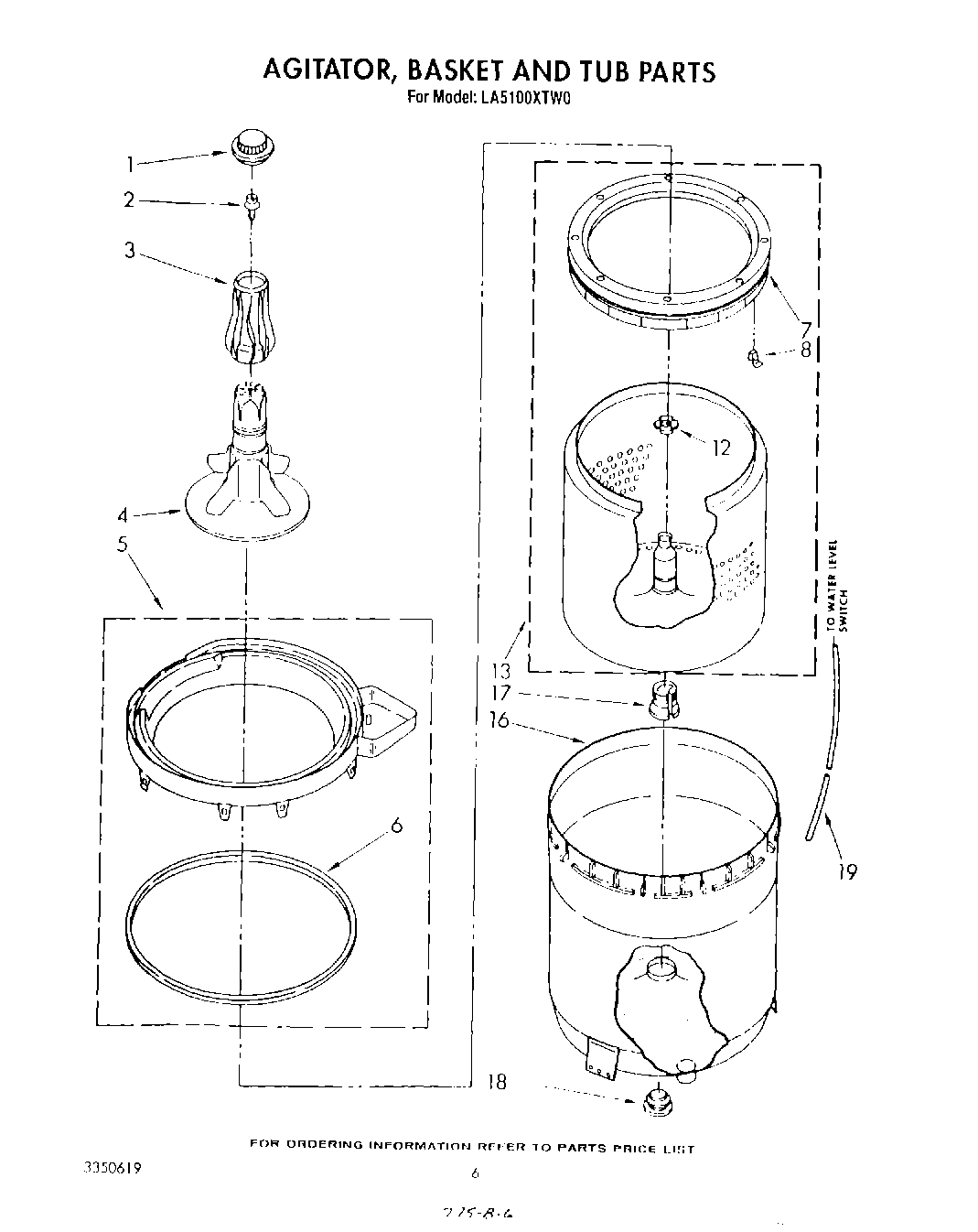

LA5100XTM0 04 – AGITATOR, BASKET AND TUB

LA5100XTM0 04 – AGITATOR, BASKET AND TUB

Written by

in

LA5100XTM0 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP63753 Whirlpool Filter
4387838 Whirlpool Washer Agitator with Auger Assembly
5Tub Ring & Gasket
6WP3359586 Whirlpool Tub Seal
7WP8519815 Whirlpool Washer Balance Ring Clip
8WP3956205 Whirlpool Balance Ring
12WP21366 Whirlpool Spanner Nut
13Basket & Balance Ring
16Tub
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
