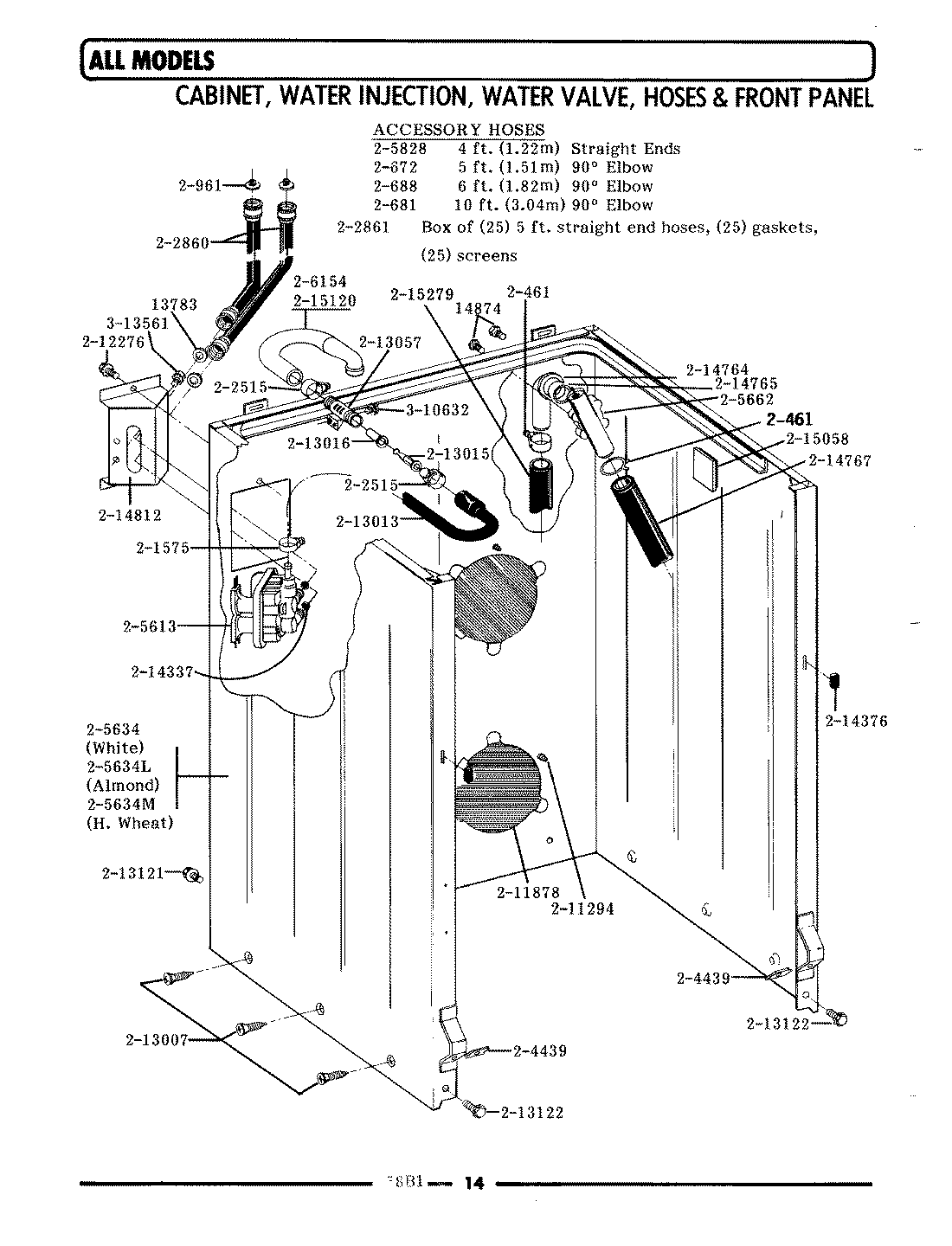

LA510S 02 – CBNT,WATER INJ & VALVE,HOSES & FRT PANEL

LA510S 02 – CBNT,WATER INJ & VALVE,HOSES & FRT PANEL

Written by

in

LA510S 02 – CBNT,WATER INJ & VALVE,HOSES & FRT PANEL

Products

PositionProduct
1MAY Y013783
2WPY014874 Whirlpool Screw
4WP76314 Whirlpool Fill Hose
5MAY 200681
7MAY Y200832
8MAY 200961
9WP596669 Whirlpool Hose Clamp
11202860 Whirlpool Inlet Hose 5 FT
12MAY 202861
13MAY 203237
14SCREW & FSTNER ASSY (FT. PNL)
15205613 Whirlpool Washer Water Inlet Valve
17MAY 205634L
18MAY 205662
19MAY 205828
20MAY 206103
21MAY 206154
22MAY 211149
23WP90767 Whirlpool Screw
24MAY 211878
25MAY 212276
26MAY 212982
28MAY 212998L
29213007 Whirlpool Screw #12
30WP213013 Whirlpool Injector Hose
31WP213015 Whirlpool Nozzle Injector Tube
32WP216201 Whirlpool Rubber Injector Valve
33MAY 213057
34WPW10346892 Whirlpool Screw
35WP27001200 Whirlpool Screw
36MAY 213846
37WP96160 Whirlpool Washer Inlet Valve Screen
38MAY 214376
39MAY 214764
40WP214765 Whirlpool Gasket
41MAY 214767
42MAY 214768
43MAY 214812
44MAY 200461
45MAY 215058
46MAY 215120
47MAY Y310632
48MAY Y313561
