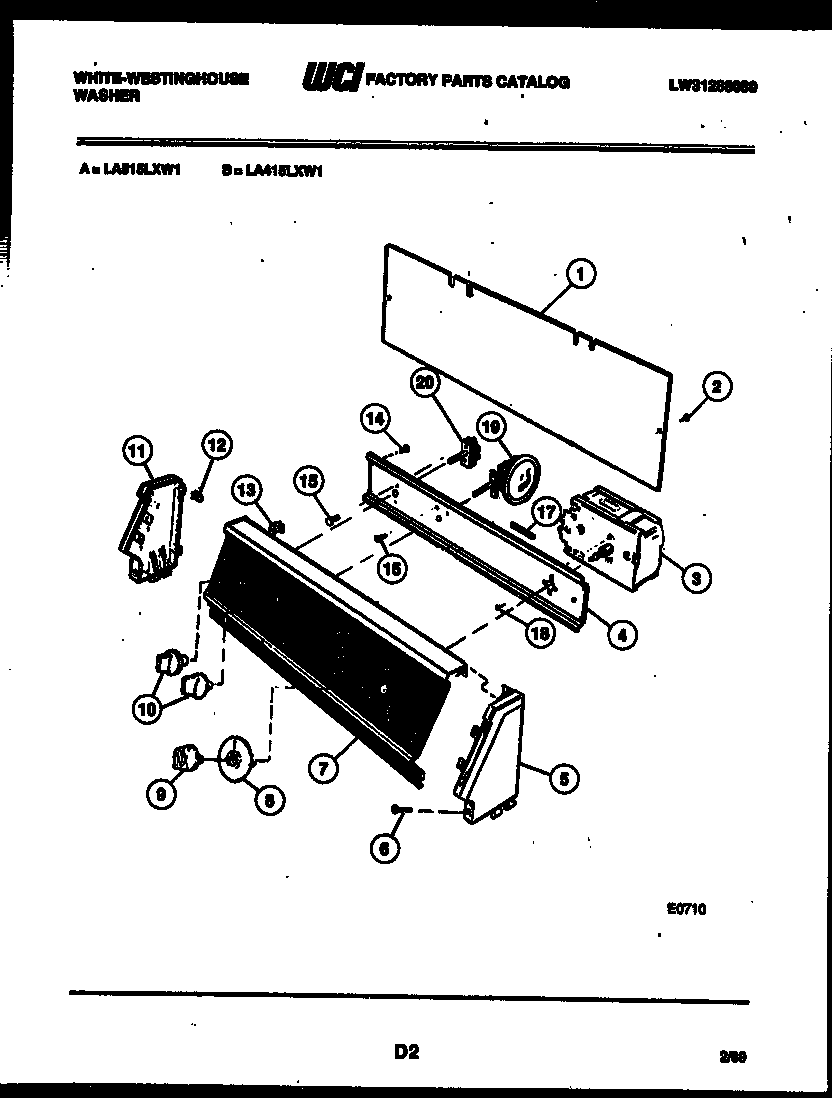

LA515LXD1 02 – CONSOLE AND CONTROL PARTS

Written by

Products

Position	Product
1	COVER-BACK
2	5303300265 Frigidaire Oven Screw
3	WCI Q000634541
4	WCI Q000616711
5	WCI Q000616732
6	SCREW (2)
7	WCI Q000634151
8	WCI Q000621221
9	WCI Q000621212
10	WCI Q000633722
11	WCI Q000616731
12	WCI 3281199
13	CLIP-GROUNDING
14	SCREW (2)
15	SCREW-TEMP SELECT (NON-ILLUSTRATED)
17	CORK
18	SCREW (2)
19	WCI 3161318
20	WCI 08010902
