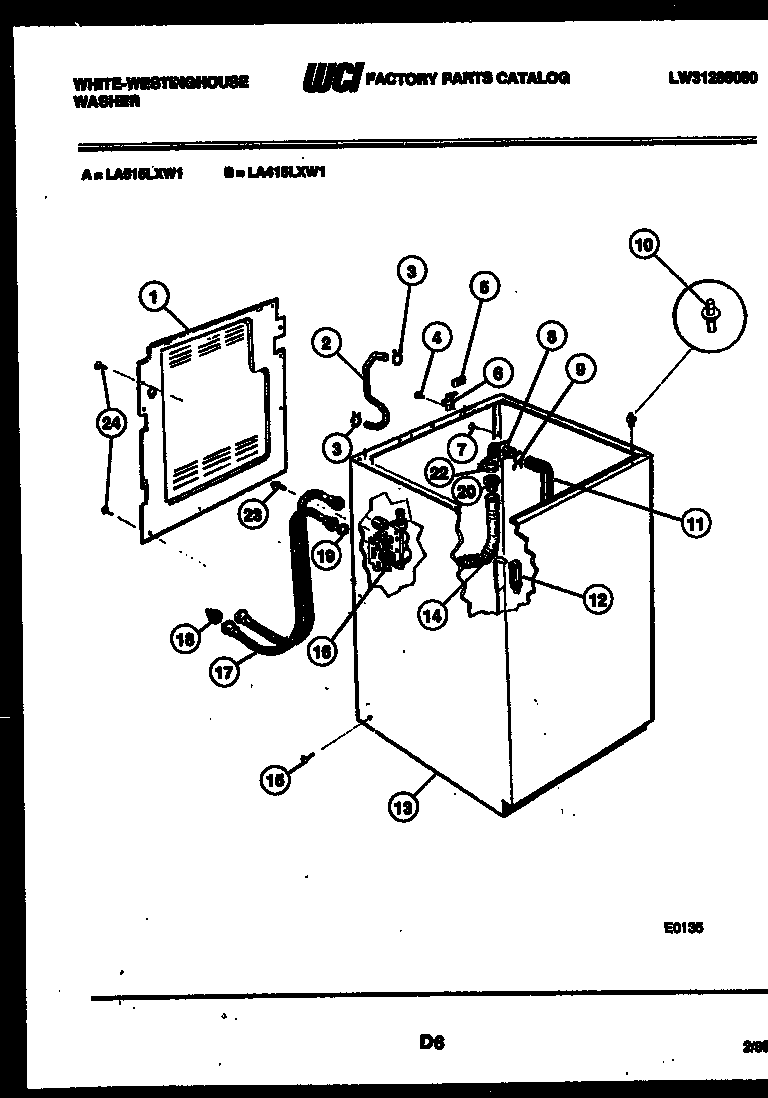

LA515LXD1 04 – CABINET PARTS

Products

Position	Product
1	WCI Q000171312
2	WCI 08001811
3	CLAMP
4	SCREW (4)
5	WCI 08001727
6	WCI Q000017461
8	WCI Q000604401
9	WCI 3161350
10	WCI Q000152431
11	WCI Q000158314
12	WCI 08001780
13	WCI 08001930
13	WCI 3161353
14	WCI Q000165347
15	WCI Q000504382
16	134190200 Frigidaire Washer Water Valve
17	5303912532 Frigidaire Hose Inlet 60"
18	5300019801 Frigidaire Hose Filter Washer
19	5303161296 Frigidaire Washer-Inlet Hose (1Piece)
20	WCI Q000017891
22	WCI Q000504921
23	SCREW
24	WCI Q000505553
