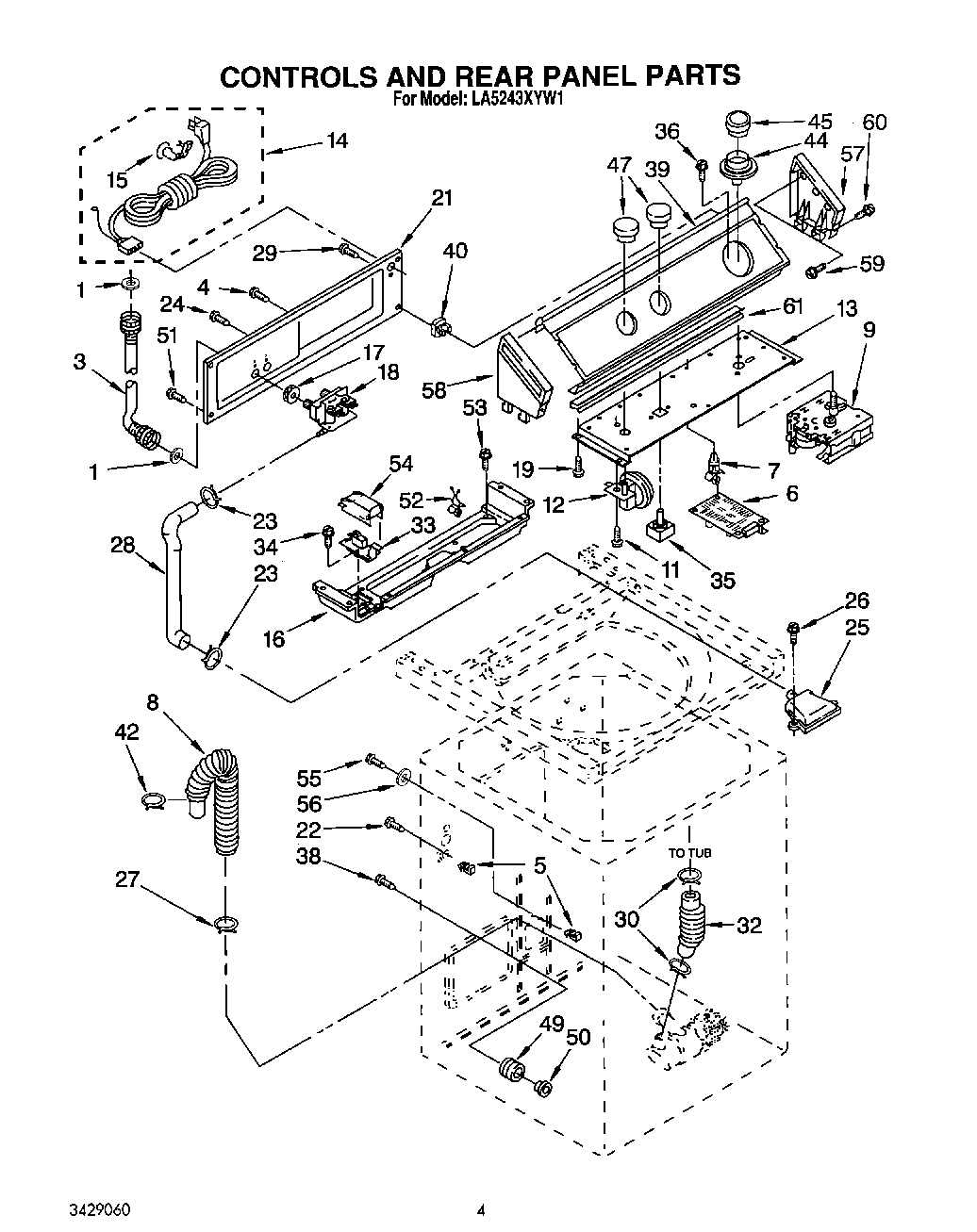

LA5243XYW1 03 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
3	WP89503 Whirlpool Washer Fill Hose
4	Screw, Console Cover (4)
5	Clip, Harness
6	Board, Control
7	Stand Off
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
9	Timer, Control (60 Hz.)
12	Switch, Water Level
13	Bracket, Control
14	Cord, Power
15	Strain Relief, Power Cord
16	Pan, Console
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	285805 Whirlpool Washer Water Inlet Valve
21	Cover, Console Rear
23	WP596669 Whirlpool Hose Clamp
25	Water Inlet (Upper)
25	Water Inlet (Lower)
26	Screw, Solenoid Mtg. (4)
27	WP356138 Whirlpool Hose Clamp
28	Hose, Valve To Water Inlet
29	WP3351614 Whirlpool Screw
30	WP616099 Whirlpool Clamp
32	Hose, Pump To Tub
33	Switch, Lid
34	WP3400872 Whirlpool Screw
35	Switch, Water Temperature
36	WP3428970 Whirlpool Refrigerator Screw
38	Screw, Pump Mtg. (2)
39	Panel, Console
40	WP689559 Whirlpool Nut
42	WP3357331 Whirlpool Clamp
44	WPL 64140
45	WPL 3347726
47	Knob, Control
49	Grommet, Pump
50	Spacer, Pump (3)
51	Screw
52	Clip, Coil (2)
53	Screw, Top To Cabinet (2)
54	Shield, Lid Switch
55	Screw, Balance Ring (4)
56	Washer
57	WPL 63795
58	Cap, End (L.H.)
59	Screw (4)
60	WP388326 Whirlpool Screw
61	WPL 3429707
