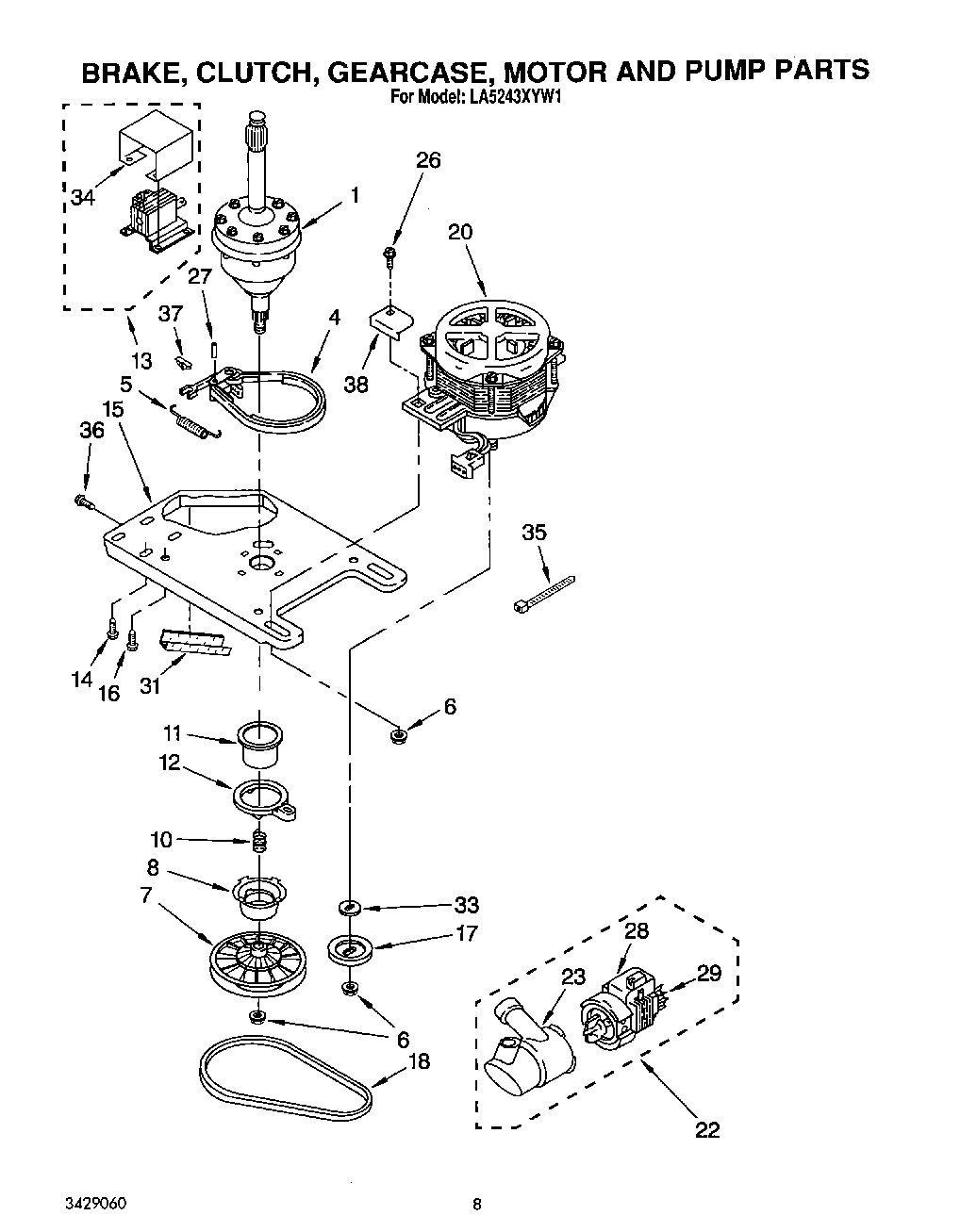

LA5243XYW1 06 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

Products

Position	Product
1	Gearcase Assembly
4	Brake Band
5	Spring, Brake
6	Nut, Washer Locking
7	Pulley, Splutch
8	Cam, Splutch
10	Spring, Splutch
11	Slider, Splutch
12	Cam Ring, Splutch
13	Solenoid
14	Screw, Solenoid Mtg. (4)
15	Plate, Motor Mount
16	Bolt, Motor Plate (4)
17	Pulley, Motor
18	Drive Belt
20	Motor, Main Drive (Includes Items 33, 17, & 6)
22	Pump (Complete)
23	Housing, Pump
26	Bolt, Motor Mounting (2)
27	Pin, Brake Band
28	Pump
29	Blade, Fan
31	Protector, Edge
33	Washer, Pulley
34	Solenoid Shield, Top
35	WP2205813 Whirlpool Refrigerator Wire Tie
36	WP3351614 Whirlpool Screw
37	Lock, Solenoid
38	Shield, Motor Connector
