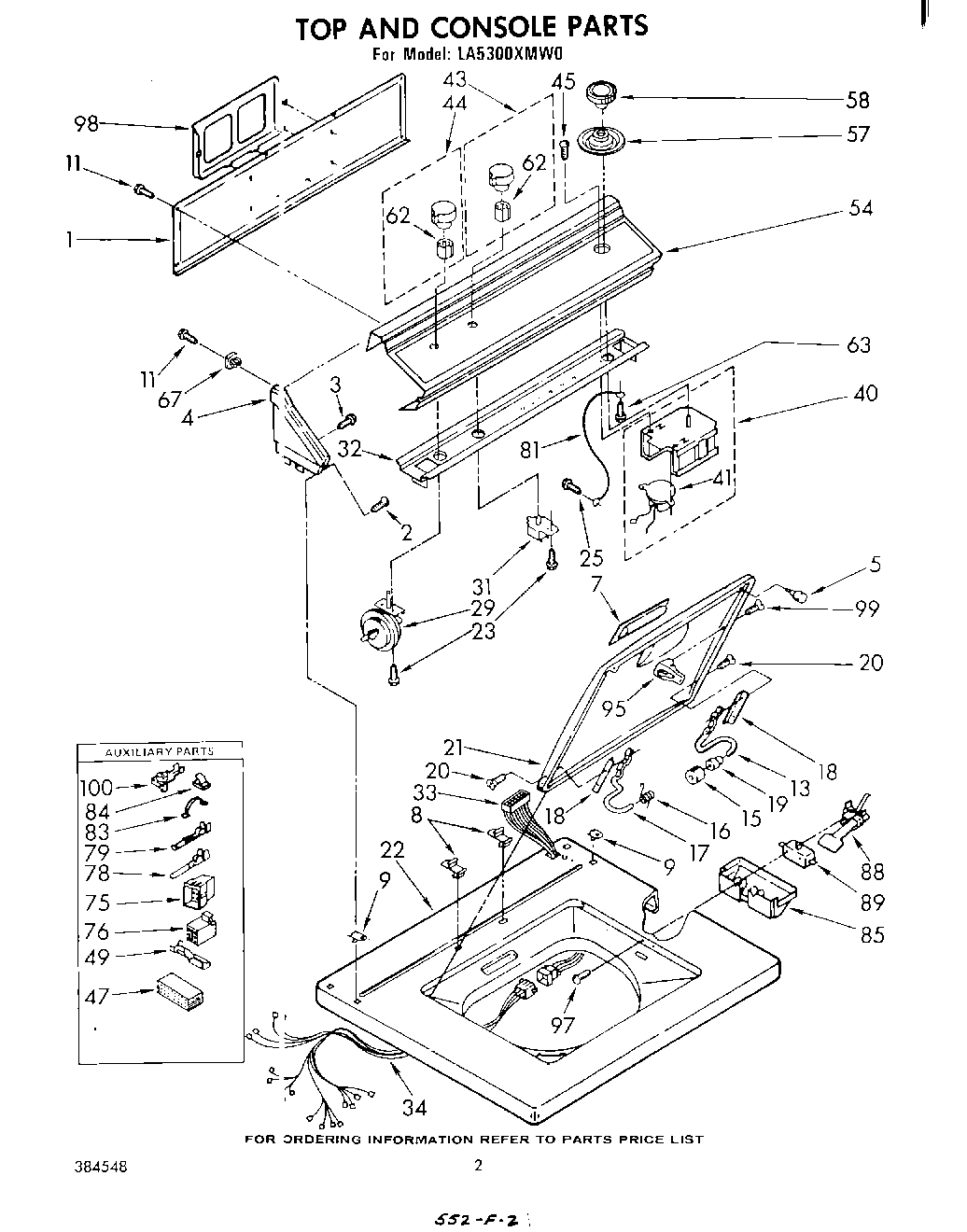

LA5300XMW0 02 – TOP AND CONSOLE

LA5300XMW0 02 – TOP AND CONSOLE

Written by

in

LA5300XMW0 02 – TOP AND CONSOLE

Products

Position	Product
1	Panel, Rear Console
2	Screw, 8-18 x 1 (2)
3	WPL 355326
4	Cap, End L.H. (White)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End L.H. (Golden Harvest)
4	Cap, End (L.H.) (Toast)
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (Platinum)
4	Cap, End L.H. (Toast)
4	Cap, End (L.H.) (Platinum Cap, End (R.H.))
5	WP9724509 Whirlpool Bumper
7	Handle, Lid (Toast)
7	Handle, Lid (Golden Harvest)
7	Handle, Lid (Platinum)
7	Handle, Lid (Almond)
7	Handle, Lid (White)
8	Stop, Push-In Top
9	Nut, Push-In (2)
11	W11693756 Whirlpool Screw Assembly
13	WP91770 Whirlpool Hinge
15	Bumper, Lid Hinge
16	Spring, Hinge
17	Hinge, L.H.
18	WP21097 Whirlpool Pad
19	WP21258 Whirlpool Washer Lid Hinge Bearing
20	SCREW
21	Lid (Platinum)
21	Lid (Golden Harvest)
21	Lid (Almond)
21	Lid (White)
21	Lid (Toast)
22	Top (Platinum)
22	Top (Golden Harvest)
22	Top (White)
22	Top (Toast)
22	Top (Almond)
23	WP90767 Whirlpool Screw
25	WP3351614 Whirlpool Screw
29	Switch, Water Level (Alternate)
29	Switch, Water Level (Alternate)
29	Switch, Water Level
31	Switch, Water Temperature (Alt.)
31	Switch, Water Temperature (Alt.)
31	Switch, Water Temperature 358934 (Alt.) 358935 (Alt.)
32	Bracket, Control
33	Harness, Console
34	Harness, Cabinet
40	Timer, 60 Hz.
40	Timer, 60 Hz. Mallory (Alt.)
40	Timer, 60 Hz. C.C.A. (Alt.)
40	Use W/C.C.A. Timer
40	Motor, Timer 60 Hz.
43	Knob, Water Temperature
44	Knob Assembly, Water Level
45	WP356418 Whirlpool Screw
47	W10876590 Whirlpool Connector
49	Terminal, Female
54	WPL 384763
57	Dial, Timer
58	Knob, Timer
62	WP688805 Whirlpool Spring Clip
63	SCREW
67	WP689559 Whirlpool Nut
75	Cap, Terminal (Console Harness)
76	Plug, Terminal (Cabinet Harness)
78	WP596797 Whirlpool Terminal
79	WP94614 Whirlpool Terminal
81	3184020 Whirlpool Oven Wire
83	8528351 Whirlpool Clip
84	WP90016 Whirlpool Clip
85	WP359231 Whirlpool Shield
88	Switch Actuator Assembly
89	W10820036 Whirlpool Door Switch Kit
95	Strike, Lid Switch
97	Screw & Washer, Lid Switch (2)
98	Rack, Literature
99	Screw & Washer
100	WPL 357695
