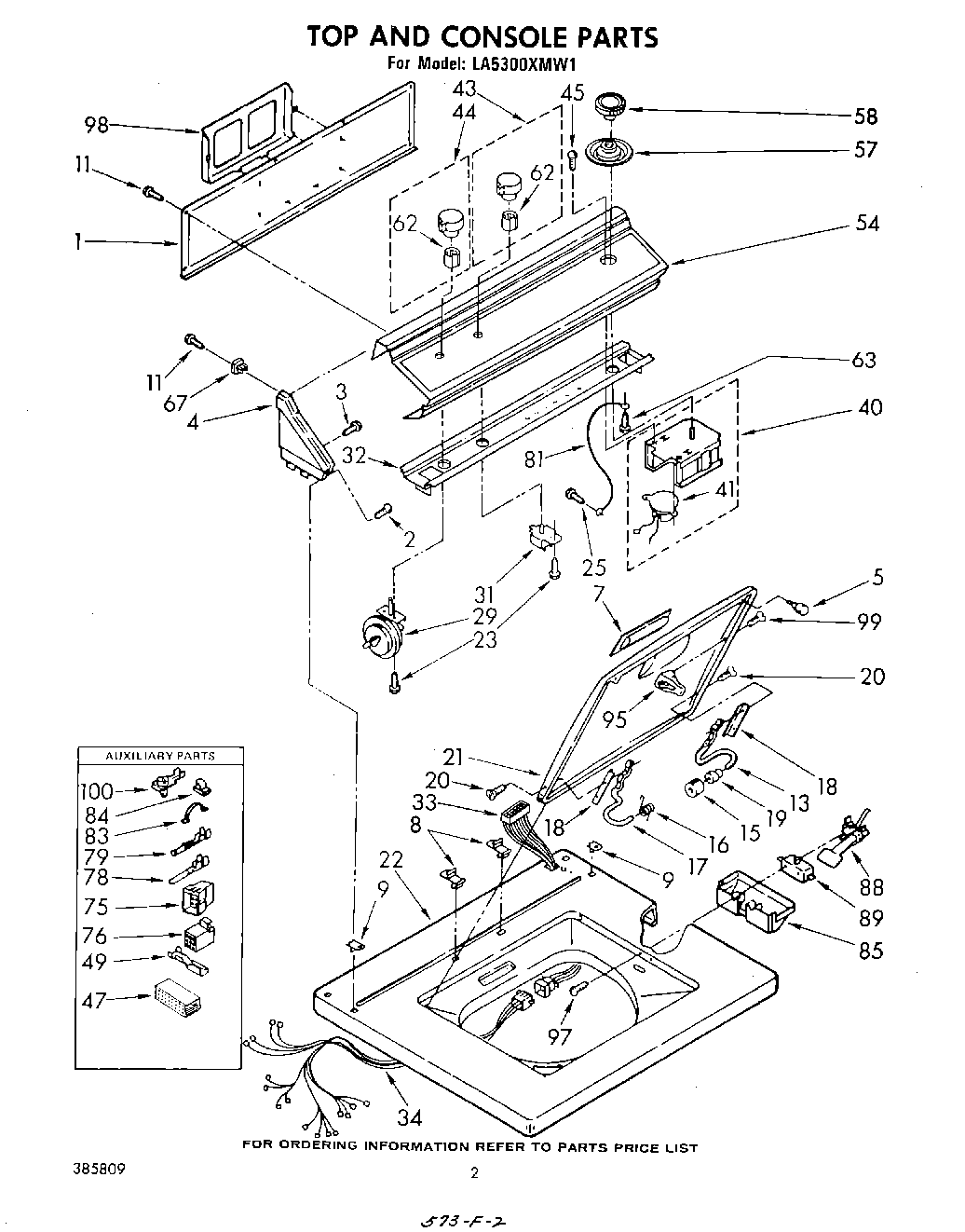

LA5300XMW1 02 – TOP AND CONSOLE

LA5300XMW1 02 – TOP AND CONSOLE

Written by

in

LA5300XMW1 02 – TOP AND CONSOLE

Products

PositionProduct
1Panel, Rear Console
2Screw, 8-18 x 1 (2)
3WPL 355326
4Cap, End L.H. (Golden Harvest)
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End (L.H.) (White)
4Cap, End L.H. (White)
4Cap, End L.H. (Almond Cap, End R.H.)
5WP9724509 Whirlpool Bumper
7Handle, Lid (Golden Harvest)
7Handle, Lid (Almond)
7Handle, Lid (White)
8Stop, Push-In Top
9Nut, Push-In (2)
11W11693756 Whirlpool Screw Assembly
13WP91770 Whirlpool Hinge
15Bumper, Lid Hinge
16Spring, Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
21Lid (Almond)
21Lid (White)
21Lid (Golden Harvest)
22Top (Almond)
22Top (White)
22Top (Golden Harvest)
23WP90767 Whirlpool Screw
25WP3351614 Whirlpool Screw
29Switch, Water Level (Alternate)
29Switch, Water Level (Alternate)
29Switch, Water Level
31Switch, Water Temperature 358934 (Alt.) 358935 (Alt.)
31Switch, Water Temperature (Alt.)
31Switch, Water Temperature (Alt.)
32Bracket, Control
33Harness, Console
34Harness, Cabinet
40Use W/C.C.A. Timer
40Timer, 60 Hz. C.C.A. (Alt.)
40Timer, 60 Hz. Mallory (Alt.)
40Motor, Timer 60 Hz.
40Timer, 60 Hz.
43Knob, Water Temperature
44Knob Assembly, Water Level
45WP356418 Whirlpool Screw
47W10876590 Whirlpool Connector
49Terminal, Female
54WPL 384763
57Dial, Timer
58Knob, Timer
62WP688805 Whirlpool Spring Clip
63SCREW
67WP689559 Whirlpool Nut
75Cap, Terminal (Console Harness)
76Plug, Terminal (Cabinet Harness)
78WP596797 Whirlpool Terminal
79WP94614 Whirlpool Terminal
813184020 Whirlpool Oven Wire
838528351 Whirlpool Clip
84WP90016 Whirlpool Clip
85WP359231 Whirlpool Shield
88Switch Actuator Assembly
89W10820036 Whirlpool Door Switch Kit
95Strike, Lid Switch
97Screw & Washer, Lid Switch (2)
98Rack, Literature
99Screw & Washer
100WPL 357695
