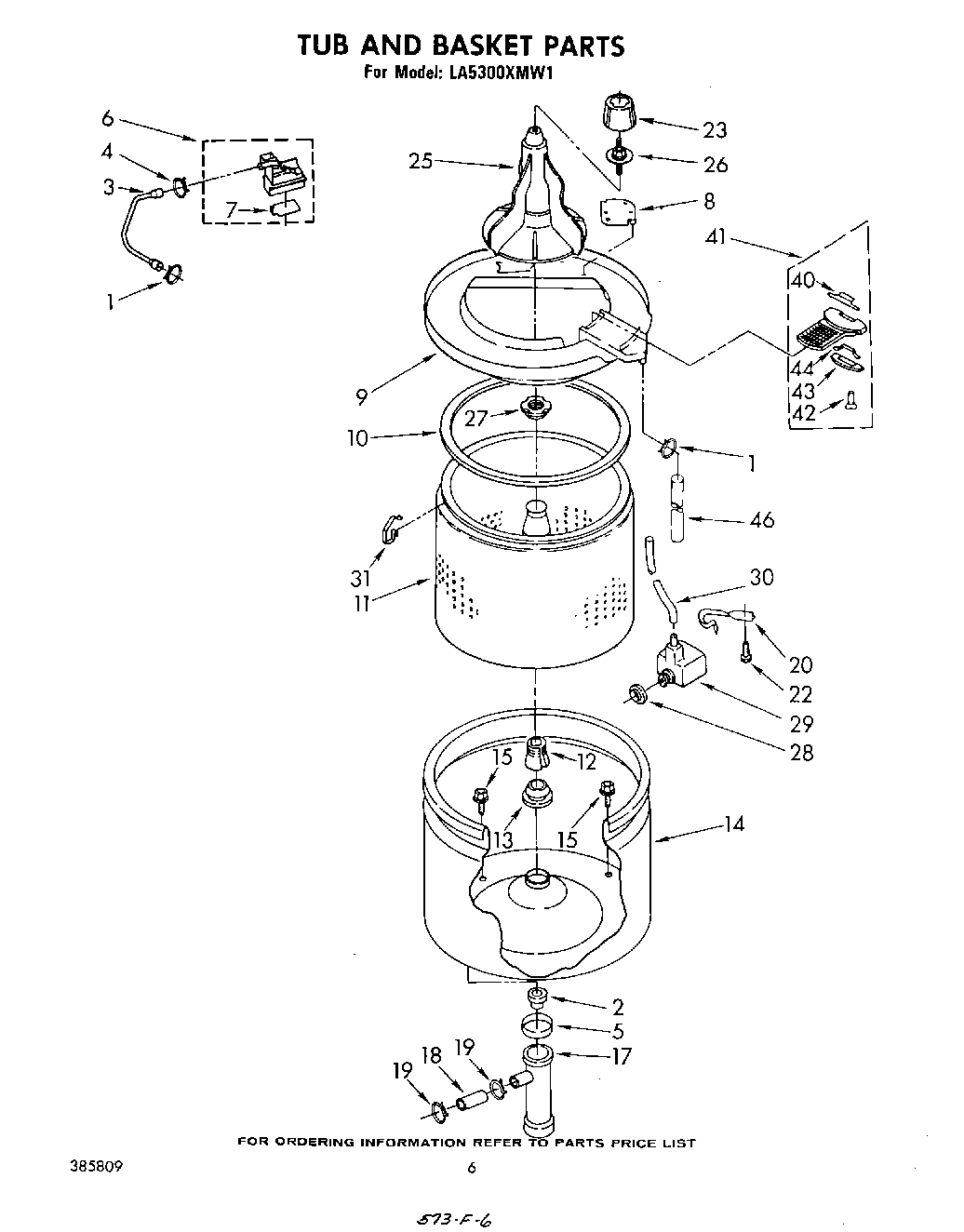

LA5300XMW1 05 – TUB AND BASKET

Products

Position	Product
1	WP596669 Whirlpool Hose Clamp
2	Hose, Tub Outlet
3	Hose, Water Inlet
5	Clip, Hose
6	Inlet, Water
7	Flapper
8	Plate, Snubber
9	Ring & Filter, Tub (Includes Illus. 8 & 41)
10	Seal, Tub Ring
11	Basket
12	Block, Drive
13	W10814296 Whirlpool Washer Center Post Seal Gasket
14	Tub
15	Screw & Washer, Tub (4)
17	Manifold
18	Hose
19	WP285655 Whirlpool Hose Clamp
20	Bracket, Hose
22	W11573574 Whirlpool Screw
23	Cap, Agitator
25	Agitator
26	Stud, Agitator Shaft
27	WP21366 Whirlpool Spanner Nut
28	Seal
29	Air Dome Assembly
30	WP353244 Whirlpool Hose
31	Clip, Tub Ring (4)
40	Latch
41	Filter
42	Screw (2)
43	Retainer
44	Spring
46	Hose, Pump To Filter
