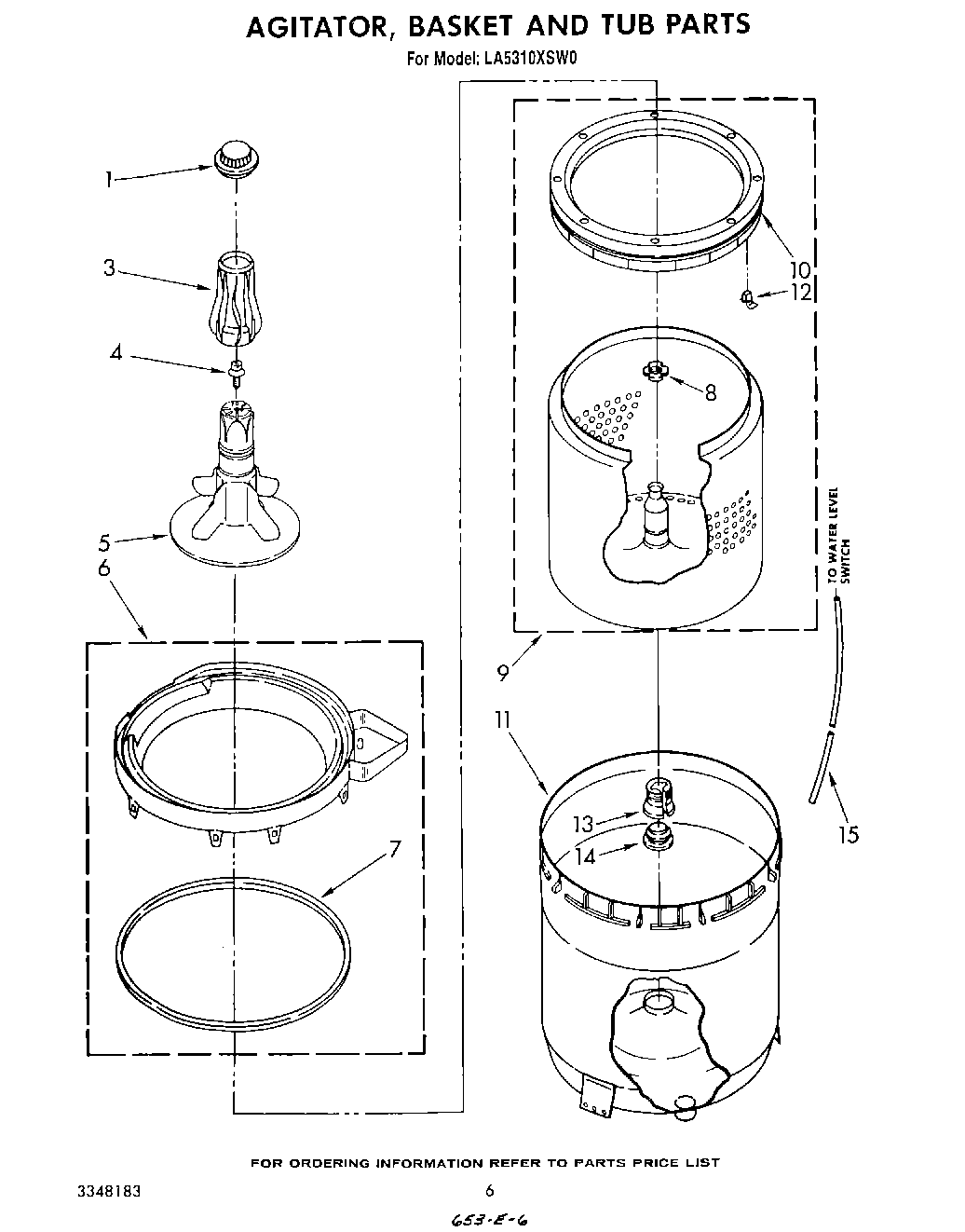

LA5310XSW0 04 – AGITATOR, BASKET AND TUB

LA5310XSW0 04 – AGITATOR, BASKET AND TUB

Written by

in

LA5310XSW0 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
3WP63753 Whirlpool Filter
4WP358237 Whirlpool Agitator Bolt
5387838 Whirlpool Washer Agitator with Auger Assembly
6Tub Ring & Gasket
7WP3359586 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9Basket & Balance Ring
10WP3956205 Whirlpool Balance Ring
11Tub
12WP8519815 Whirlpool Washer Balance Ring Clip
13WP389140 Whirlpool Drive Block or Bell
14W10814296 Whirlpool Washer Center Post Seal Gasket
15WP353244 Whirlpool Hose
