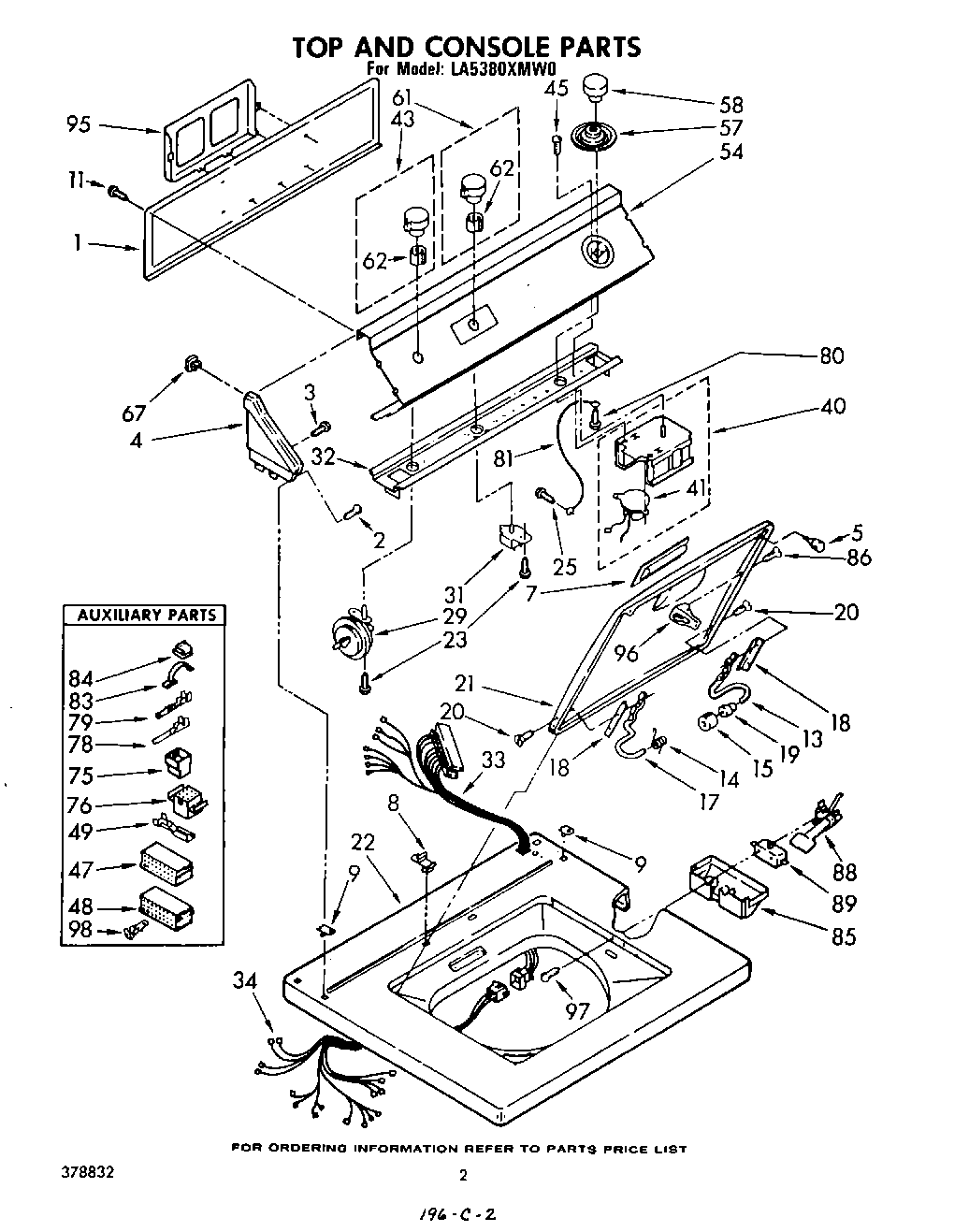

LA5380XMW0 02 – TOP AND CONSOLE

Products

Position	Product
1	Panel, Rear Console
2	Screw, 8-18 x 1 (2)
3	WPL 355326
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (White)
4	Cap, End L.H. (Almond Cap, End R.H.)
5	WP9724509 Whirlpool Bumper
7	Handle, Lid (White)
7	Handle, Lid (Almond)
8	Stop, Push-In Top
9	Nut, Push-In (2)
11	W11693756 Whirlpool Screw Assembly
13	WP91770 Whirlpool Hinge
14	Spring, Hinge
15	Bumper, Lid Hinge
17	Hinge, L.H.
18	WP21097 Whirlpool Pad
19	WP21258 Whirlpool Washer Lid Hinge Bearing
20	SCREW
21	Lid (White)
21	Lid (Almond)
22	Top (Almond)
22	Top (White)
23	WP90767 Whirlpool Screw
25	WP3351614 Whirlpool Screw
29	Switch, Water Level
31	Switch, Water Temperature (Alt.)
31	Switch, Water Temperature (Alt.)
31	Switch, Water Temperature 358934 (Alt.) 358935 (Alt.)
32	Bracket, Control
33	Harness, Console
34	Harness, Cabinet
40	Timer, 60 Hz. Mallory (Alt.)
40	Timer, 60 Hz. C.C.A. (Alt.)
40	Timer, 60 Hz.
40	Motor, Timer 60 Hz.
40	Use W/C.C.A. Timer
43	Knob Assembly, Water Level
45	WP356418 Whirlpool Screw
47	W10876590 Whirlpool Connector
48	Timer, Block Disconnect (White)
49	Terminal, Female
54	Panel, Control
57	Dial, Timer
58	Knob, Timer
61	Knob, Water Temperature
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
75	Cap, Terminal (Console Harness)
76	Plug, Terminal (Cabinet Harness)
78	WP596797 Whirlpool Terminal
79	WP94614 Whirlpool Terminal
80	SCREW
81	3184020 Whirlpool Oven Wire
83	8528351 Whirlpool Clip
84	WP90016 Whirlpool Clip
85	WP359231 Whirlpool Shield
86	Screw & Washer
88	Switch Actuator Assembly
89	W10820036 Whirlpool Door Switch Kit
95	Rack, Literature
96	Strike, Lid Switch
97	Screw & Washer, Lid Switch (2)
98	WPL 357695
