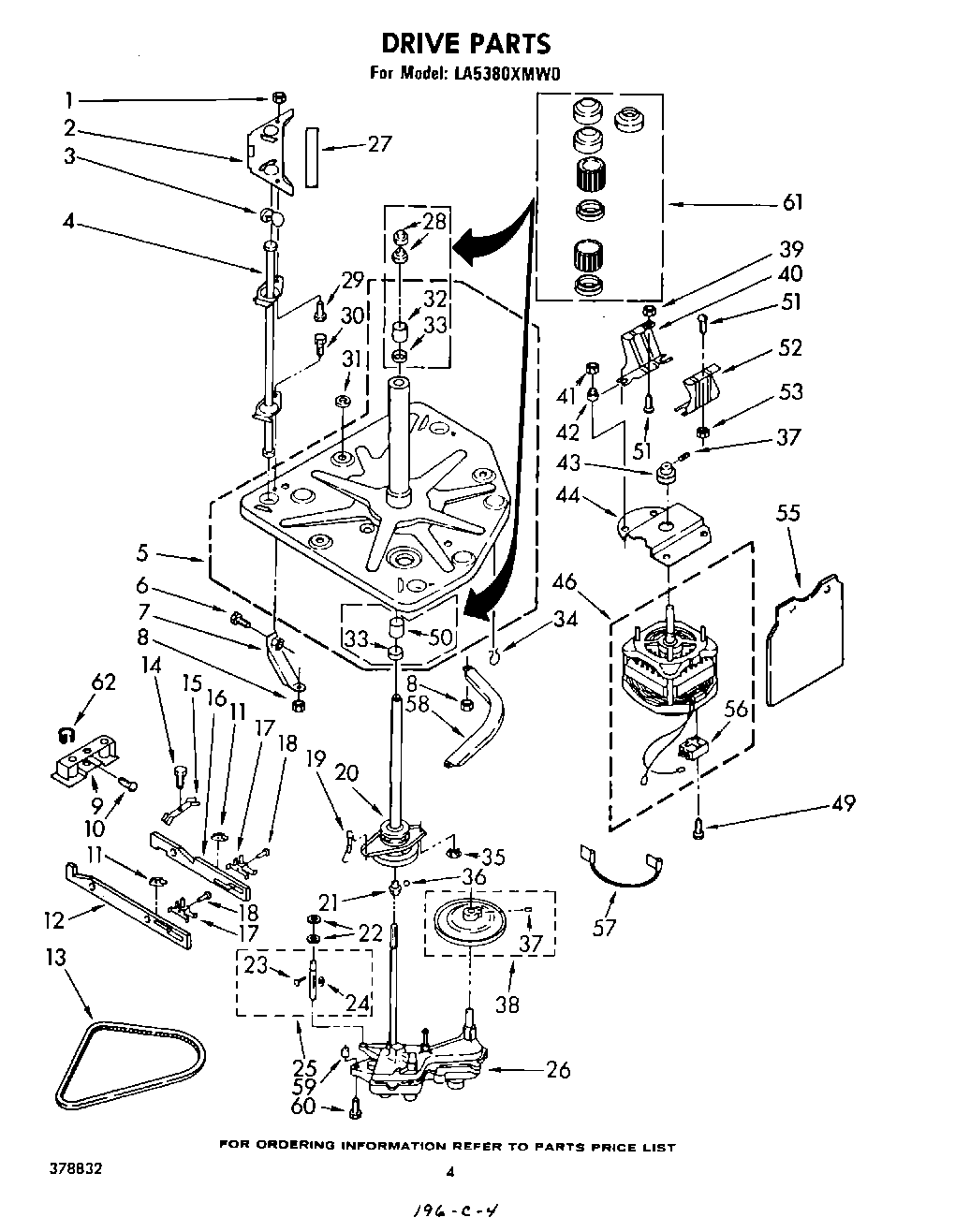

LA5380XMW0 03 – DRIVE

Products

Position	Product
1	90984 Whirlpool Nut
2	Cover, Gusset (L.R.)
3	Ball, Suspension (6)
4	Rod, Suspension (3)
5	Baseplate & Centerpost
6	WP3400516 Whirlpool Screw
7	Brace, Baseplate
8	Nut, 5/16-24
9	Magnet
10	Screw, Taper End
11	Guide, Cam Bar
12	Cam, Bar Spin
13	WP95405 Whirlpool Belt
14	Screw, 1/4-28 x 1/2
15	Spring, Brake
16	Cam, Agitator & Pump
17	Plunger
18	Rivet
19	Spring, Brake Yoke
20	Basket Drive & Brake (For Further Breakdown Refer To Page 11)
21	Support, Spin Tube
22	WP120393 Whirlpool Washer Assembly
23	Pin, Gear Fork Shaft
24	Roller, Gear Fork Shaft
25	Shaft, Basket Clutch
26	Gearcase (For Further Breakdown Refer To Page 10)
27	Pad, Gusset Cover (4)
28	WP8577376 Whirlpool Seal
29	Bolt, 5/16 x 1 (3)
29	Bolt, Snubber (1)
29	Bolt, 5/16 x 5/8 (2)
30	Bolt, 5/16-24
31	Gasket, Tub (7)
32	WP8546455 Whirlpool Bearing
33	W11095997 Whirlpool Seal
34	16515 Whirlpool Clip
35	Retainer, Brake Yoke
36	Ball
37	Setscrew, 5/16-18 x 1/2
38	Pulley, Main Drive
39	WP358160 Whirlpool Nut
40	Bracket, Motor Mounting
41	Nut (4)
42	Grommet, Motor Bracket (4)
43	Pulley, Motor
44	Shield, Motor (Upper)
46	Motor, 60 Hz.
46	Motor, 60 Hz. (Alt.) (General Electric)
46	Motor, 60 Hz. (Alt.) (Emerson)
49	WP3390631 Whirlpool Screw
50	WPL 354195
51	WPL 98537
52	WPL 93549
53	WPL 95721
55	WPL 359719
56	WPL 359642
56	WPL 362738
57	WPL 370950
58	WPL 351499
58	WPL 351500
59	WPL 16062
60	WPL 90877
61	WPL 285134
62	WP385728 Whirlpool Bushing
