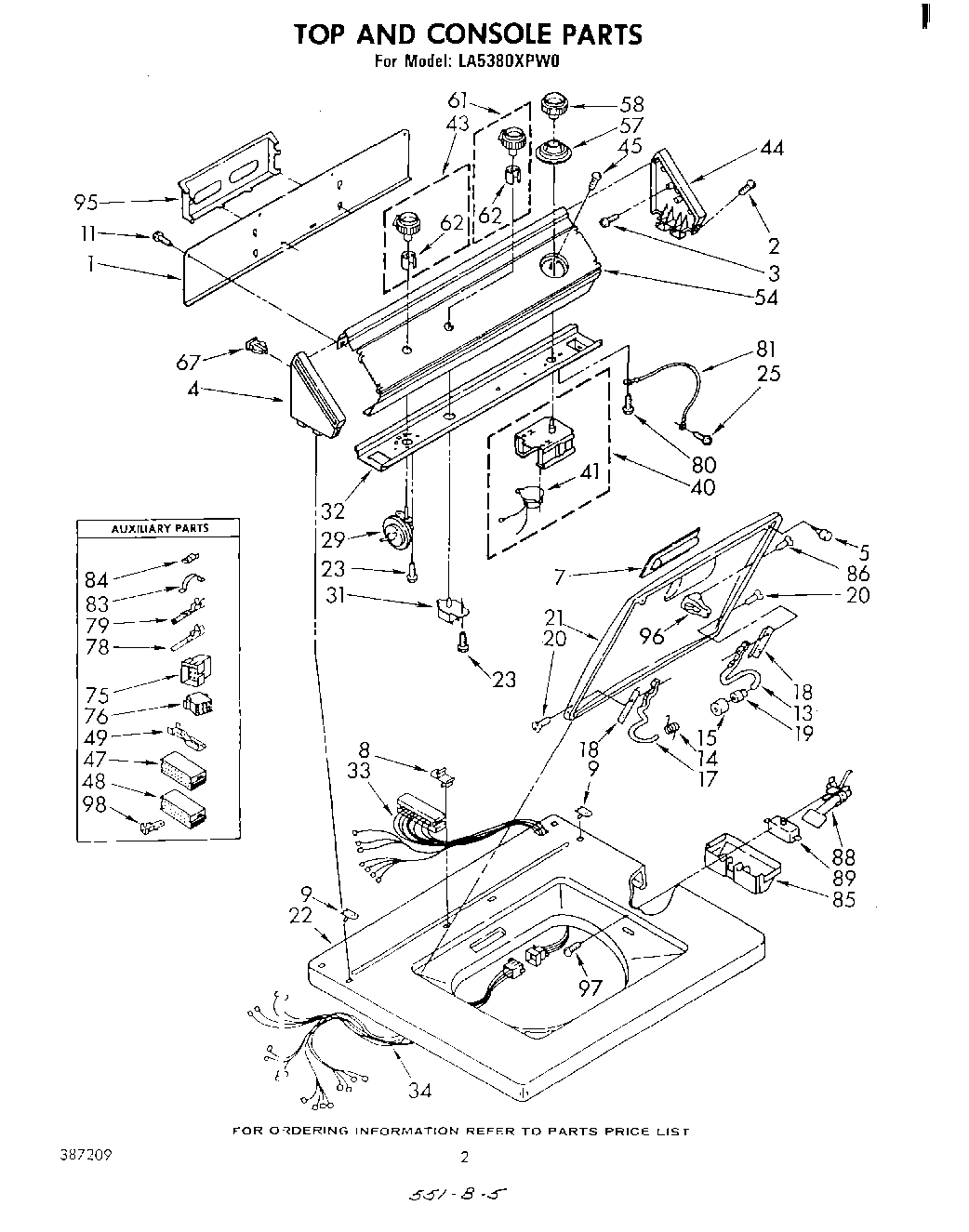

LA5380XPW0 02 – TOP AND CONSOLE

Products

PositionProduct
1Panel, Rear
2WPL 64211
3WPL 355326
4Cap, End (L.H.)
5WP9724509 Whirlpool Bumper
7Handle, Lid (Almond)
7Handle, Lid (White)
7Handle, Lid (Golden Harvest)
7Handle, Lid (Platinum)
7Handle, Lid (Toast)
8Stop, Push-In Top
9Nut, Push-In (2)
11W11693756 Whirlpool Screw Assembly
13WP91770 Whirlpool Hinge
14Spring, Hinge
15Bumper, Lid Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
21Lid (Golden Harvest)
21Lid (Platinum)
21Lid (Toast)
21Lid (Almond)
21Lid (White)
22Top (Almond)
22Top (Toast)
22Top (Platinum)
22Top (White)
22Top (Golden Harvest)
23WP90767 Whirlpool Screw
25WP3351614 Whirlpool Screw
29Switch, Water Level
31Switch, Water Temperature (Alt.)
31Switch, Water Temperature (Alt.)
31Switch, Water Temperature 358934 (Alt.) 358935 (Alt.)
32Bracket, Control
33Harness, Console
34Harness, Cabinet
40Timer, 60 Hz. C.C.A. (Alt.)
40Motor, Timer
40Timer, 60 Hz.
40Timer, 60 Hz. Mallory (Alt.)
40Motor, Timer
43Knob, Water Level
44WPL 63795
45WP356418 Whirlpool Screw
47W10876590 Whirlpool Connector
48Timer, Block Disconnect (White)
49Terminal, Female
54Panel, Control
57Dial, Timer
58Knob, Timer
61Knob, Water Temperature
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
75Cap, Terminal (Console Harness)
76Plug, Terminal (Cabinet Harness)
78WP596797 Whirlpool Terminal
79WP94614 Whirlpool Terminal
80SCREW
813184020 Whirlpool Oven Wire
838528351 Whirlpool Clip
84WP90016 Whirlpool Clip
85WP359231 Whirlpool Shield
86Screw & Washer
88Switch Actuator Assembly
89W10820036 Whirlpool Door Switch Kit
95Rack, Literature
96Strike, Lid Switch
97Screw & Washer, Lid Switch (2)
98WPL 357695
