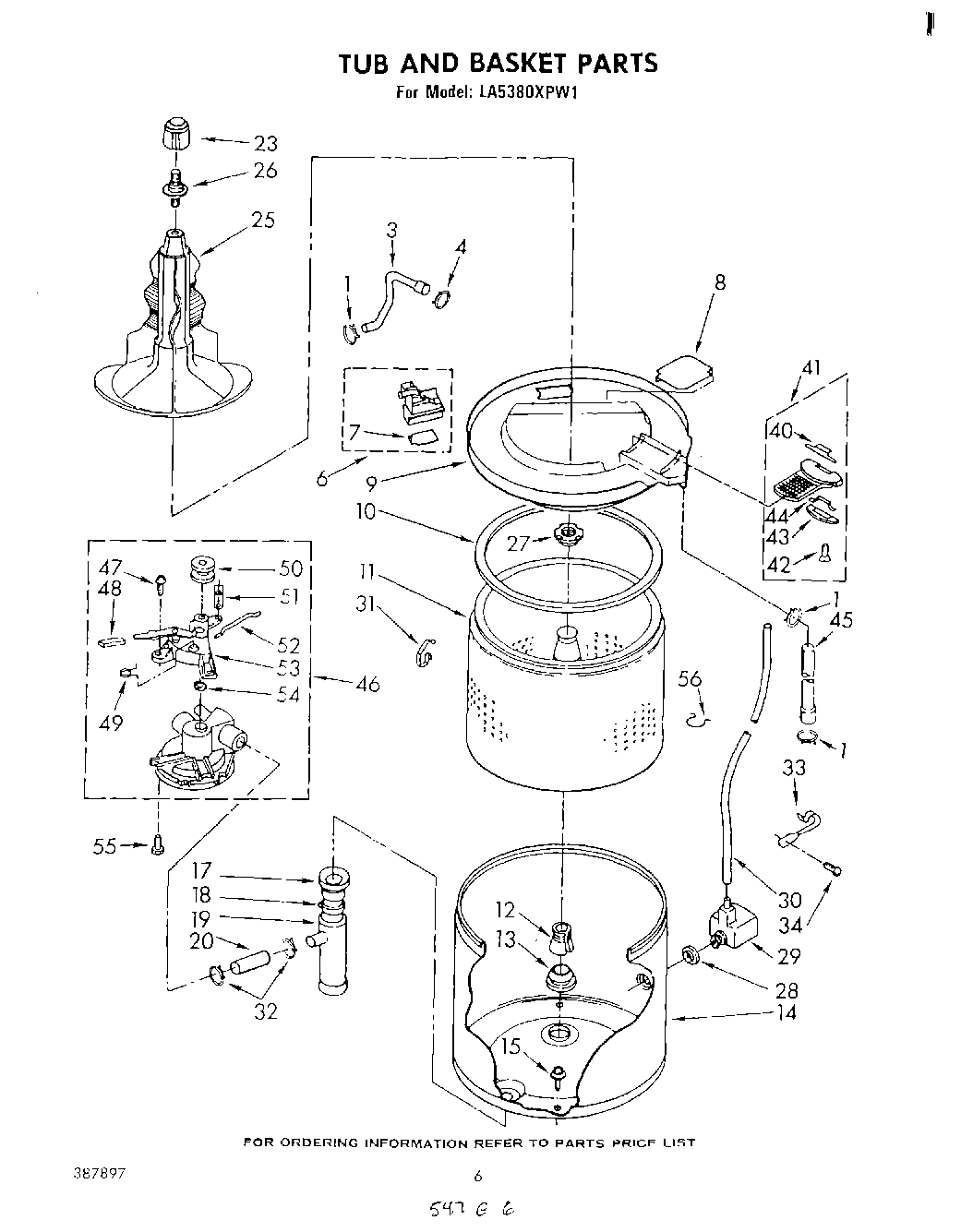

LA5380XPW1 04 – TUB AND BASKETadmin2025-04-26T12:43:08+00:00LA5380XPW1 04 – TUB AND BASKET
Products
| Position | Product |
|---|
| 1 | WP596669 Whirlpool Hose Clamp |
| 3 | Hose, Water Inlet |
| 6 | Inlet, Water |
| 7 | Flapper |
| 8 | Plate, Snubber |
| 9 | Ring & Filter, Tub (Includes Illus. 8 & 41) |
| 10 | Seal, Tub Ring |
| 11 | Basket |
| 12 | WP389140 Whirlpool Drive Block or Bell |
| 13 | W10814296 Whirlpool Washer Center Post Seal Gasket |
| 14 | Tub |
| 15 | Screw & Washer, Tub (4) |
| 17 | Hose, Tub Outlet |
| 18 | Clip, Hose |
| 19 | Manifold |
| 20 | Hose |
| 23 | Cap, Agitator |
| 25 | Agitator |
| 26 | Stud, Agitator Shaft |
| 27 | WP21366 Whirlpool Spanner Nut |
| 28 | Seal |
| 29 | Air Dome Assembly |
| 30 | WP353244 Whirlpool Hose |
| 31 | Clip, Tub Ring (4) |
| 32 | WP285655 Whirlpool Hose Clamp |
| 33 | Bracket, Hose |
| 34 | W11573574 Whirlpool Screw |
| 40 | Latch |
| 41 | Filter |
| 42 | Screw (2) |
| 43 | Retainer |
| 44 | Spring |
| 45 | Hose, Pump To Filter |
| 46 | Pump Assembly |
| 47 | WP273556 Whirlpool Screw |
| 48 | Sleeve |
| 49 | Spring, Toggle |
| 50 | Pulley |
| 51 | Lever, Valve |
| 52 | Rod, Connecting |
| 53 | Bearing Block Assembly |
| 54 | Wick, Oil |
| 55 | 386011 Whirlpool Screw |
| 56 | Clip, Harness (3) |
