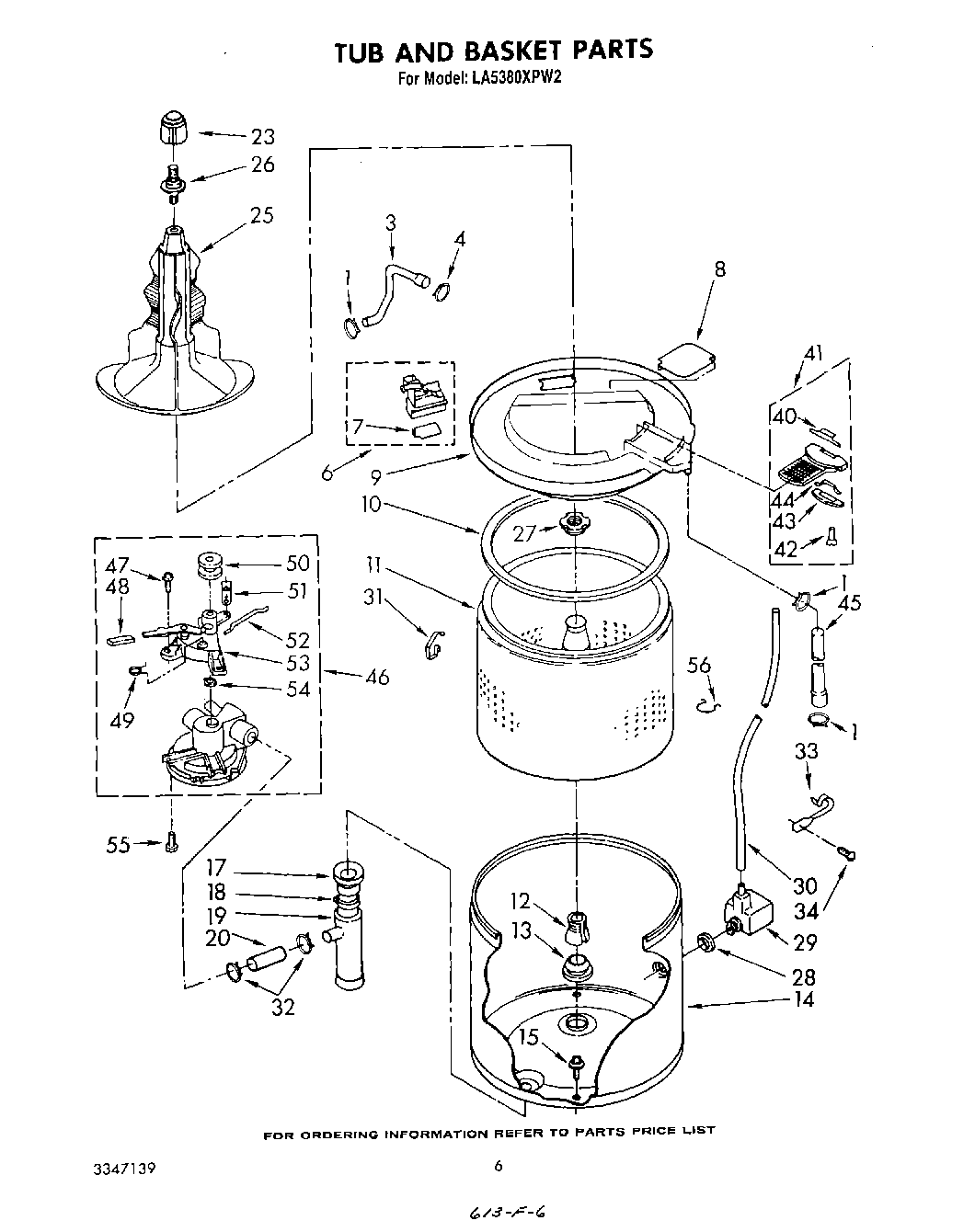

LA5380XPW2 04 – TUB AND BASKET

Products

Position	Product
1	WP596669 Whirlpool Hose Clamp
3	Hose, Water Inlet
6	Inlet, Water
7	Flapper
8	Plate, Snubber
9	Ring & Filter, Tub (Includes Illus. 8 & 41)
10	Seal, Tub Ring
11	Basket
12	WP389140 Whirlpool Drive Block or Bell
13	W10814296 Whirlpool Washer Center Post Seal Gasket
14	Tub
15	Screw & Washer, Tub (4)
17	Hose, Tub Outlet
18	Clip, Hose
19	Manifold
20	Hose
23	Cap, Agitator
25	Agitator
26	Stud, Agitator Shaft
27	WP21366 Whirlpool Spanner Nut
28	Seal
29	Air Dome Assembly
30	WP353244 Whirlpool Hose
31	Clip, Tub Ring (4)
32	WP285655 Whirlpool Hose Clamp
33	Bracket, Hose
34	W11573574 Whirlpool Screw
40	Latch
41	Filter
42	Screw (2)
43	Retainer
44	Spring
45	Hose, Pump To Filter
46	Pump Assembly
47	WP273556 Whirlpool Screw
48	Sleeve
49	Spring, Toggle
50	Pulley
51	Lever, Valve
52	Rod, Connecting
53	Bearing Block Assembly
54	Wick, Oil
55	386011 Whirlpool Screw
56	Clip, Harness (3)
