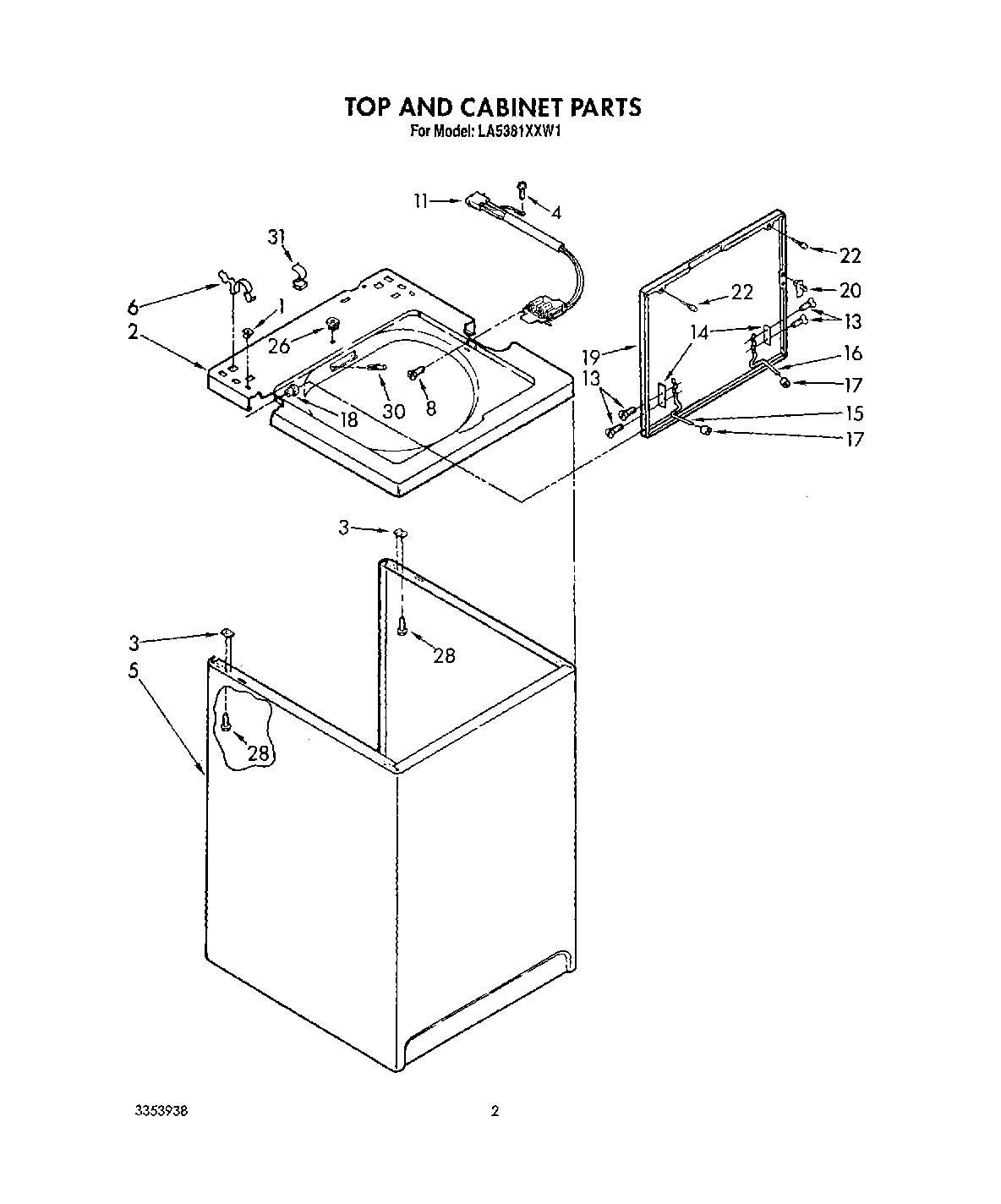

LA5381XXM1 02 – TOP AND CABINET, LIT/OPTIONAL

LA5381XXM1 02 – TOP AND CABINET, LIT/OPTIONAL

Written by

in

LA5381XXM1 02 – TOP AND CABINET, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
Shipping Kit
WPL 72112
WPL 89121
WPL LIT3347019
WPL LIT3351410
WPL LIT3351736
WPL LIT3356196
WP285195 Whirlpool Sealer Assembly
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
Golden Harvest (Uncut)
Golden Harvest
WPL LIT3353938
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
WPL LIT3354785
285320 Whirlpool Washer Siphon Break Kit
Drain Protector (Not Included)
350572 Whirlpool Oil Transmission 15 Oz
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
1Nut, Push-In (2)
2Top (Golden Harvest)
2Top (Platinum)
2top (white)
2Top (Almond)
2top (toast)
3WP62750 Whirlpool Spacer
5Cabinet (Toast)
5Cabinet (Platinum)
5Cabinet (Golden Harvest)
5Cabinet (Almond)
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
8WP3356311 Whirlpool Screw
11285671 Whirlpool Lid Switch Assembly
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (White)
19Lid (Golden Harvest)
19Lid (Platinum)
19Lid (Toast)
19Lid (Almond)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
26Stop, Push-In Top
28SCREW
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
