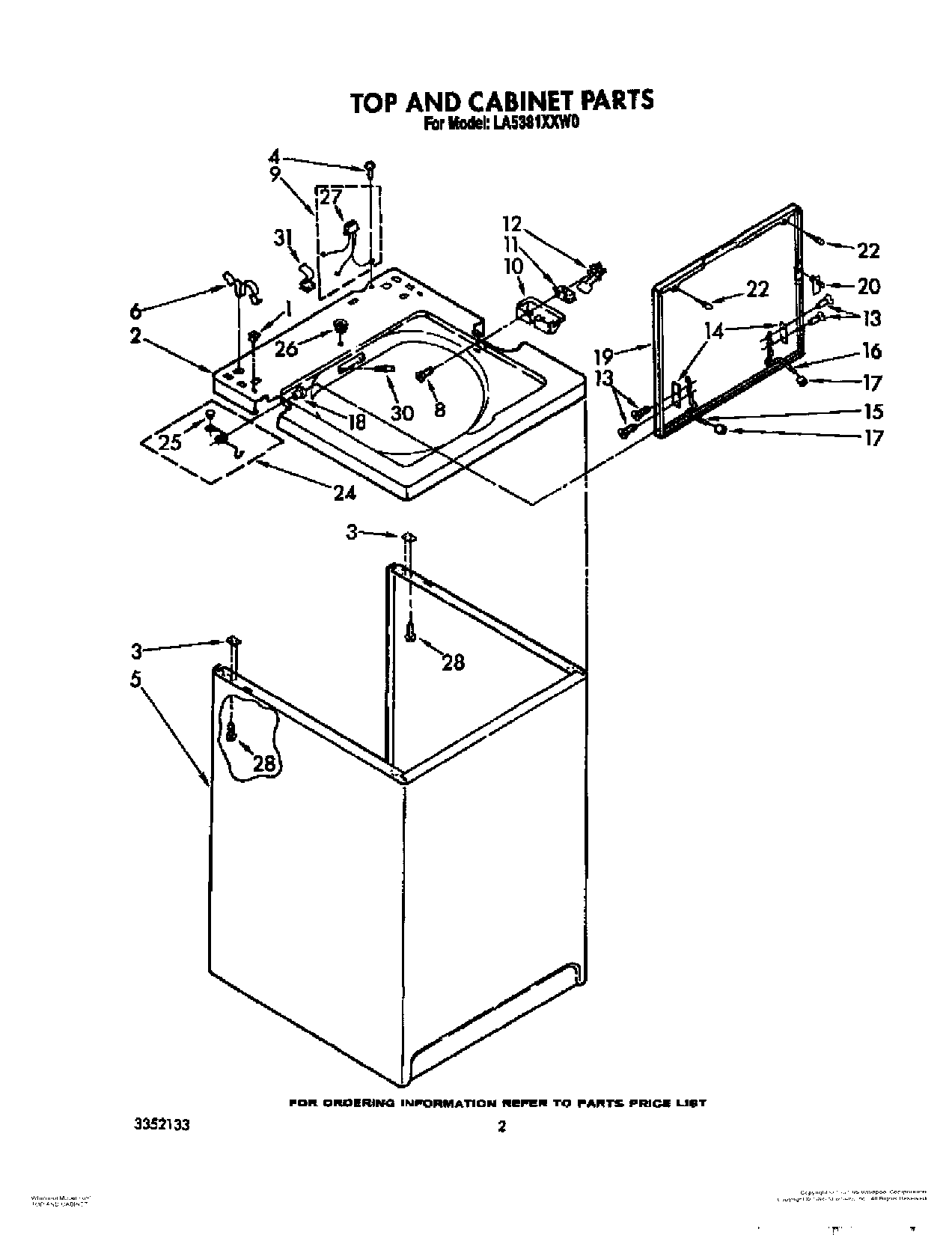

LA5381XXN0 02 – TOP AND CABINET
Written by
in
LA5381XXN0 02 – TOP AND CABINET
Products
Position
Product
350930 Whirlpool White Spray Paint
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
Shipping Kit
WPL 72112
WPL 89121
WPL LIT3347019
WPL LIT3351410
WPL LIT3351736
WPL LIT3354785
WP285195 Whirlpool Sealer Assembly
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WPL LIT3352133
Golden Harvest
WPL LIT3352141
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
Golden Harvest (Uncut)
285320 Whirlpool Washer Siphon Break Kit
Drain Protector (Not Included)
350572 Whirlpool Oil Transmission 15 Oz
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
72017 Whirlpool Appliance Touch-Up Paint White
1
Nut, Push-In (2)
2
top (toast)
2
Top (Platinum)
2
Top (Golden Harvest)
2
Top (Almond)
2
top (white)
3
WP62750 Whirlpool Spacer
5
Cabinet (Golden Harvest)
5
Cabinet (Platinum)
5
Cabinet (Toast)
5
Cabinet (Almond)
5
63424 Whirlpool Cabinet Assembly
6
WP62780 Whirlpool Cabinet Clip
8
Screw & Washer, Lid Switch (2)
9
Harness, Lid Switch
10
WP359231 Whirlpool Shield
11
W10820036 Whirlpool Door Switch Kit
12
Actuator, Lid Switch
13
SCREW
14
WP21097 Whirlpool Pad
15
WP54584 Whirlpool Hinge
16
WP54583 Whirlpool Hinge
17
Bumper, Lid Hinge
18
WP21258 Whirlpool Washer Lid Hinge Bearing
19
Lid (Golden Harvest)
19
Lid (White)
19
Lid (Platinum)
19
Lid (Toast)
19
Lid (Almond)
20
WP358684 Whirlpool Strike Assembly
22
WP9724509 Whirlpool Bumper
24
Spring & Button, Lid
25
Plug, Button
26
Stop, Push-In Top
27
Plug, Terminal (3-Way)
28
SCREW
30
Rivet, Serial Nameplate
31
WP90016 Whirlpool Clip
←
