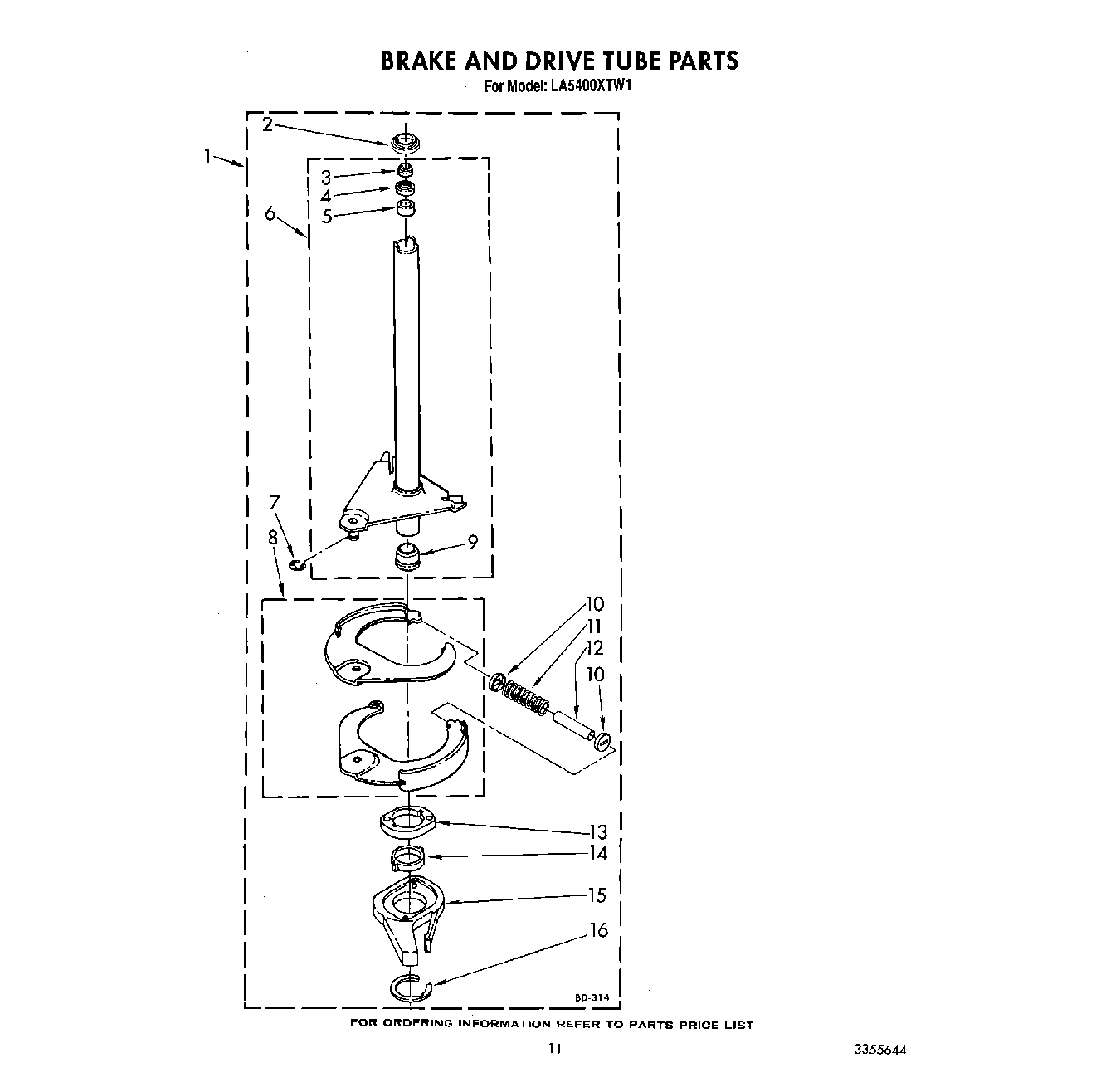

LA5400XTW1 09 – BRAKE AND DRIVE TUBE

Products

Position	Product
1	W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2	WP62658 Whirlpool Seal Ring
3	WP91939 Whirlpool Shaft Seal
4	WP356427 Whirlpool Shaft Seal
5	Spacer, Drive Tube
6	WP64208 Whirlpool Spin Tube
7	W10083190 Whirlpool Ring-E
8	285438 Whirlpool Brake Shoe
9	WP8546462 Whirlpool Bearing
10	285658 Whirlpool Sleeve Kit
11	WP62647 Whirlpool Spring Pressure
13	WP8546461 Whirlpool Brake Cam Assembly
14	WP63022 Whirlpool Sleeve
15	285790 Whirlpool Washer Clutch Band and Lining Kit
16	WPW10083200 Whirlpool Wire Ring
16	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
