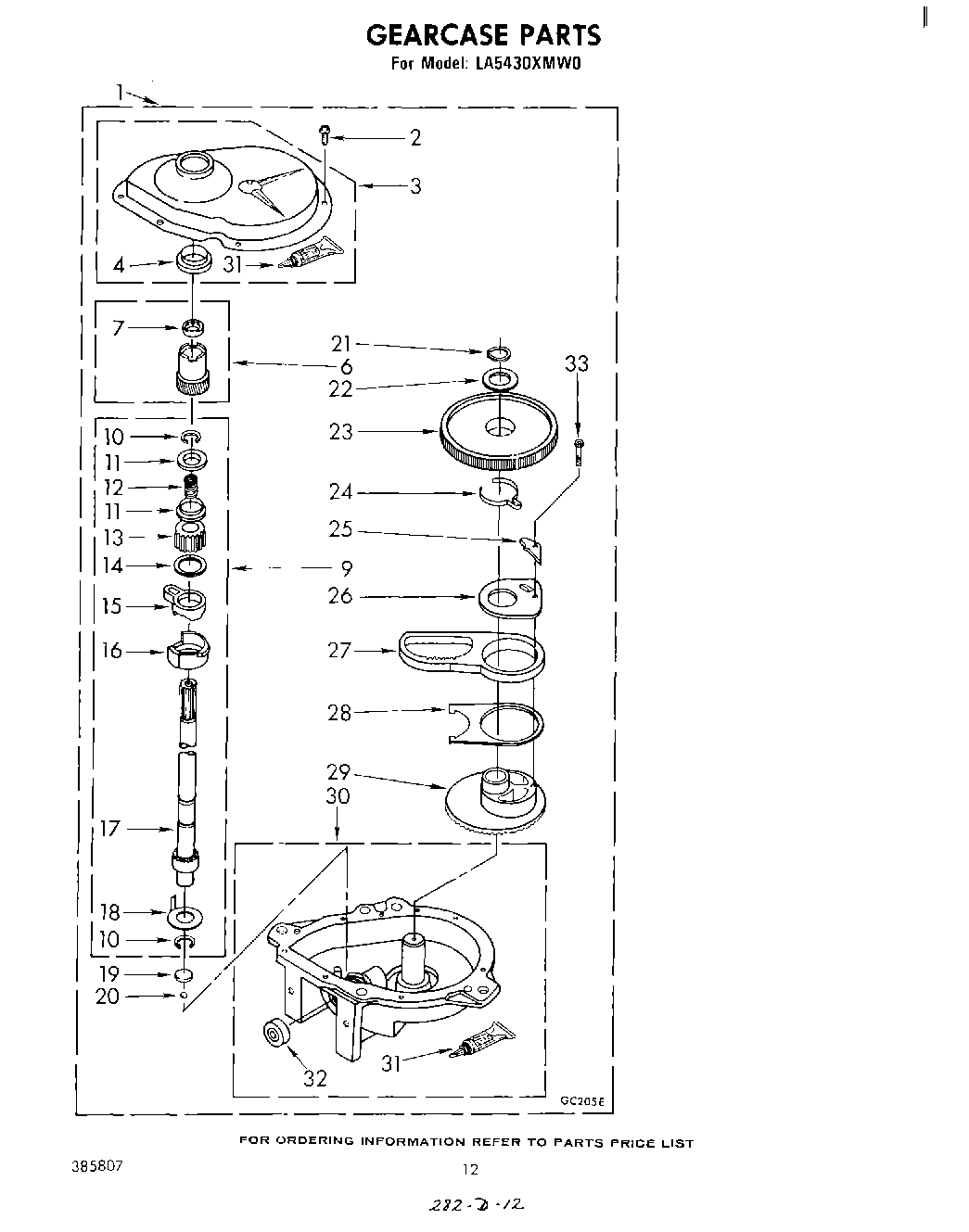

LA5430XMW0 10 – GEARCASE

LA5430XMW0 10 – GEARCASE

Written by

in

LA5430XMW0 10 – GEARCASE

Products

PositionProduct
1Gearcase (Complete) (Refer To Page 12 For Further Breakdown)
2WP3351614 Whirlpool Screw
3285202 Whirlpool Cover Assembly
4WP3349985 Whirlpool Shaft Seal
7WP356427 Whirlpool Shaft Seal
10Ring, Retaining (2)
1162677 Whirlpool Retainer
12Spring, Agitator
13WP389387 Whirlpool Agitator Shaft
1462619 Whirlpool Washer
18Washer, Cam Thrust
19285205 Whirlpool Bearing
21Ring, Retaining
22Washer Kit, Thrust
26285715 Whirlpool Drain Kit
273360629 Whirlpool Washer Gearcase Transmission
29Gear, Main Drive
30Pinion Assembly, Gearcase
31WP285195 Whirlpool Sealer Assembly
32285352 Whirlpool Washer Oil Seal Kit for Gearcase Input Shaft
33350572 Whirlpool Oil Transmission 15 Oz
33WP62638 Whirlpool Screw
