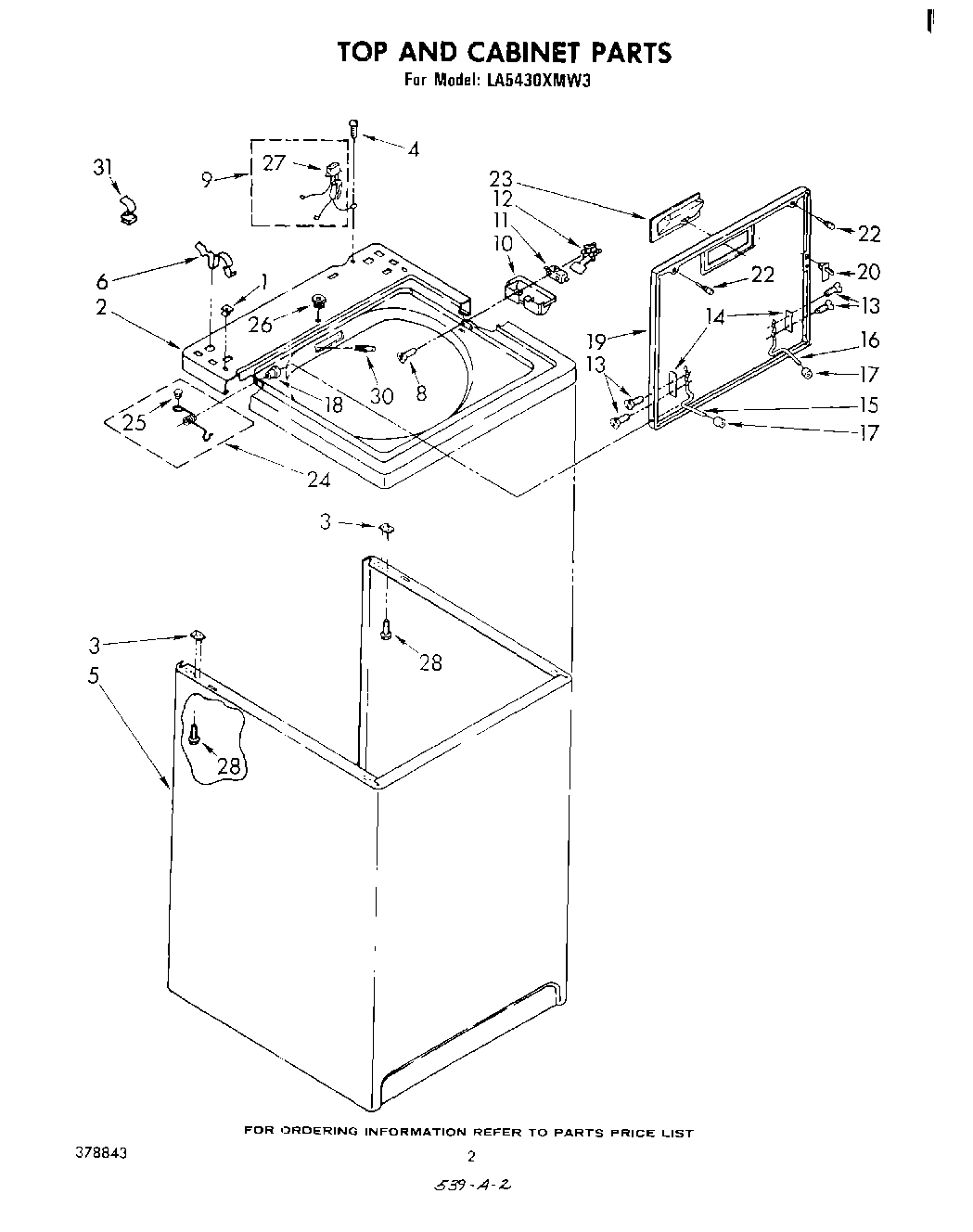

LA5430XMW3 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Products

Position	Product
1	Nut, Push-In (2)
2	Top (Golden Harvest)
2	Top (Almond)
2	Top (White)
3	WP62750 Whirlpool Spacer
5	Cabinet (White)
5	Cabinet (Almond)
5	Cabinet (Golden Harvest)
6	WP62780 Whirlpool Cabinet Clip
8	Screw & Washer, Lid Switch (2)
9	Harness, Lid Switch
10	WP359231 Whirlpool Shield
11	W10820036 Whirlpool Door Switch Kit
12	Actuator, Lid Switch
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (Almond)
19	Lid (White)
19	Lid (Golden Harvest)
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
23	Handle, Lid (Almond)
23	Handle, Lid (White)
23	Handle, Lid (Golden Harvest)
24	Spring & Button, Lid ((R.H.))
24	Spring & Button, Lid ((L.H.))
25	Plug, Button
26	Stop, Push-In Top
27	Plug, Terminal (3-Way)
28	SCREW
30	Rivet, Serial Nameplate
31	350956 Whirlpool Spray Assembly
31	WP72107 Whirlpool Touchup
31	799344 Whirlpool Refrigerator Paint
31	Almond (Uncut)
31	72017 Whirlpool Appliance Touch-Up Paint White
31	WPL 383978
31	WPL 386182
31	WPL 385040
31	350938 Whirlpool Spray Gun
31	Leveler (Thinner)
31	WP90016 Whirlpool Clip
31	WPL 799351
31	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
31	350930 Whirlpool White Spray Paint
31	Golden Harvest (Uncut)
31	Golden Harvest
31	Guide, Laundry
31	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
31	350572 Whirlpool Oil Transmission 15 Oz
31	WP285195 Whirlpool Sealer Assembly
31	List, Repai
