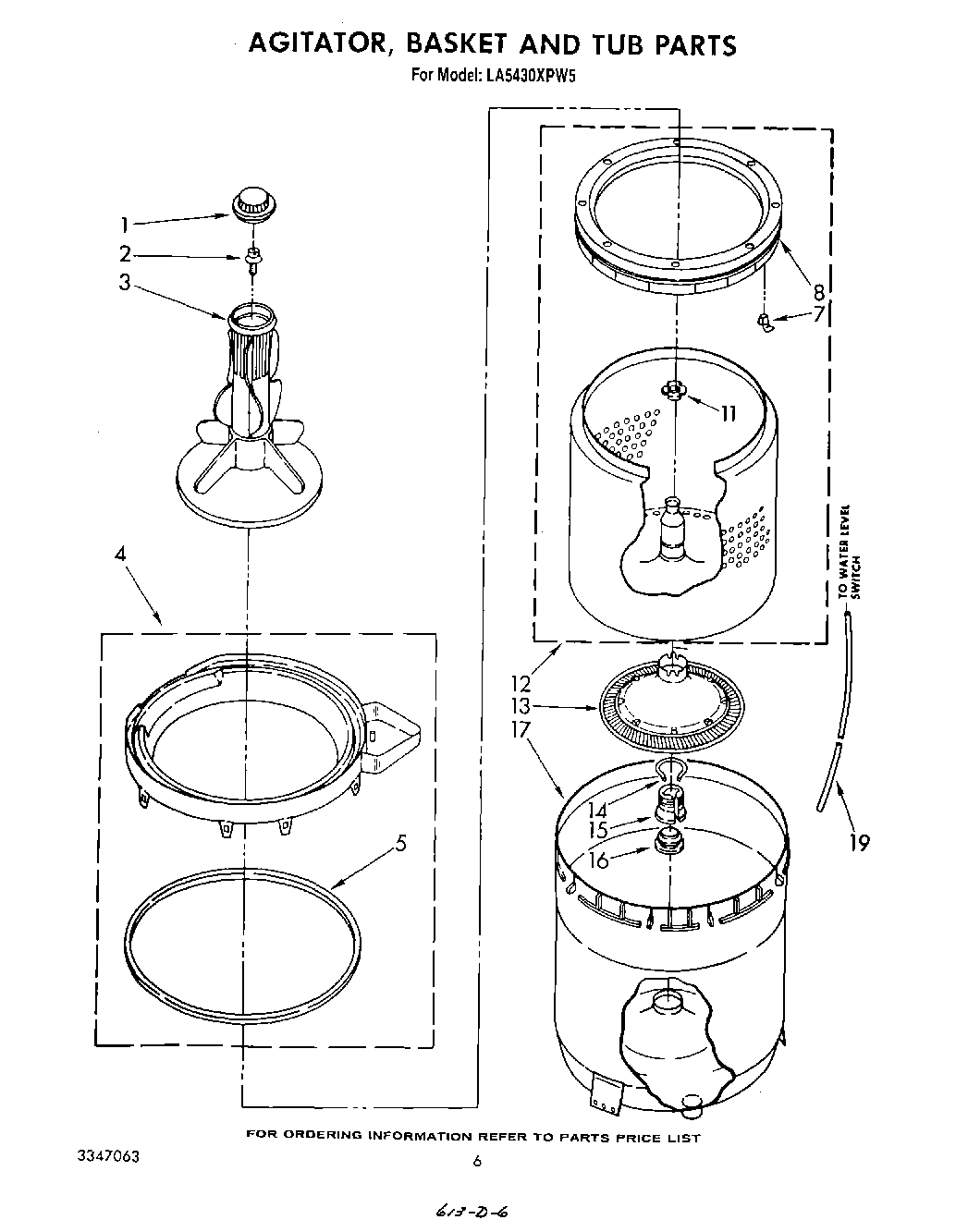

LA5430XPW5 04 – AGITATOR, BASKET AND TUB

LA5430XPW5 04 – AGITATOR, BASKET AND TUB

Written by

in

LA5430XPW5 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP63235 Whirlpool Agitator Assembly
4Tub Ring & Gasket
5WP3359586 Whirlpool Tub Seal
8WP8519815 Whirlpool Washer Balance Ring Clip
11WP21366 Whirlpool Spanner Nut
12Basket & Balance Ring
13285868 Whirlpool Washer Filter Plug Kit
14Lock, Filter
15WP389140 Whirlpool Drive Block or Bell
16W10814296 Whirlpool Washer Center Post Seal Gasket
17Tub
19WP353244 Whirlpool Hose
