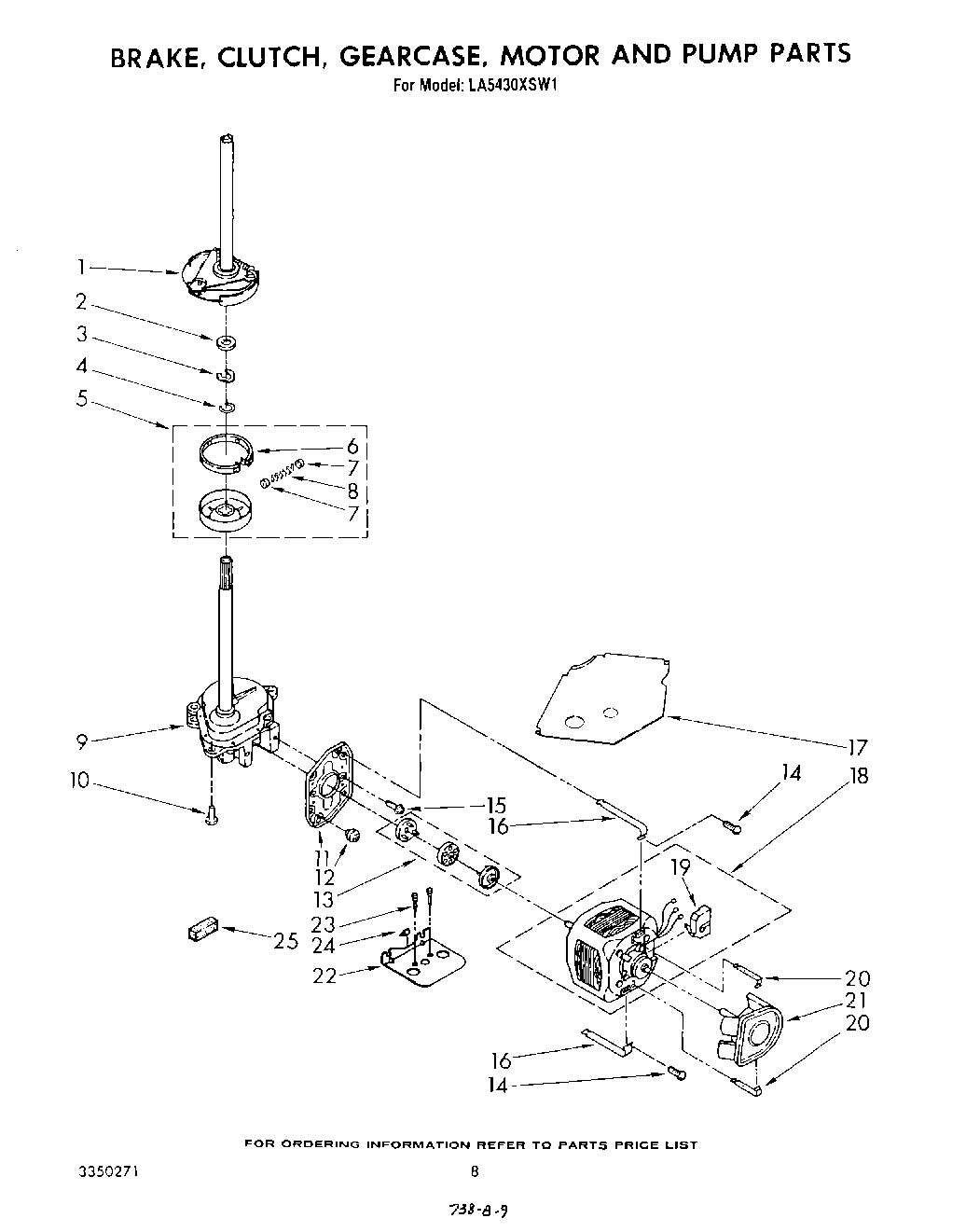

LA5430XSW1 06 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

Products

PositionProduct
1W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2WP63292 Whirlpool Washer
3WPW10080230 Whirlpool Ring
4285353 Whirlpool Ring
5285785 Whirlpool Washer Direct Drive Clutch
7WP62646 Whirlpool Cap
8285790 Whirlpool Washer Clutch Band and Lining Kit
93360629 Whirlpool Washer Gearcase Transmission
10Screw, Gearcase To Base (3) (5/16-24 x 3/4)
11WP62611 Whirlpool Plate
12WP62691 Whirlpool Grommet
13285753A Whirlpool Washer Direct Drive Motor Coupling
14W11573574 Whirlpool Screw
15WP3400516 Whirlpool Screw
16WPW10086010 Whirlpool Motor Retainer Clip
17W10838408 Whirlpool Motor Shield
18WP661600 Whirlpool Drive Motor
19Switch, Main Drive Motor
20WP8546127 Whirlpool Retainer Clip
21WP3363394 Whirlpool Washer Drain Pump
22WP3946532 Whirlpool Shield
23238614 Whirlpool Bumper Hinge
24Clip
253350013 Whirlpool Foam Seal
