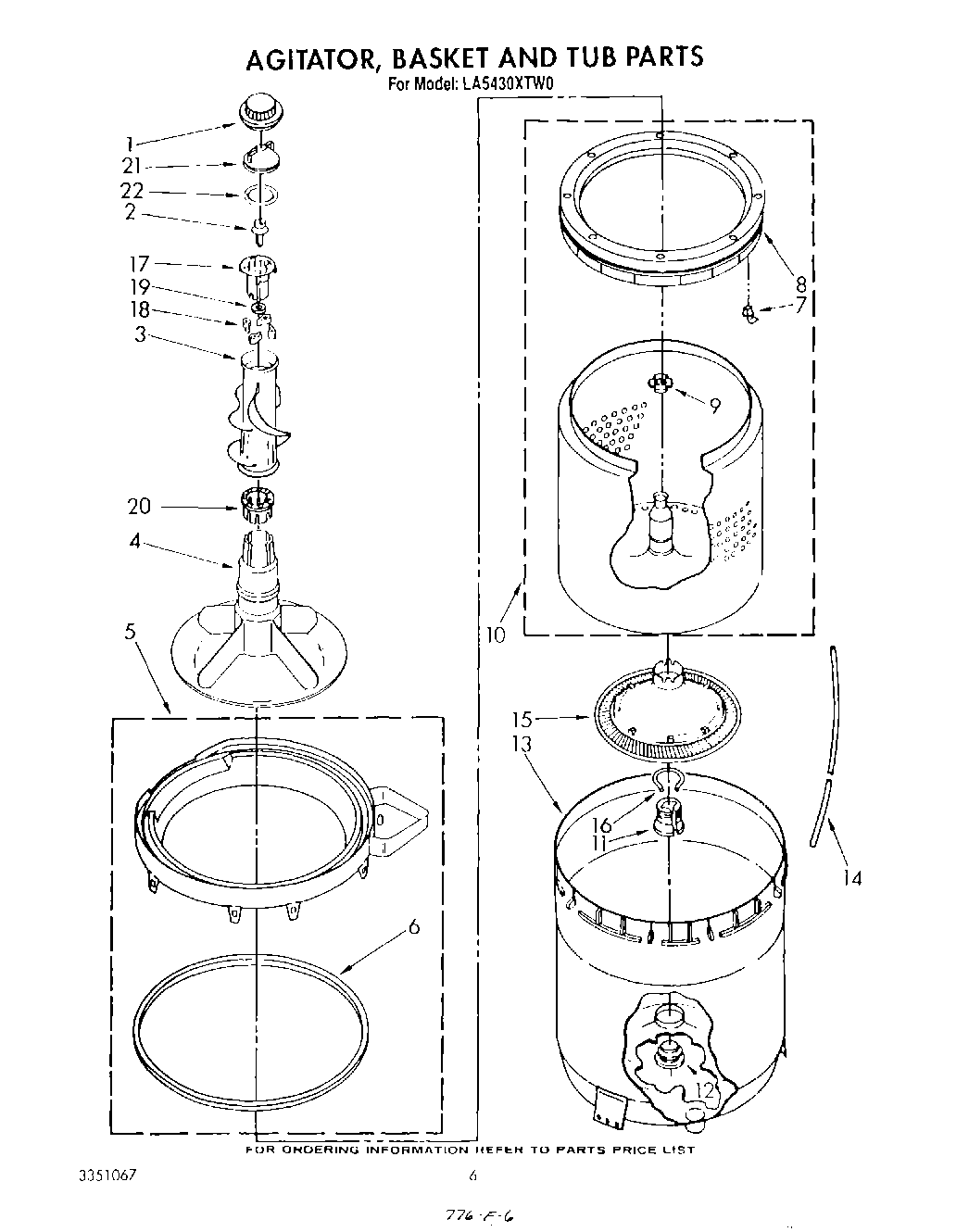

LA5430XTG0 04 – AGITATOR, BASKET AND TUB

Products

Position	Product
1	WP3355758 Whirlpool Agitator Cap
2	WP358237 Whirlpool Agitator Bolt
3	WP3349019 Whirlpool Upper Agitator
4	WP3350830 Whirlpool Agitator Assembly
5	Tub Ring & Gasket
6	WP3359586 Whirlpool Tub Seal
8	WP8519815 Whirlpool Washer Balance Ring Clip
9	WP21366 Whirlpool Spanner Nut
10	Basket & Balance Ring
11	WP389140 Whirlpool Drive Block or Bell
12	W10814296 Whirlpool Washer Center Post Seal Gasket
13	Tub
14	WP353244 Whirlpool Hose
15	285868 Whirlpool Washer Filter Plug Kit
16	Lock, Filter
17	285811 Whirlpool Washer Agitator Repair Kit
18	80040 Whirlpool Washer Agitator Dog Kit
19	Seal, Agitator
20	285587 Whirlpool Thrust Washer
21	WPW10074580 Whirlpool Agitator Inner Cap and Seal
22	WPW10072840 Whirlpool Seal Assembly
