LA5500XKW1 05 – WATER PUMP – Aparts

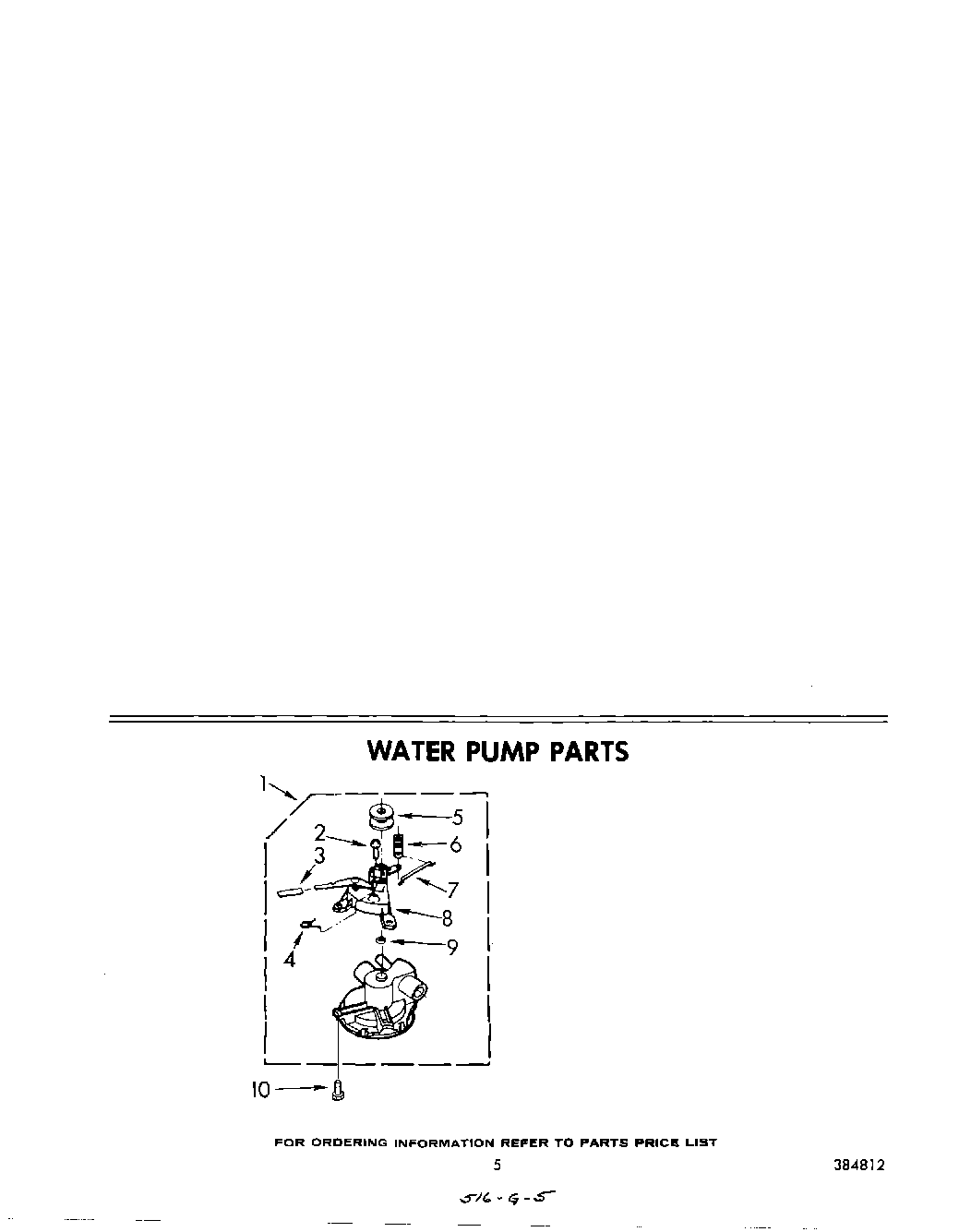

LA5500XKW1 05 – WATER PUMP

Products

Position	Product
1	Pump Assembly
2	WP273556 Whirlpool Screw
3	Sleeve
4	Spring, Toggle
5	Pulley, Pump (Alternate)
6	Lever, Valve
7	Rod, Connecting
8	Bearing Block Assembly
9	Wick, Oil
10	386011 Whirlpool Screw
