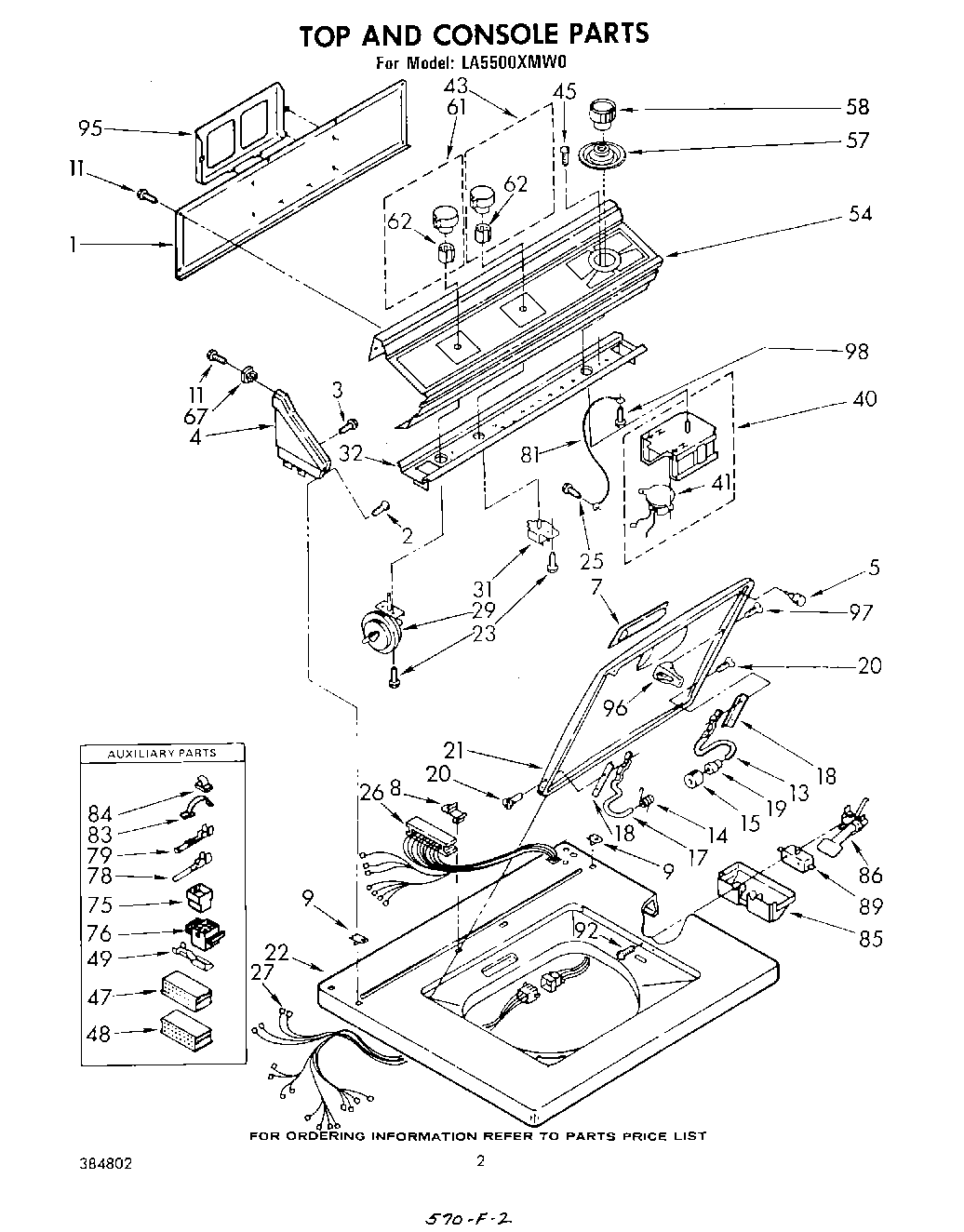

LA5500XMW0 02 – TOP AND CONSOLE

LA5500XMW0 02 – TOP AND CONSOLE

Written by

in

LA5500XMW0 02 – TOP AND CONSOLE

Products

PositionProduct
1Panel, Rear Console
2Screw, 8-18 x 1 (2)
3WPL 355326
4Cap, End (L.H.) (Almond)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End L.H. (White)
4Cap, End (L.H.) (White)
5WP9724509 Whirlpool Bumper
7Handle, Lid (Almond)
7Handle, Lid (White)
8Stop, Push-In Top
9Nut, Push-In (2)
11W11693756 Whirlpool Screw Assembly
13WP91770 Whirlpool Hinge
14Spring, Hinge
15Bumper, Lid Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
21Lid (White)
21Lid (Almond)
22Top (White)
22Top (Almond)
23WP90767 Whirlpool Screw
25WP3351614 Whirlpool Screw
26WPL 359327
27Harness, Base
29Switch, Water Level (Alternate)
29Switch, Water Level
29Switch, Water Level (Alternate)
31Switch, Water Temperature 358934 (Alt.) 358935 (Alt.)
31Switch, Water Temperature (Alt.)
31Switch, Water Temperature (Alt.)
32Bracket, Control
40Timer, 60 Hz.
40Timer, 60 Hz. C.C.A. (Alt.)
40Timer, 60 Hz. Mallory (Alt.)
40Motor, Timer 60 Hz.
41Use W/C.C.A. Timer
43Knob, Water Temperature
45WP356418 Whirlpool Screw
47W10876590 Whirlpool Connector
48Timer, Block Disconnect (White)
49Terminal, Female
54Panel, Control
57Dial, Timer
58Knob, Timer
61Knob Assembly, Water Level
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
75Cap, Terminal (Console Harness)
76Plug, Terminal (Cabinet Harness)
78WP596797 Whirlpool Terminal
79WP94614 Whirlpool Terminal
813184020 Whirlpool Oven Wire
838528351 Whirlpool Clip
84WP90016 Whirlpool Clip
85WP359231 Whirlpool Shield
86Switch Actuator Assembly
89W10820036 Whirlpool Door Switch Kit
92Screw & Washer, Lid Switch (2)
95Rack, Literature
96Strike, Lid Switch
97Screw & Washer
98SCREW
