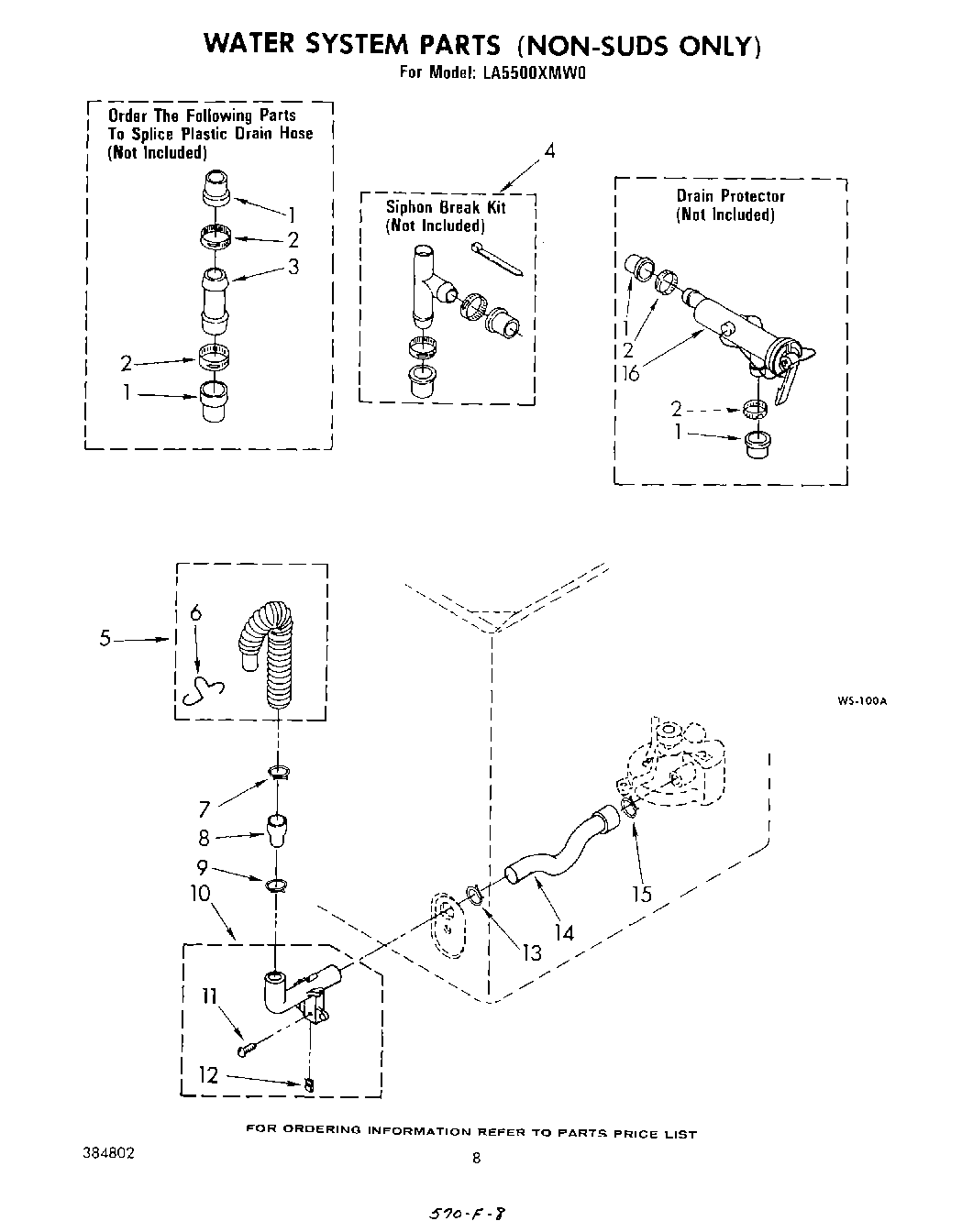

LA5500XMW0 07 – WATER SYSTEM

Products

PositionProduct
1285321 Whirlpool Sleeve
3WP16272 Whirlpool Hose Coupling
4285320 Whirlpool Washer Siphon Break Kit
5285666 Whirlpool Drain Hose 10'
5285664 Whirlpool Drain Hose
6WPL 357247
7WP616099 Whirlpool Clamp
8WP384496 Whirlpool Hose Coupling
10Connector, 90 o
11Screw, Connector Mounting (10 x 3/4)
12Clip
13WP356138 Whirlpool Hose Clamp
14Hose, Pump Discharge
15WP285655 Whirlpool Hose Clamp
16Drain Protector (Not Included)
