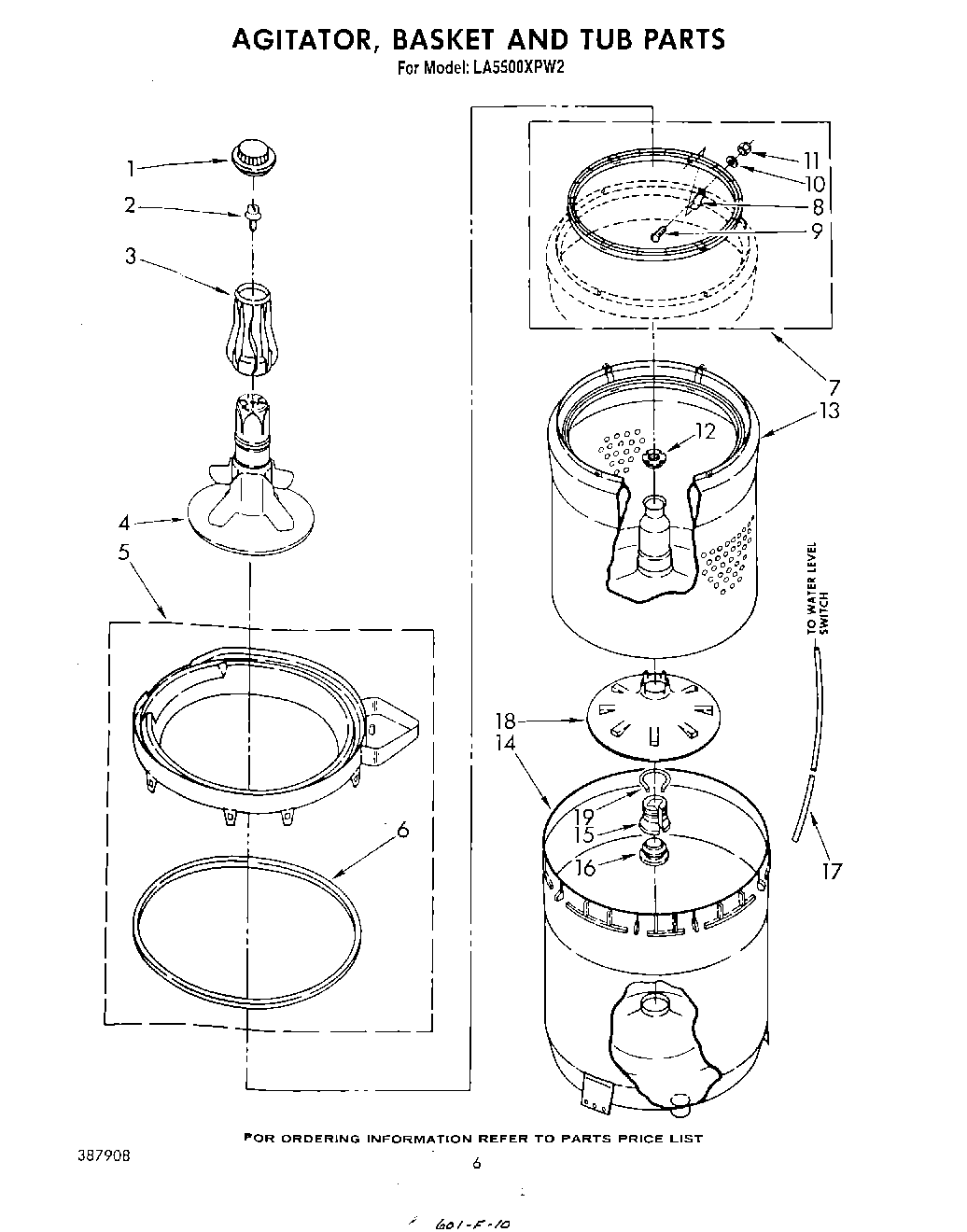

LA5500XPW2 04 – AGITATOR, BASKET AND TUB

LA5500XPW2 04 – AGITATOR, BASKET AND TUB

Written by

in

LA5500XPW2 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP63753 Whirlpool Filter
4387838 Whirlpool Washer Agitator with Auger Assembly
5Tub Ring & Gasket
6WP3359586 Whirlpool Tub Seal
7Clothes Guard Repair Kit
8Clip, Clothes Guard (6)
9WP486754 Whirlpool Compactor Screw
10Washer, Nylon (6)
11Locknut (6)
12WP21366 Whirlpool Spanner Nut
13Basket & Clothes Guard (Includes Illus. 7)
14Tub
15WP389140 Whirlpool Drive Block or Bell
16W10814296 Whirlpool Washer Center Post Seal Gasket
17WP353244 Whirlpool Hose
18Plate, Restrictor
19Lock, Filter
