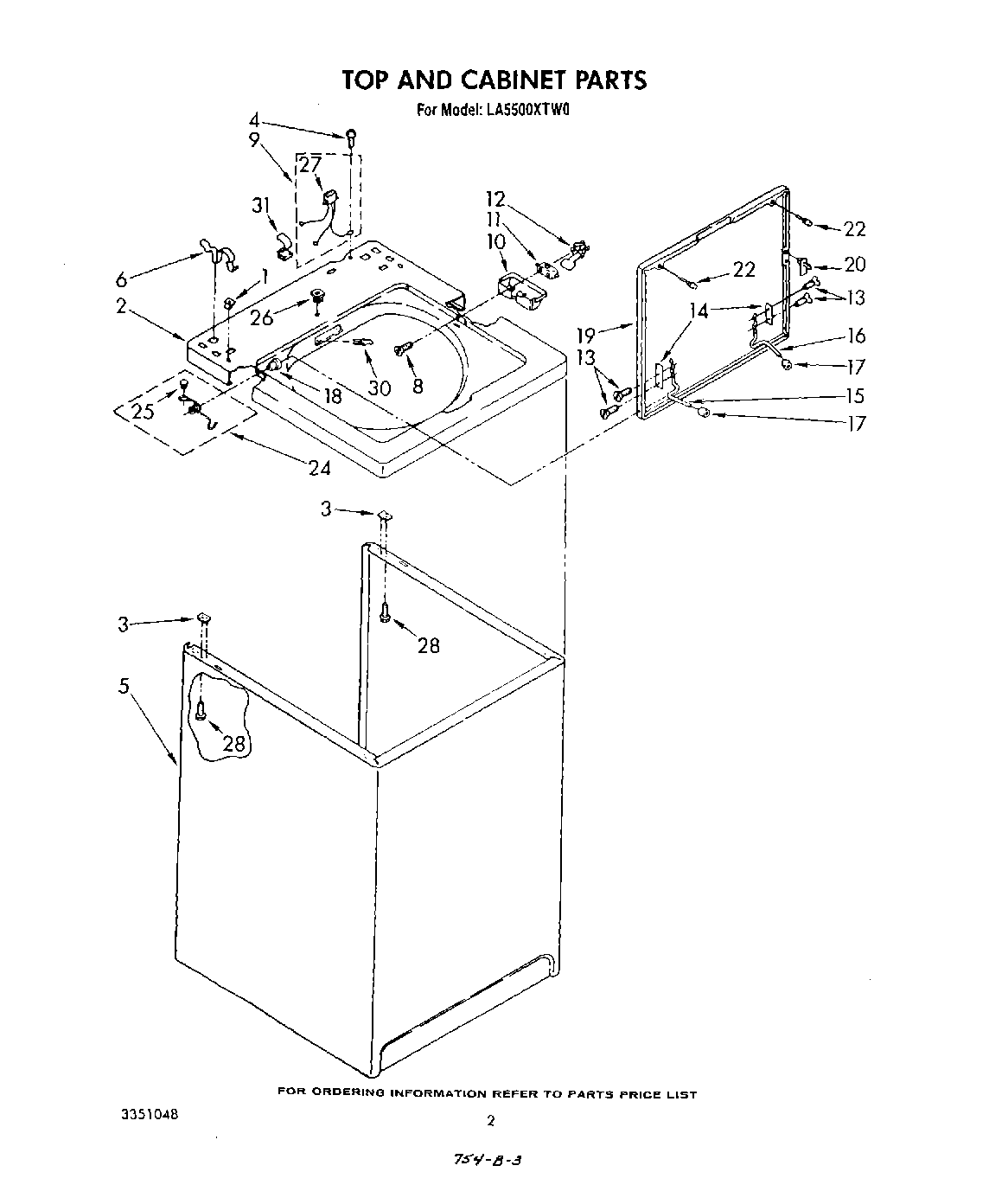

LA5500XTG0 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT3351049
WPL LIT3351048
WPL LIT385238
WPL LIT3351047
WPL LIT3347015
1Nut, Push-In (2)
2top (white)
2Top (Almond)
2top (toast)
2Top (Platinum)
2Top (Golden Harvest)
3WP62750 Whirlpool Spacer
5Cabinet (Toast)
563424 Whirlpool Cabinet Assembly
5Cabinet (Almond)
5Cabinet (Platinum)
5Cabinet (Golden Harvest)
6WP62780 Whirlpool Cabinet Clip
8Screw & Washer, Lid Switch (2)
9Harness, Lid Switch
10WP359231 Whirlpool Shield
11W10820036 Whirlpool Door Switch Kit
12Actuator, Lid Switch
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Platinum)
19Lid (White)
19Lid (Golden Harvest)
19Lid (Toast)
19Lid (Almond)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
24Spring & Button, Lid
25Plug, Button
26Stop, Push-In Top
27plug, terminal (3-way)
28SCREW
30Rivet, Serial Nameplate
31350930 Whirlpool White Spray Paint
31350938 Whirlpool Spray Gun
31Golden Harvest (Uncut)
31Almond (Uncut)
31350956 Whirlpool Spray Assembly
3172017 Whirlpool Appliance Touch-Up Paint White
31799344 Whirlpool Refrigerator Paint
31Platinum (Uncut)
31Enamal, Toast (1 Qt. Uncut)
31Paint, Spray (13 Oz.) (Platinum)
31Toast
31Golden Harvest
3172113 Whirlpool Touch-Up Paint
3172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
31350572 Whirlpool Oil Transmission 15 Oz
31WP90016 Whirlpool Clip
31Leveler (Thinner)
31LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
31WP285195 Whirlpool Sealer Assembly
31WP72107 Whirlpool Touchup
31WPL 72112
