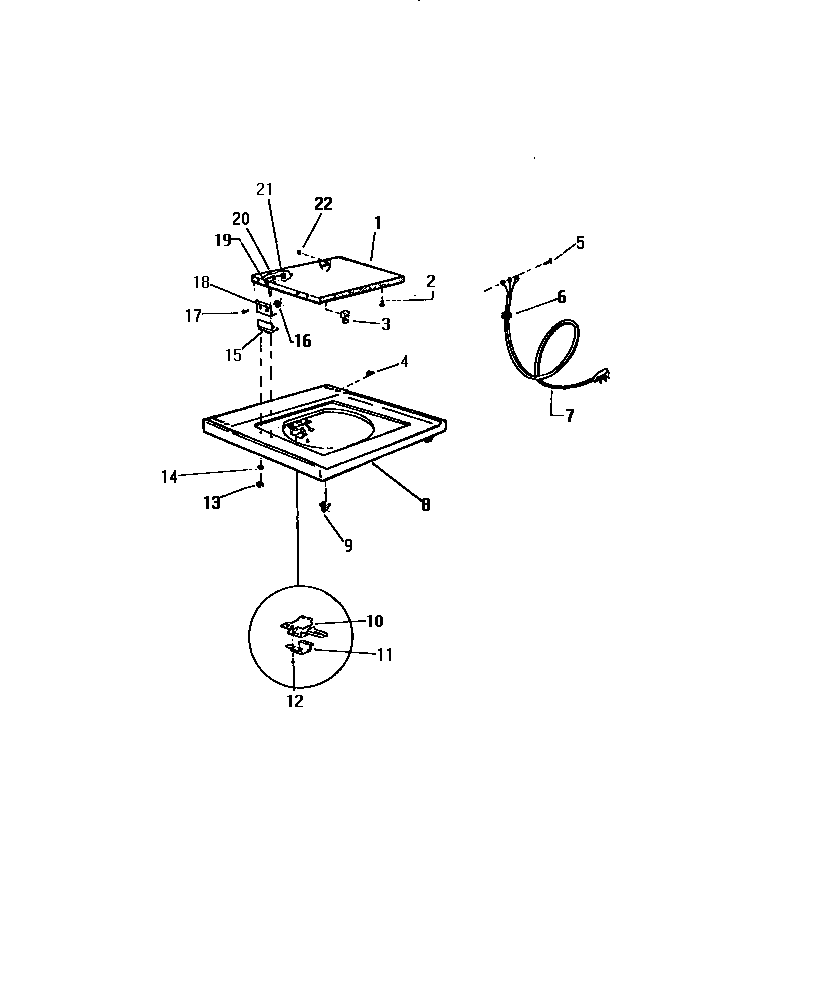

LA550EXF1 03 – TOP PANEL

LA550EXF1 03 – TOP PANEL

Written by

in

LA550EXF1 03 – TOP PANEL

Products

PositionProduct
1WCI Q127617
2WCI Q13435
3WCI Q143172
4WCI Q503065
6WCI Q63137
7CORD, SERVICE
8WCI Q621242
9SPRING CATCH
10WCI Q165346
11SHIELD, LID LOCK
12SCREW (4)
15WCI Q93739
16WCI Q409309
18WCI Q126405
19WCI Q432003
20SPACER
21NUT (2)
22WCI Q501589
