LA550EXW1 02 – CONSOLE & CONTROLS

LA550EXW1 02 – CONSOLE & CONTROLS

Written by

in

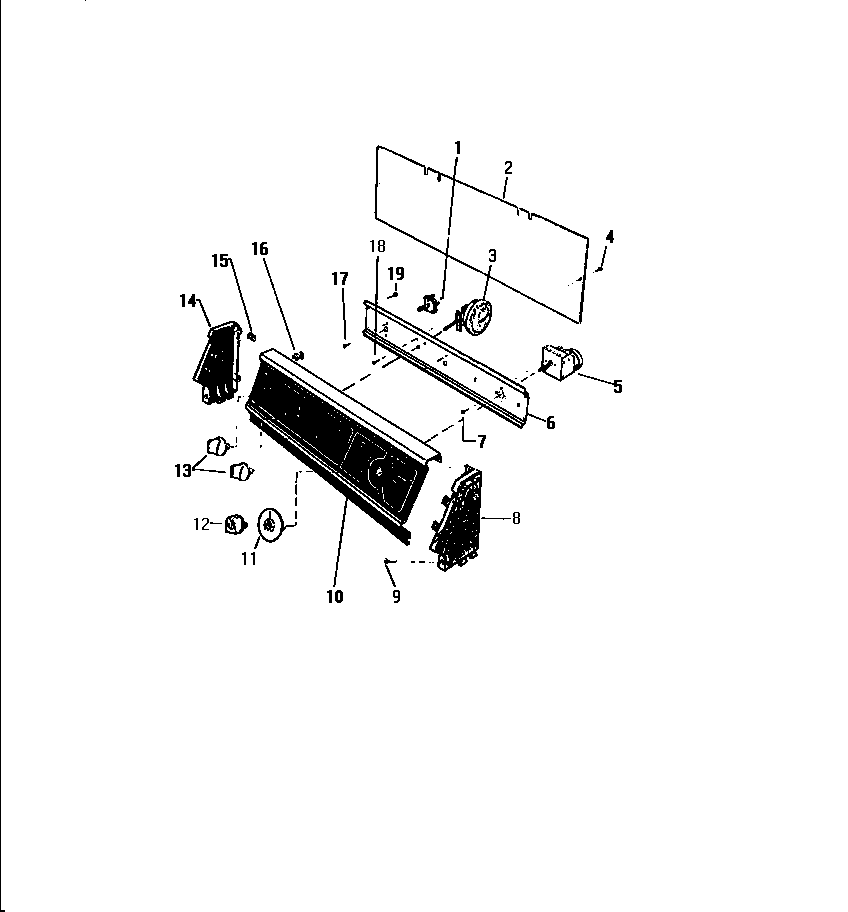

LA550EXW1 02 – CONSOLE & CONTROLS

Products

PositionProduct
1WCI Q613923
2WCI Q616741
3WCI Q618921
4WCI Q405802
5WCI Q630411
6WCI Q616711
7SCREW (4)
8WCI Q616732
9WCI Q504533
10WCI Q631211
11WCI Q621221
12WCI Q621212
13KNOB TIMER
14WCI Q616731
15SPEEDNUT (8)
16WCI Q504801
17SCREW (2)
19SCREW (4)
