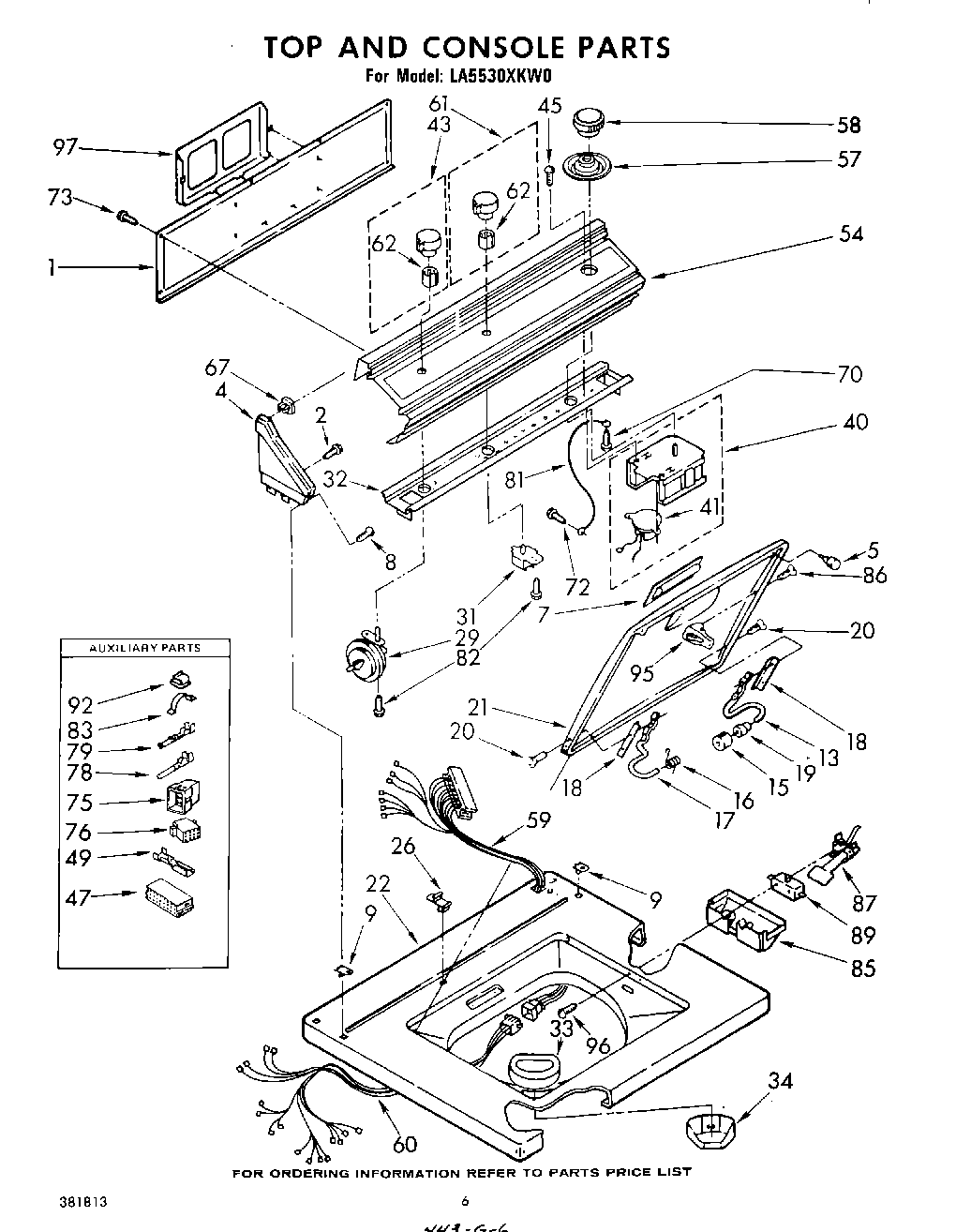

LA5530XKW0 05 – TOP AND CONSOLE

Products

PositionProduct
1Panel, Rear Console
2WPL 355326
4Cap, End L.H. (White)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Golden Harvest)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (White)
5WP9724509 Whirlpool Bumper
7Handle, Lid (White)
7Handle, Lid (Golden Harvest)
7Handle, Lid (Almond)
8Screw, 8-18 x 1 (2)
9Nut, Push-In (2)
13WP91770 Whirlpool Hinge
15Bumper, Lid Hinge
16Spring, Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
21Lid (White)
21Lid (Almond)
21Lid (Golden Harvest)
22Top (White)
22Top (Almond)
22Top (Golden Harvest)
26Stop, Push-In Top
29Switch, Water Level
31Switch, Water Temperature (Alt.)
31Switch, Water Temperature (Alt.)
32Bracket, Control
33WPL 352821
34WPL 352827
40Timer, 60 Hz. (C.C.A. (Alternate))
40Timer, 60 Hz. (Mallory (Alternate))
41Use W/C.C.A. Timer
41Motor, Timer 60 Hz.
43Knob Assembly, Water Level
45WP356418 Whirlpool Screw
47W10876590 Whirlpool Connector
49Terminal, Female
54Panel, Control
57Dial, Timer
58Knob, Timer
59WPL 359327
60Harness, Base
61Knob, Water Temperature
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
70WP3351614 Whirlpool Screw
72SCREW
73W11693756 Whirlpool Screw Assembly
75Cap, Terminal (Console Harness)
76Plug, Terminal (Cabinet Harness)
78WP596797 Whirlpool Terminal
79WP94614 Whirlpool Terminal
813184020 Whirlpool Oven Wire
82WP90767 Whirlpool Screw
838528351 Whirlpool Clip
85WP359231 Whirlpool Shield
86Screw & Washer
87Switch Actuator Assembly
89W10820036 Whirlpool Door Switch Kit
92WP90016 Whirlpool Clip
95Strike, Lid Switch
96Screw & Washer, Lid Switch (2)
97Rack, Literature
