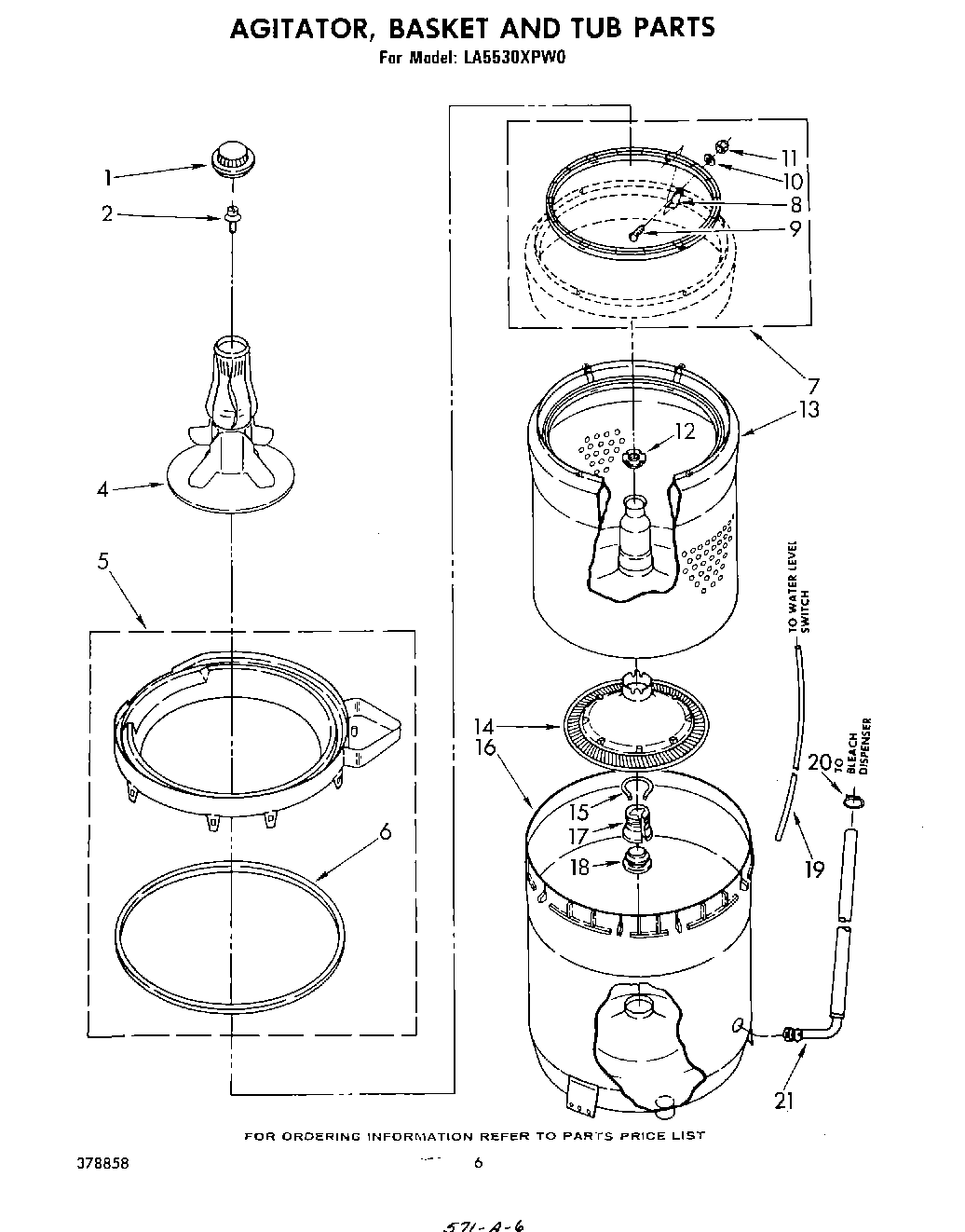

LA5530XPW0 04 – AGITATOR, BASKET AND TUB

LA5530XPW0 04 – AGITATOR, BASKET AND TUB

Written by

in

LA5530XPW0 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
4WP63235 Whirlpool Agitator Assembly
5Tub Ring & Gasket
6WP3359586 Whirlpool Tub Seal
7Clothes Guard Repair Kit
8Clip, Clothes Guard (6)
9WP486754 Whirlpool Compactor Screw
10Washer, Nylon (6)
11Locknut (6)
12WP21366 Whirlpool Spanner Nut
13Basket & Clothes Guard (Includes Illus. 7)
14285868 Whirlpool Washer Filter Plug Kit
15Lock, Filter
16Tub
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
20WP596669 Whirlpool Hose Clamp
21Hose, Bleach
