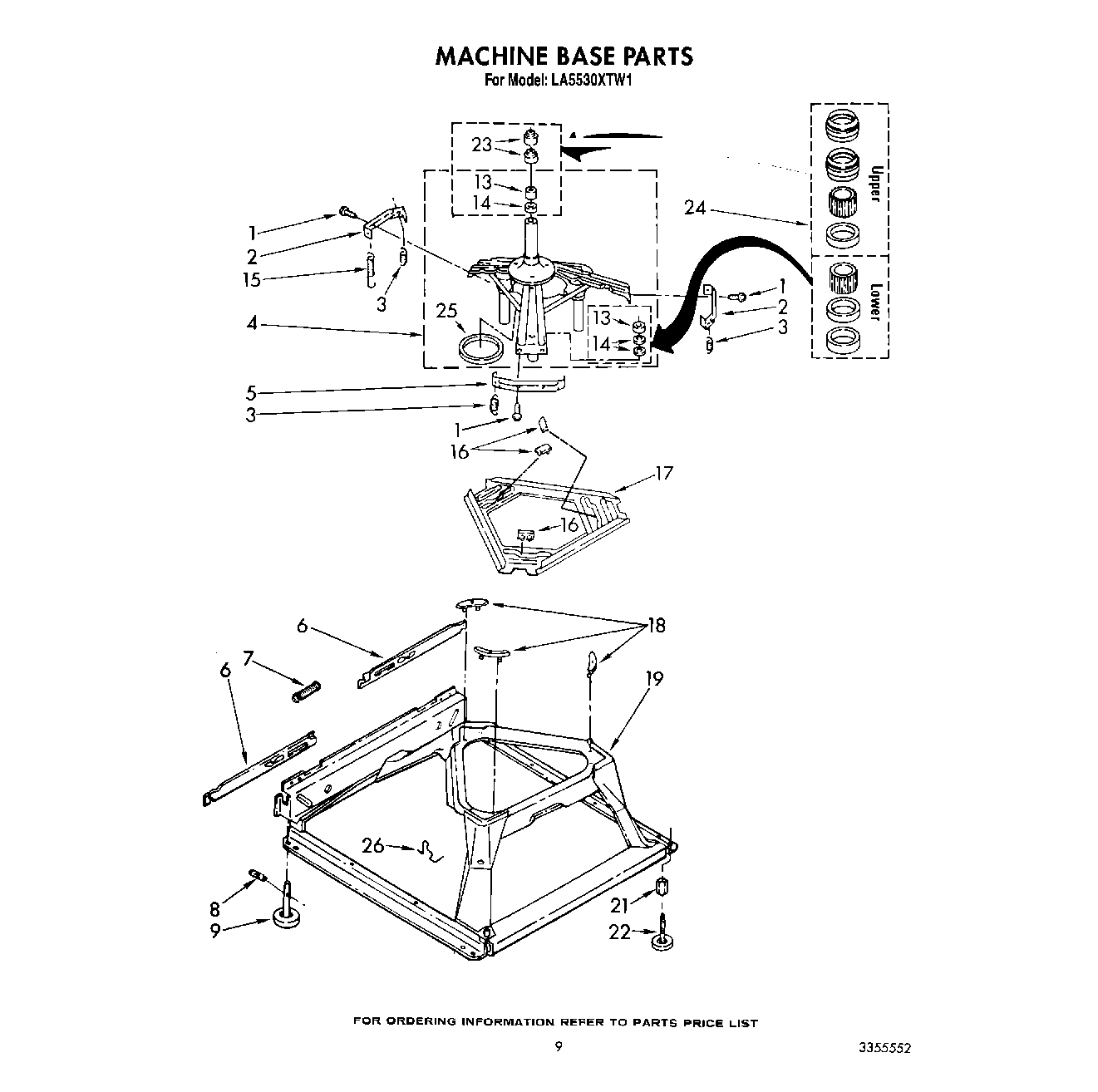

LA5530XTW1 08 – MACHINE BASE

LA5530XTW1 08 – MACHINE BASE

Written by

in

LA5530XTW1 08 – MACHINE BASE

Products

PositionProduct
1WP273556 Whirlpool Screw
2WP64067 Whirlpool Bracket
3WP63907 Whirlpool Washer Suspension Spring
4Support & Brake, Tub
5Bracket, Spring Outer (L.F.)
6Link, Leveling Mechanism (2)
78316845 Whirlpool Washer Spring
8WP62837 Whirlpool Dowel Pin
9285244 Whirlpool Leveling Feet
13WP8546455 Whirlpool Bearing
14W11095997 Whirlpool Seal
15WPW10250667 Whirlpool Washer Suspension Spring
16285219 Whirlpool Washer Suspension Plate Friction Pads 3 Pack
17WP3946509 Whirlpool Skate Plate
18285744 Whirlpool Washer Tub Suspension Rod Kit Pad 3 Pack
19Base Assembly (Includes Illus, 6, 7, 8, 9, 18 & 26)
21WP62739 Whirlpool Nut
22WPW10001130 Whirlpool Leveling Leg
23WP8577376 Whirlpool Seal
24285203 Whirlpool CP Bearing
25WP63134 Whirlpool Ring
26WPW10145155 Whirlpool Retainer
