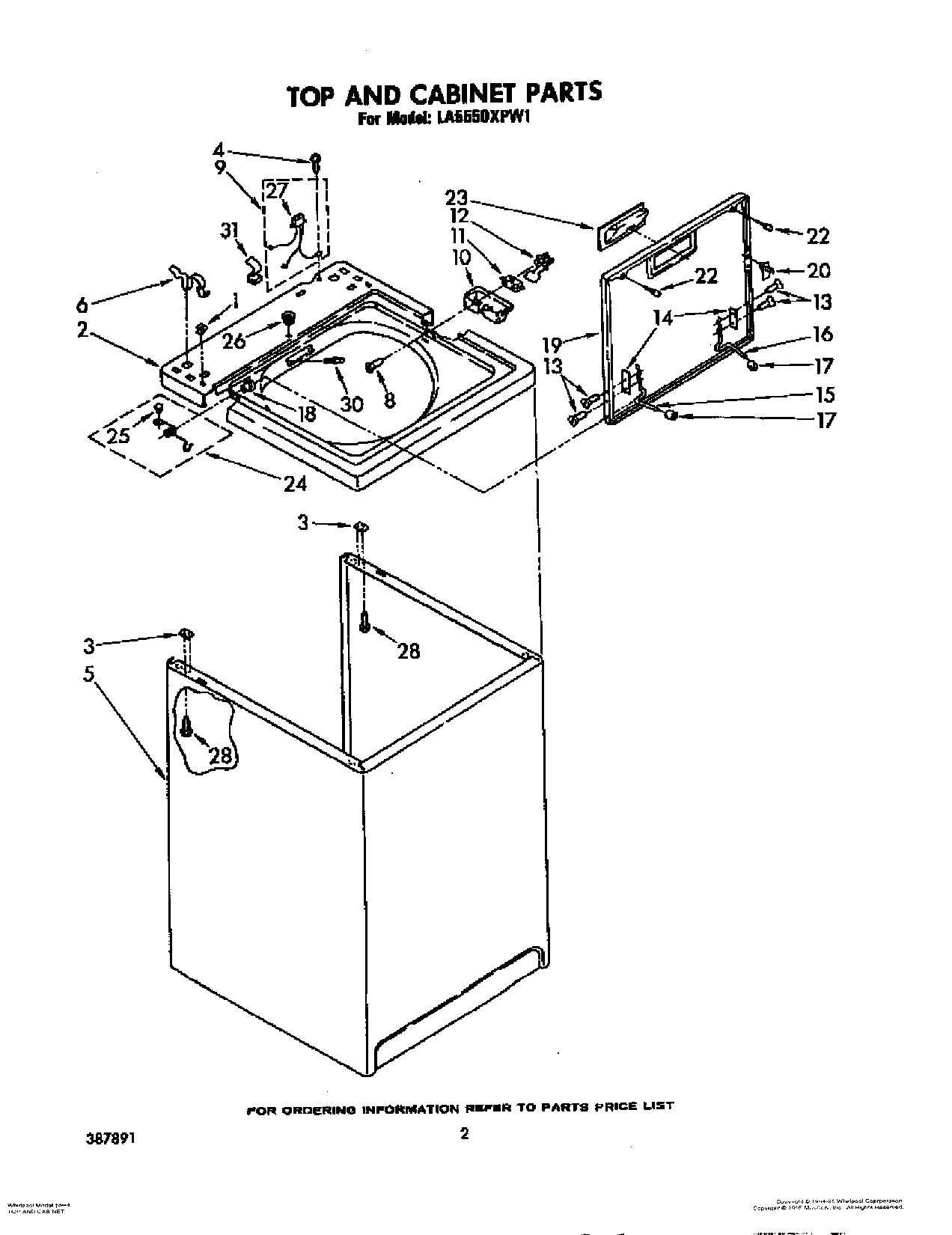

LA5550XPW1 02 – TOP AND CABINET, LIT/OPTIONAL

LA5550XPW1 02 – TOP AND CABINET, LIT/OPTIONAL

Written by

in

LA5550XPW1 02 – TOP AND CABINET, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Toast
Paint, Spray (13 Oz.) (Platinum)
WPL LIT386192
Platinum (Uncut)
WPL 72112
Lubricant (use only in brake shoe assembly on roller & pin)
WPL LIT383979
WPL LIT387891
WPL LIT385238
WPL 261880
WP285195 Whirlpool Sealer Assembly
Golden Harvest (Uncut)
WPL LIT385044
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
Leveler (Thinner)
WP72107 Whirlpool Touchup
Almond (Uncut)
Enamal, Toast (1 Qt. Uncut)
350572 Whirlpool Oil Transmission 15 Oz
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
1Nut, Push-In (2)
2Top (Almond)
2Top (Toast)
2Top (Platinum)
2Top (Golden Harvest)
2Top (White)
3WP62750 Whirlpool Spacer
5Cabinet (Golden Harvest)
5Cabinet (Platinum)
563424 Whirlpool Cabinet Assembly
5Cabinet (Almond)
5Cabinet (Toast)
6WP62780 Whirlpool Cabinet Clip
8Screw & Washer, Lid Switch (2)
9Harness, Lid Switch
10WP359231 Whirlpool Shield
11W10820036 Whirlpool Door Switch Kit
12Actuator, Lid Switch
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Almond)
19Lid (White)
19Lid (Golden Harvest)
19Lid (Platinum)
19Lid (Toast)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
23Handle, Lid (Golden Harvest)
23Handle, Lid (Toast)
23Handle, Lid (Platinum)
23Handle, Lid (Almond)
23Handle, Lid (White)
24Spring & Button, Lid ((L.H.))
24Spring & Button, Lid ((R.H.))
25Plug, Button
26Stop, Push-In Top
27Plug, Terminal (3-Way)
28SCREW
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
