LA5550XPW8 02 – TOP AND CABINET, LIT/OPTIONAL

LA5550XPW8 02 – TOP AND CABINET, LIT/OPTIONAL

Written by

in

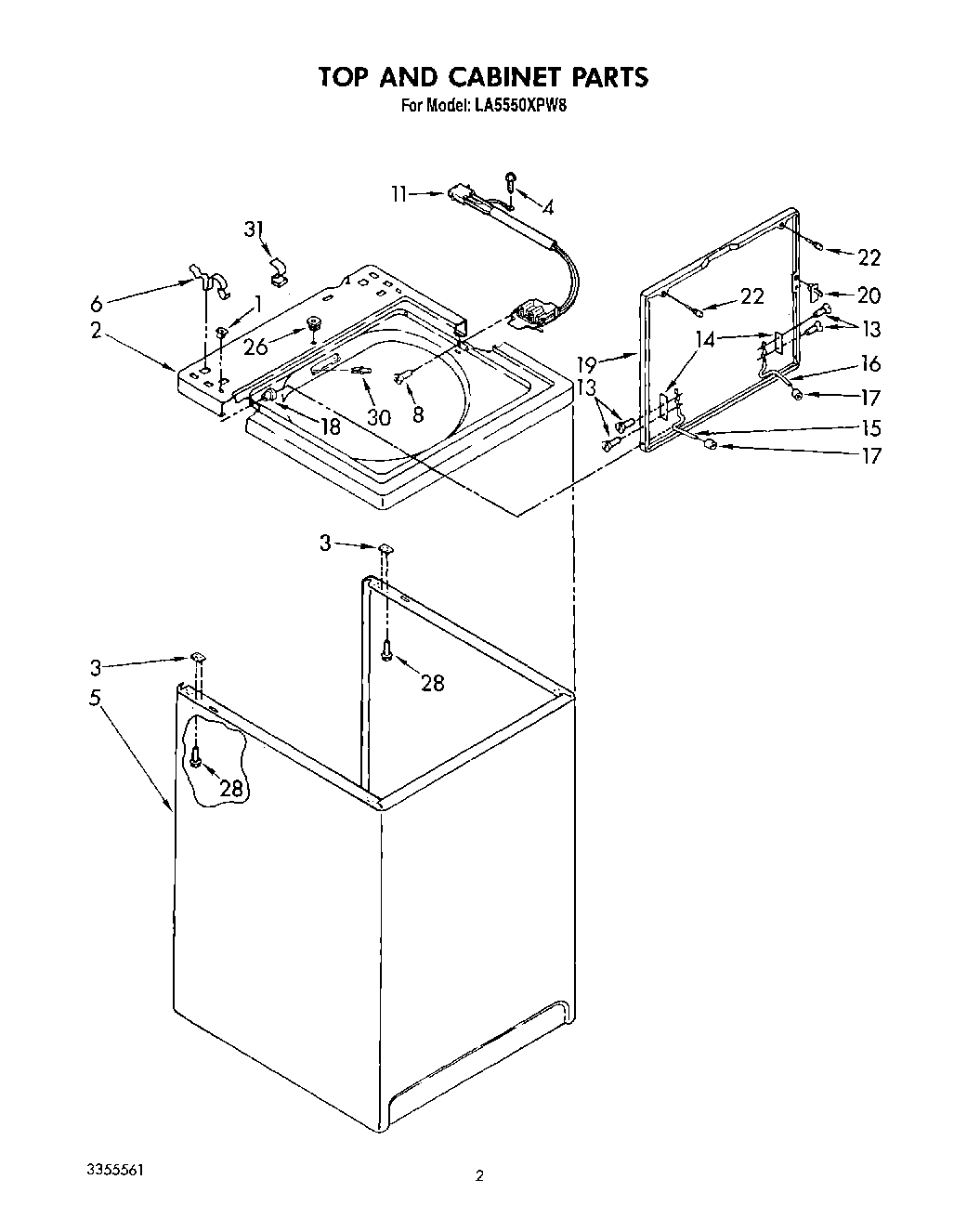

LA5550XPW8 02 – TOP AND CABINET, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
Shipping Kit
WPL 72112
WPL 89121
WPL LIT3347284
WPL LIT385238
WPL LIT3347015
WPL LIT3356183
WP285195 Whirlpool Sealer Assembly
Golden Harvest
WPL LIT3347989
72113 Whirlpool Touch-Up Paint
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
Leveler (Thinner)
Almond (Uncut)
WPL LIT3355561
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
63580 Whirlpool Washer Fabric Softener Dispenser
350572 Whirlpool Oil Transmission 15 Oz
Drain Protector (Not Included)
285320 Whirlpool Washer Siphon Break Kit
1Nut, Push-In (2)
2Top (Golden Harvest)
2Top (Platinum)
2top (toast)
2Top (Almond)
2top (white)
3WP62750 Whirlpool Spacer
5Cabinet (Almond)
5Cabinet (Golden Harvest)
5Cabinet (Toast)
563424 Whirlpool Cabinet Assembly
5Cabinet (Platinum)
6WP62780 Whirlpool Cabinet Clip
8WP3356311 Whirlpool Screw
11285671 Whirlpool Lid Switch Assembly
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Toast)
19Lid (Platinum)
19Lid (White)
19Lid (Almond)
19Lid (Golden Harvest)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
26Stop, Push-In Top
28SCREW
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
