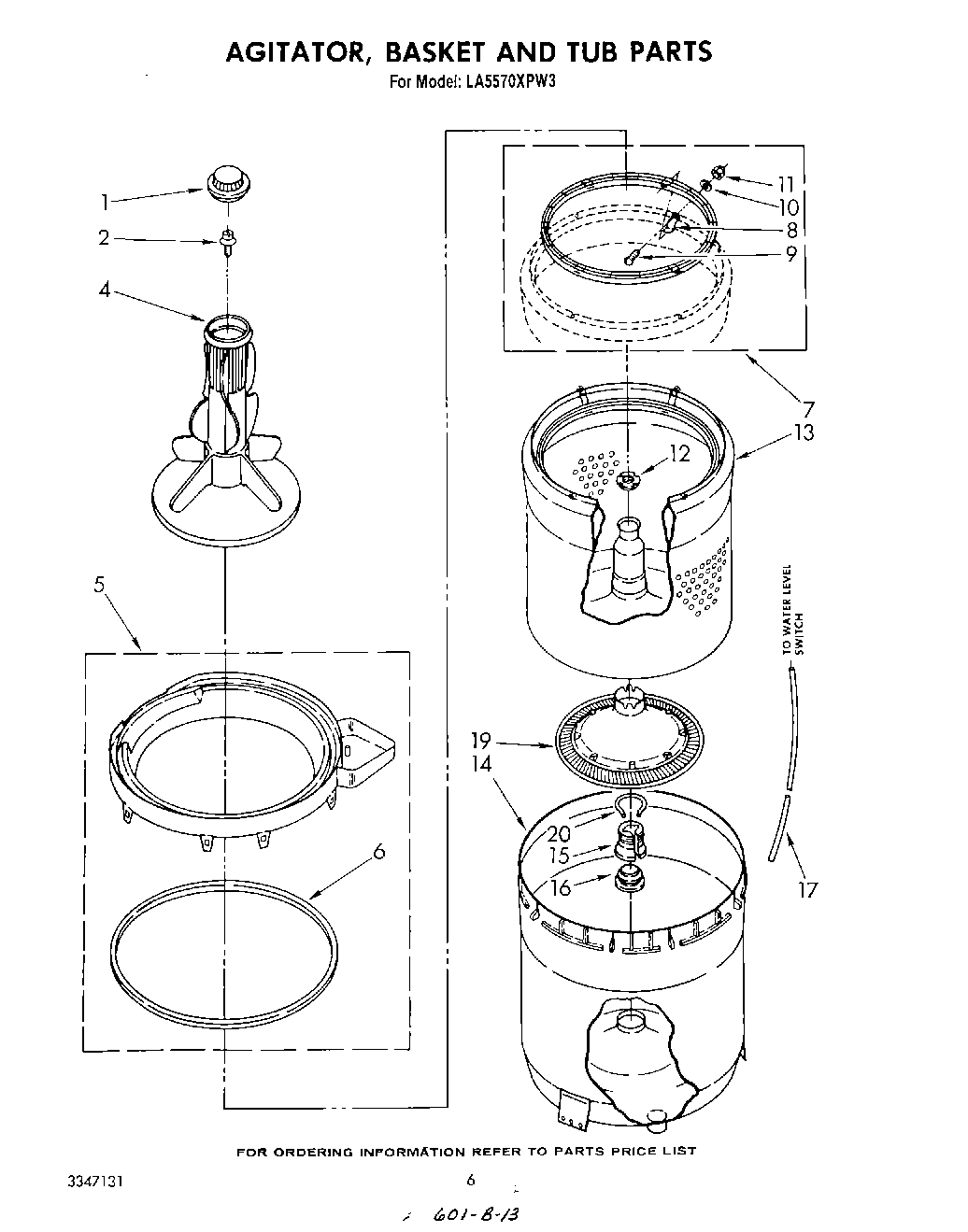

LA5570XPW3 04 – AGITATOR, BASKET AND TUB

Products

Position	Product
1	WP3355758 Whirlpool Agitator Cap
2	WP358237 Whirlpool Agitator Bolt
4	WP63235 Whirlpool Agitator Assembly
5	Tub Ring & Gasket
6	WP3359586 Whirlpool Tub Seal
7	Clothes Guard Repair Kit
8	Clip, Clothes Guard (6)
9	WP486754 Whirlpool Compactor Screw
10	Washer, Nylon (6)
11	Locknut (6)
12	WP21366 Whirlpool Spanner Nut
13	Basket & Clothes Guard (Includes Illus. 7)
14	Tub
15	WP389140 Whirlpool Drive Block or Bell
16	W10814296 Whirlpool Washer Center Post Seal Gasket
17	WP353244 Whirlpool Hose
19	285868 Whirlpool Washer Filter Plug Kit
20	Lock, Filter
