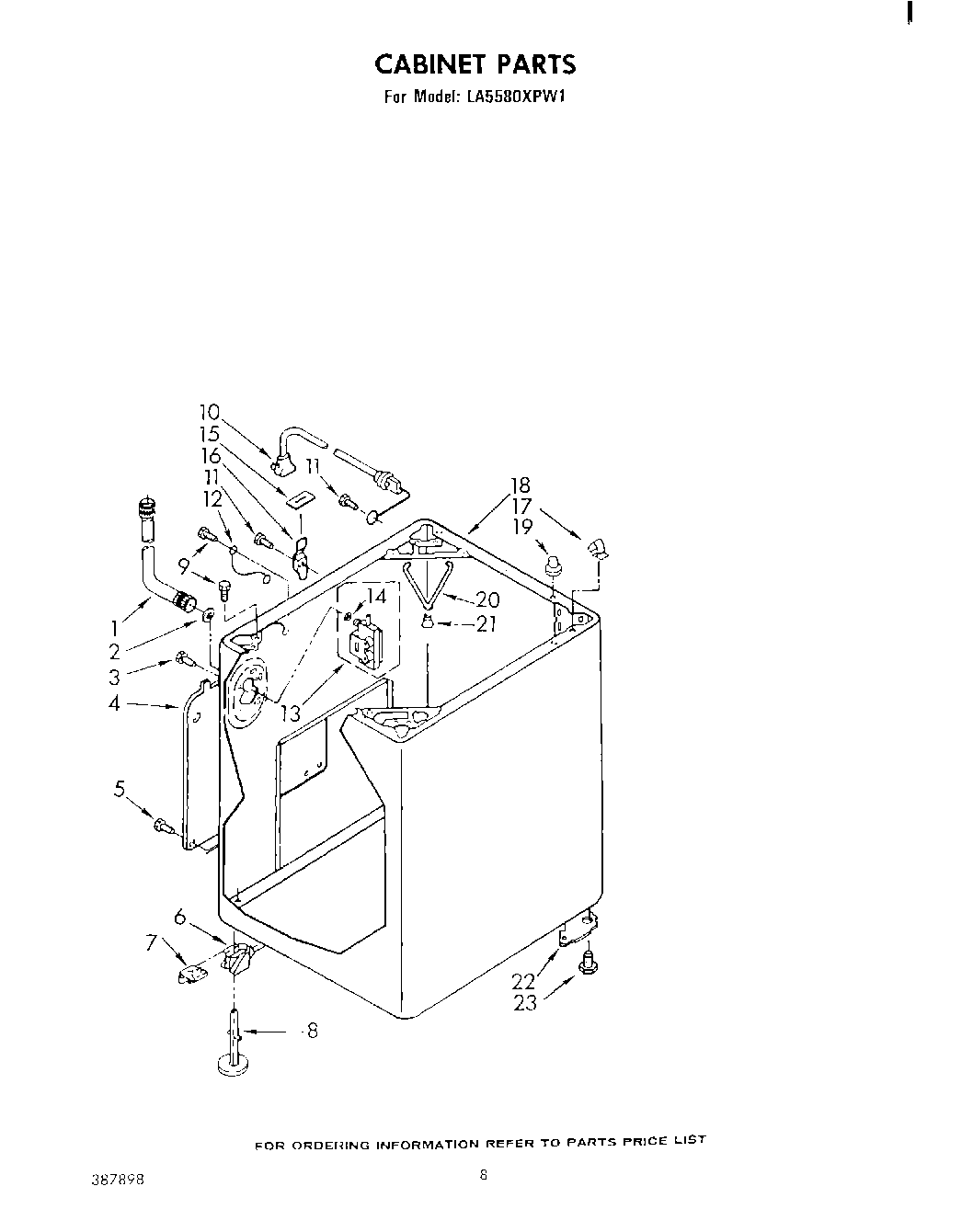

LA5580XPW1 05 – CABINET

LA5580XPW1 05 – CABINET

Written by

in

LA5580XPW1 05 – CABINET

Products

PositionProduct
1WP89503 Whirlpool Washer Fill Hose
2WP16123 Whirlpool Washer
3WP3390631 Whirlpool Screw
4Panel, Rear
6Link, Leveling
7WP359364 Whirlpool Clip
8WP358594 Whirlpool Leveling Feet
10Cord, Power (60 Hz.)
11SCREW
12WPL 364089
13Valve, Mixing (Alt.)
13Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
13Valve, Mixing (358277) (Alt.) (358971) (Alt.) (Serviced Only As Complete Assemblies)
14WP96160 Whirlpool Washer Inlet Valve Screen
1518849 Whirlpool Pad
16Hinge, L.H.
16Hinge, R.H.
17WP18776 Whirlpool Lock
18Cabinet
18Cabinet (Toast)
18Cabinet (Golden Harvest)
18Cabinet (Platinum)
18Cabinet (Almond)
19Locator, Top
20Spring, Snubber
21Pad, Snubber
22Plate, Gusset
23WP367594 Whirlpool Leveling Feet
