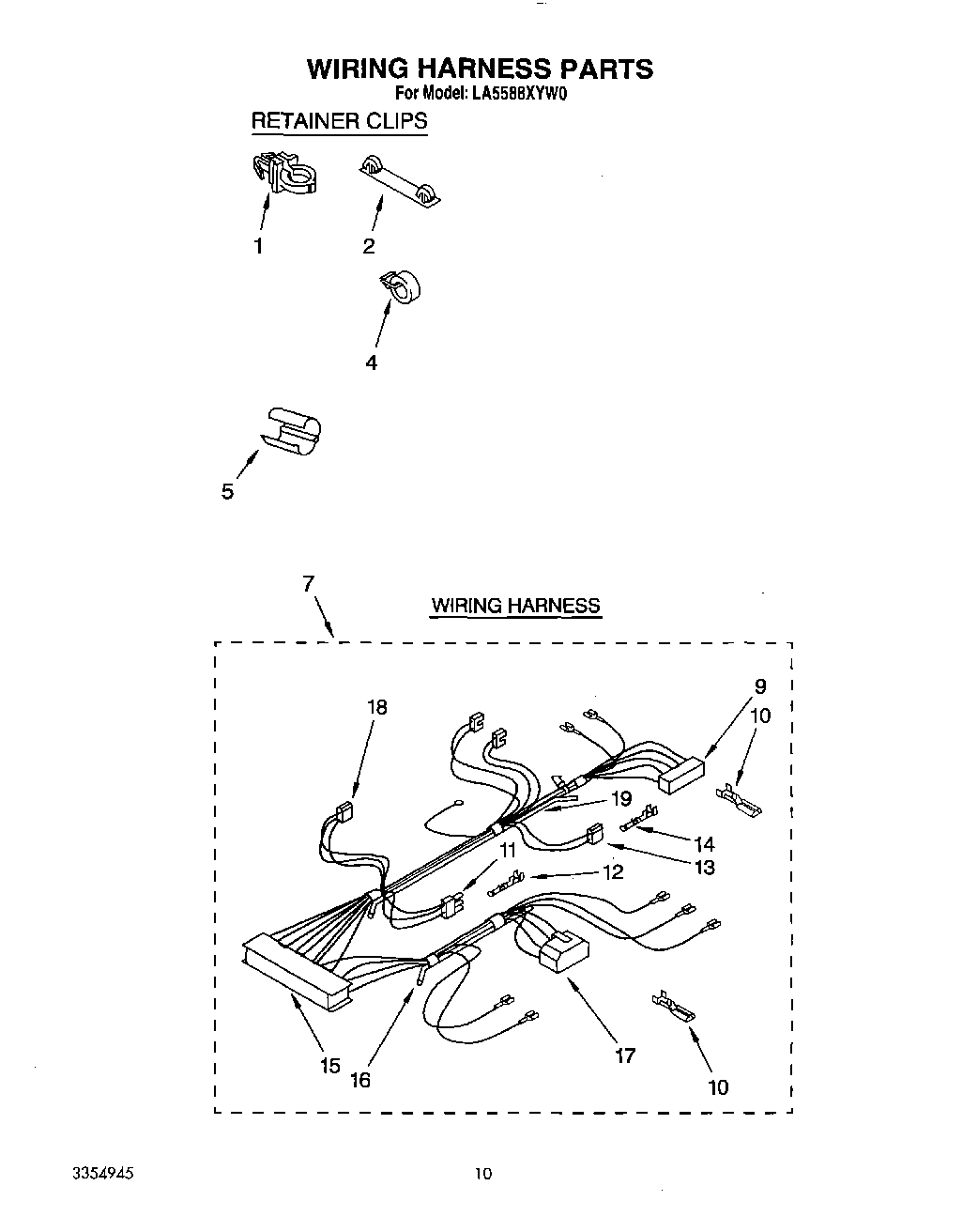

LA5588XYN0 09 – WIRING HARNESS

Products

Position	Product
1	Clip, Harness
2	WP389379 Whirlpool Retainer
4	8559320 Whirlpool Clip
5	Protector, Harness
7	Wiring Harness & Pressure Switch Hose
9	W10876590 Whirlpool Connector
10	Terminal
11	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
12	WP94614 Whirlpool Terminal
13	353424 Whirlpool Connector
14	WP596797 Whirlpool Terminal
15	WP62505 Whirlpool Connector
17	Block, Disconnect
18	Receptacle, Latching (2-Way) (Uses Terminal 94614)
19	WP353244 Whirlpool Hose
