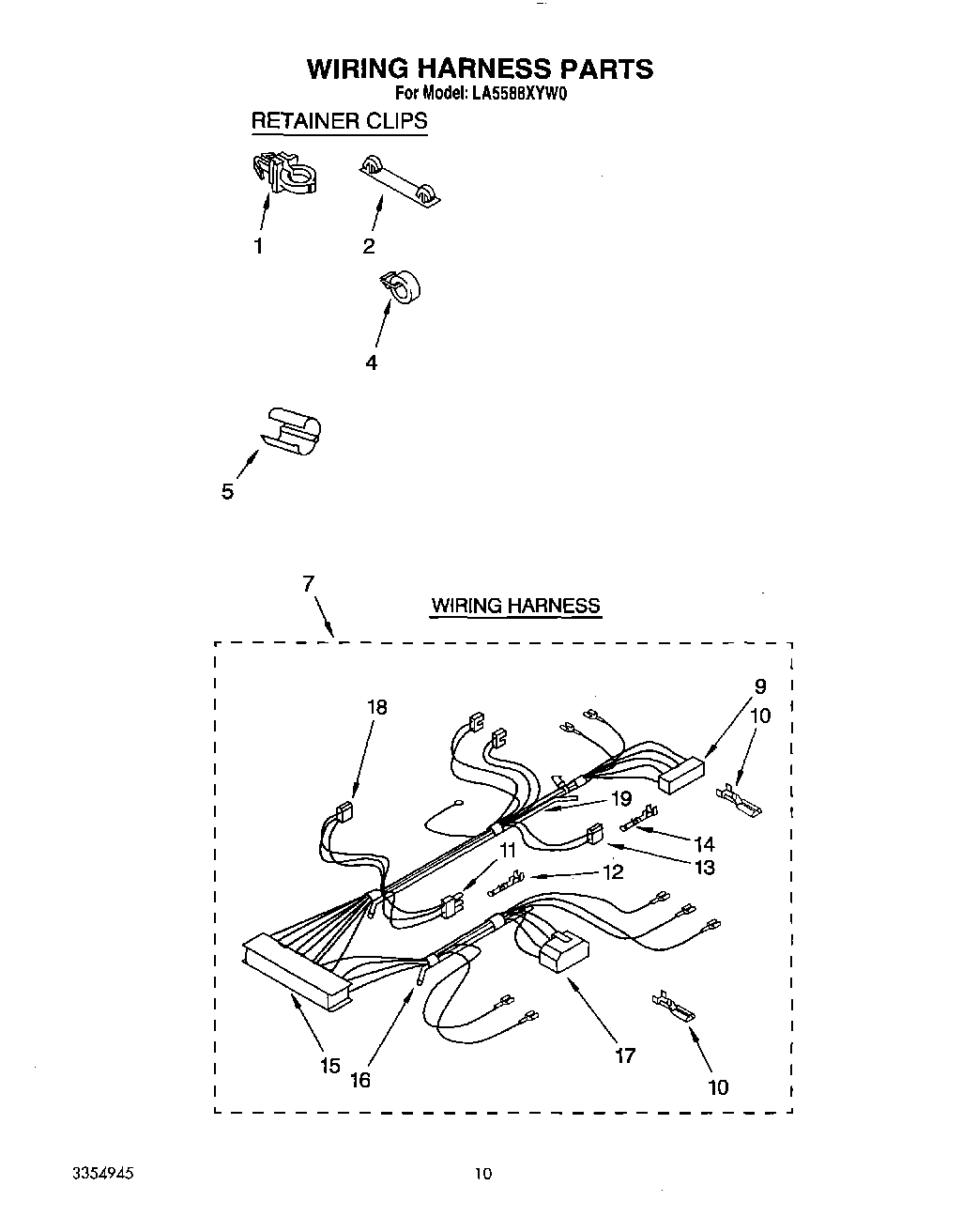

LA5588XYW0 09 – WIRING HARNESS

LA5588XYW0 09 – WIRING HARNESS

Written by

in

LA5588XYW0 09 – WIRING HARNESS

Products

PositionProduct
1Clip, Harness
2WP389379 Whirlpool Retainer
48559320 Whirlpool Clip
5Protector, Harness
7Wiring Harness & Pressure Switch Hose
9W10876590 Whirlpool Connector
10Terminal
11WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
12WP94614 Whirlpool Terminal
13353424 Whirlpool Connector
14WP596797 Whirlpool Terminal
15WP62505 Whirlpool Connector
17Block, Disconnect
18Receptacle, Latching (2-Way) (Uses Terminal 94614)
19WP353244 Whirlpool Hose
