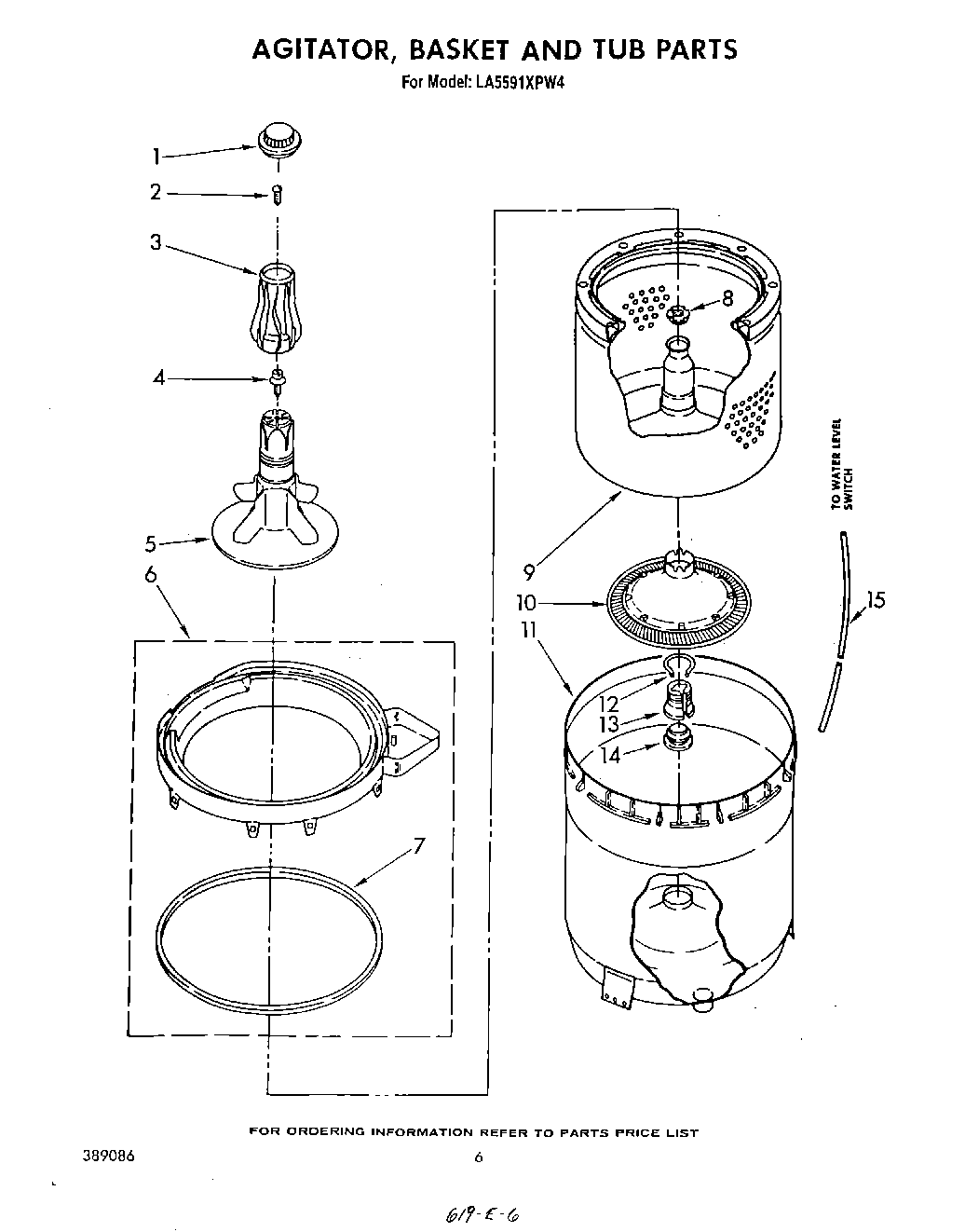

LA5591XPW4 04 – AGITATOR, BASKET AND TUB

LA5591XPW4 04 – AGITATOR, BASKET AND TUB

Written by

in

LA5591XPW4 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WPW10109200 Whirlpool Screw
3Filter, Manual
4WP358237 Whirlpool Agitator Bolt
5Agitator
6W10880720 Whirlpool Tub Ring
7WP3976308 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9W10389328 Whirlpool Basket
10285868 Whirlpool Washer Filter Plug Kit
1163849 Whirlpool Outer Tub Primary Assembly
12Lock, Filter
13WP389140 Whirlpool Drive Block or Bell
14W10814296 Whirlpool Washer Center Post Seal Gasket
15WP353244 Whirlpool Hose
