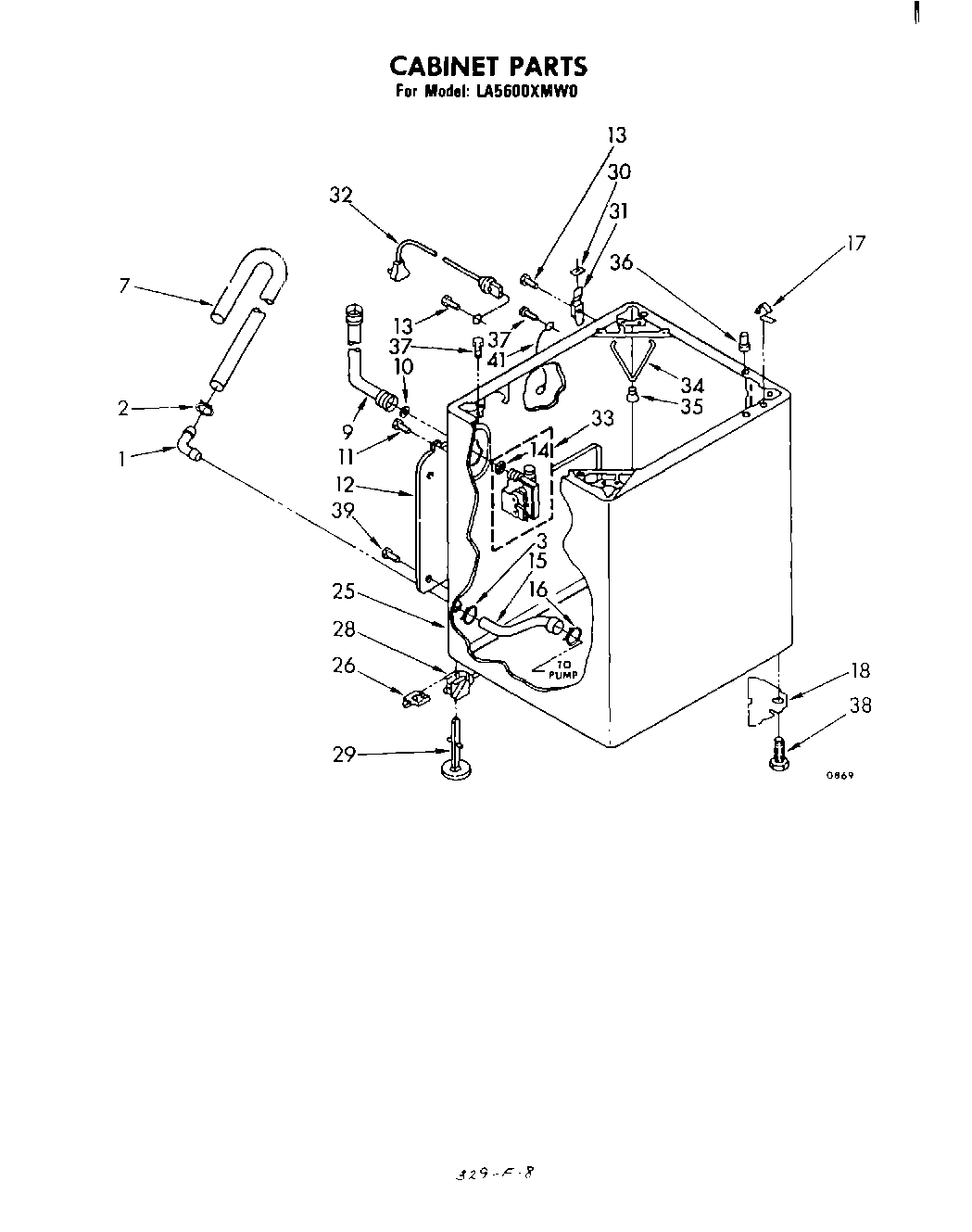

LA5600XMW0 06 – CABINET

LA5600XMW0 06 – CABINET

Written by

in

LA5600XMW0 06 – CABINET

Products

PositionProduct
1Connector, Hose
2WP356138 Whirlpool Hose Clamp
7WP96743 Whirlpool Hose
9WP89503 Whirlpool Washer Fill Hose
10WP16123 Whirlpool Washer
11WP3351614 Whirlpool Screw
12Panel, Rear
13SCREW
14WP96160 Whirlpool Washer Inlet Valve Screen
15Hose, Pump Discharge
16WP285655 Whirlpool Hose Clamp
17WP18776 Whirlpool Lock
18Plate, Gusset
25Cabinet
25Cabinet (Almond)
25Cabinet (Golden Harvest)
26WP359364 Whirlpool Clip
28Link, Leveling
29WP358594 Whirlpool Leveling Feet
3018849 Whirlpool Pad
31Hinge, R.H.
31Hinge, L.H.
32Cord, Power (60 Hz.)
33Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
33Valve, Mixing (Alt.)
33Valve, Mixing (358277) (Alt.) (358971) (Alt.) (Serviced Only As Complete Assemblies)
34Spring, Snubber
35Pad, Snubber
36Locator, Top
38WP367594 Whirlpool Leveling Feet
41WPL 364089
